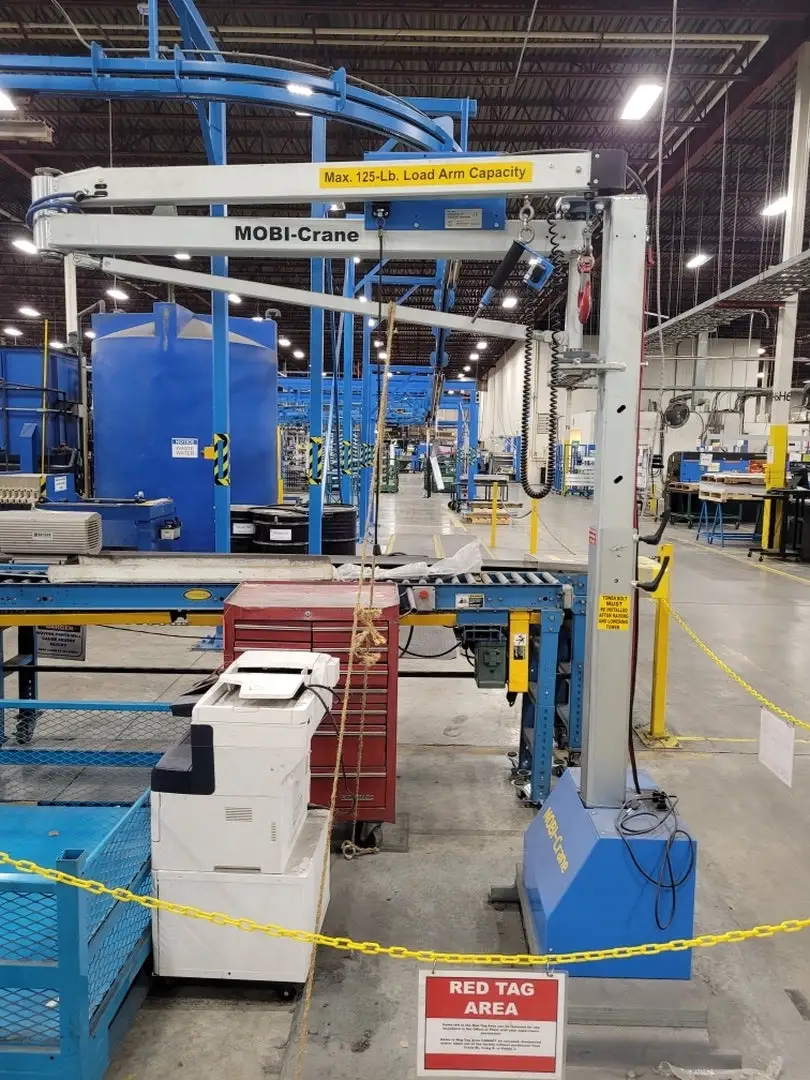

USED 2016 RONI MOBI

Max. Lift Capacity: 125 lb
Jib Mount: Floor Mount
2016 MOBI-030180 0027-68613 Application Pickup various size light fixtures and load these into shipping cases. Cases will be loaded differently for load orientation and weight balancing.
Load Light Fixtures High Focus Product: 21.25" W x 26.25" L x 14.25" T #44 - #75
Case Size: 24.6" D x 31.25" W x 16.75" T
Case Clearance: 5.5" either side Case Stack (3) levels high (59.75") and (2) rows deep on a 40" x 49" pallet
PowerForm Product: 23.5" W x 31.5" L x XX" T #56 - #100
Case Size: 27.5" W x 49.75" L x 11.7" T
Case Clearance: 1.5" either side Case Stack (3) levels high (40.6") and a single row on a 40" x 49" pallet
Pickup Conveyor: 35" elevation
MOBI-Crane Characteristics:
Base Plate Mobile 4' - 11" Diameter Steel (Zinc Electroplating)
Movement Capacity 10' - 0" (2m) Arm length Radius Adjustable Height column 6'-0" - 9'- 0" #110
End Effector Chain Hook for spreader and sling OR Electro/pneumatic Gripper
Lift Speed Adjustable by Variable Speed Joystick on MOBI-Crane control handle Up to 13"/Sec
Plant Air Requirements 100-110 PSI @16 CFM
Hand Control Variable Speed
Power Requirements 110V AC, 60 Hz or 24 VDC battery operated
Noise Level <64dB(A)
Total Weight Approximately 1,250 lbs. w/o end-effecter
