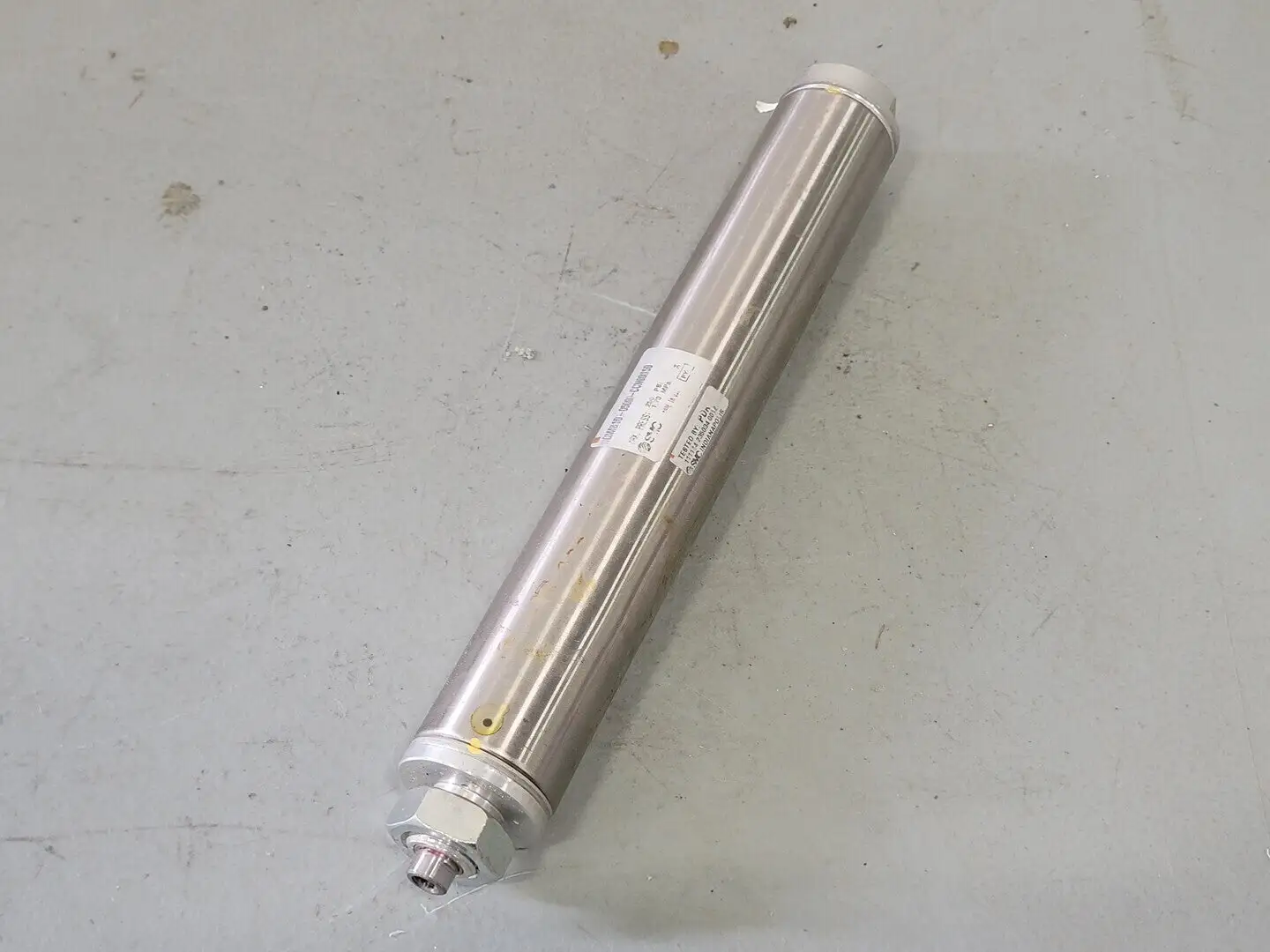

USED SMC NCMB150-0500C

Bore: 1-1/2"
Stroke: 5"
PSI: 250
Rod Diameter: 7/16"
Physical Dimensions:
Bore Size: 1.50 inches (38.1 mm)
Stroke Length: 5.00 inches (127 mm)
Overall Length: Approximately 9.44 inches
Cylinder Body Diameter: 1.56 inches
Construction Materials:
Cylinder Body: Stainless Steel
Piston Rod: Stainless Steel
Rod Bushing: Bronze
Mounting Style:
Front Nose Mounting (standard)
Other options may be available separately
Operating Parameters:
Type: Double-Acting
Maximum Operating Pressure: 250 psi (1.70 MPa)
Minimum Operating Pressure: 8 psi
Operating Temperature Range: 40 to 140 degrees Fahrenheit (4 to 60 degrees Celsius)
Push Force at 100 psi: Approximately 176.7 pounds-force
Pull Force at 100 psi: Approximately 161.7 pounds-force
Ports and Threading:
Port Size: 1/8 inch NPT Female
Rod End Thread: 7/16-20 UNF Male
