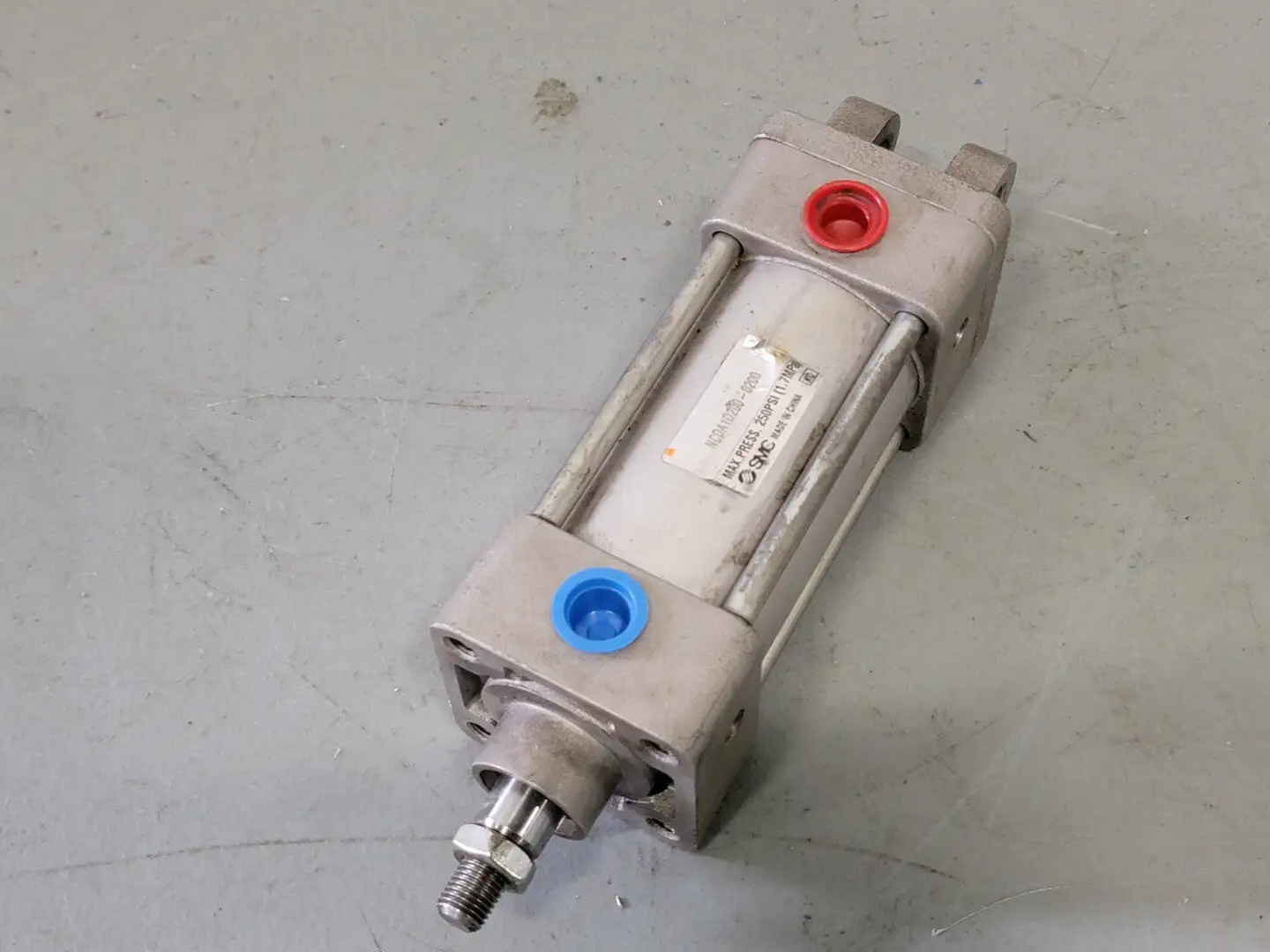

USED SMC NCDA1D200-0200

Bore: 2"
Stroke: 2"
PSI: 250
Rod Diameter: 5/8"
Series: NCA1 (medium-duty, NFPA interchange)
Model: NCDA1D200-0200 (double-acting, single-rod tie-rod design)
Bore Size: 2 in (50 mm)
Standard Stroke: 2 in
Cushion: Air cushion on both ends (adjustable)
Construction: Tie-rod cylinder, crimped piston rod, pre-lubricated
Auto Switch Option: Magnetic piston (auto-switch capable)
Mounting Style: Double detachable rear clevis (MP2)
Max Operating Pressure: 250 psi (1.7 MPa)
Rod Construction: Standard rod; optional oversized or stainless steel
Temperature Range/Options: Custom options available: cold-resistant, heat-resistant, low-speed, fluororubber seal, rod boot, scraper, special ports
