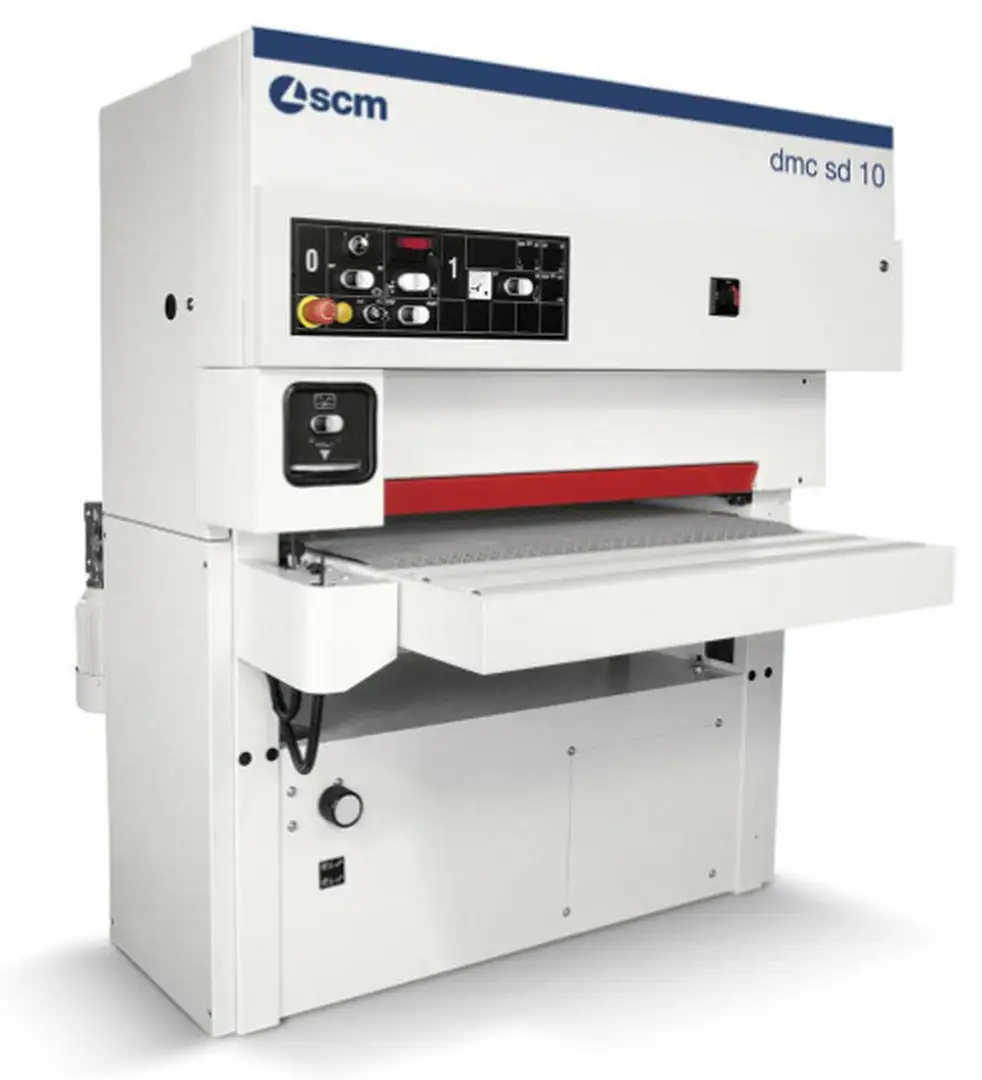

NEW SCM DMC SD 10

Horsepower: 15 hp
Max. Workpiece Width: 37.4 "
Max. Workpiece Thickness: 6.7 "
Type: Belt
Voltage: 600 volts
Phase: 3-phase
Number of Heads: 1
Min. Working Thickness: 4 mm
Sanding Belt Width: 970 mm
Sanding Belt Length: 1525 mm
Feed Belt Motor Power: 0.3 / 0.55 kW (0.4 / 0.7 hp)
Feed Belt Speed: 4.5 - 9 m/min
dmc sd 10 composition CS 95
SINGLE COMBINED UNIT "CS" equipped with:
'CR/120' roller, 120 mm diameter:
85 SH rubber coated roller
manual adjustment of working height
'TRP/I' flat stiff pad made of an extractable bar with felt contact insert density D=0.68:
manual adjustment of working height
glued graphite cloth
"TSP/I" Semi-stiff flat pad
For the sanding of veneered panels
The pad is made of an extractable bar with rubber contact insert + felt density D=0.68
Additional Features
Automatic start-delta-start on main motor
2 infeed support rollers and two outfeed support rollers
Electronic positioning for working table
Electronic readout in "inches"
Pallet + nylon
English machine plate
