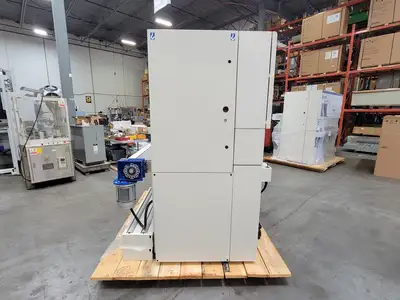

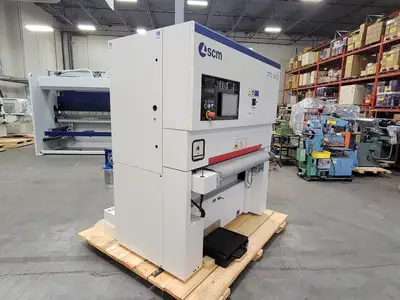

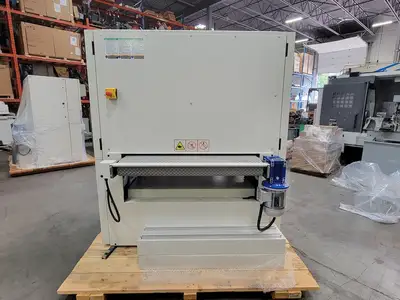

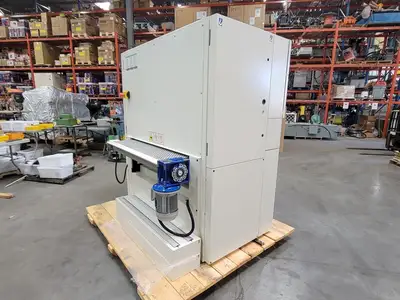

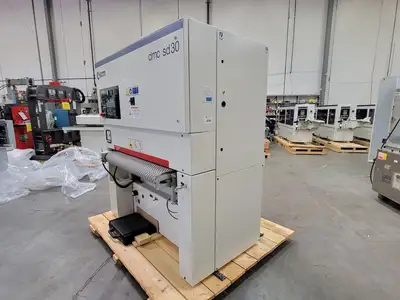

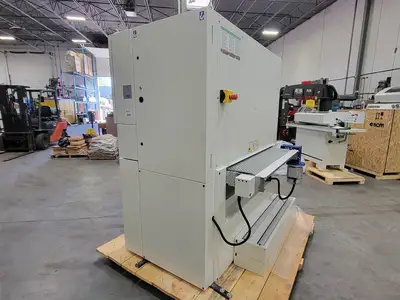

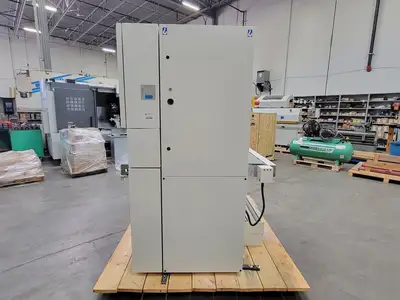

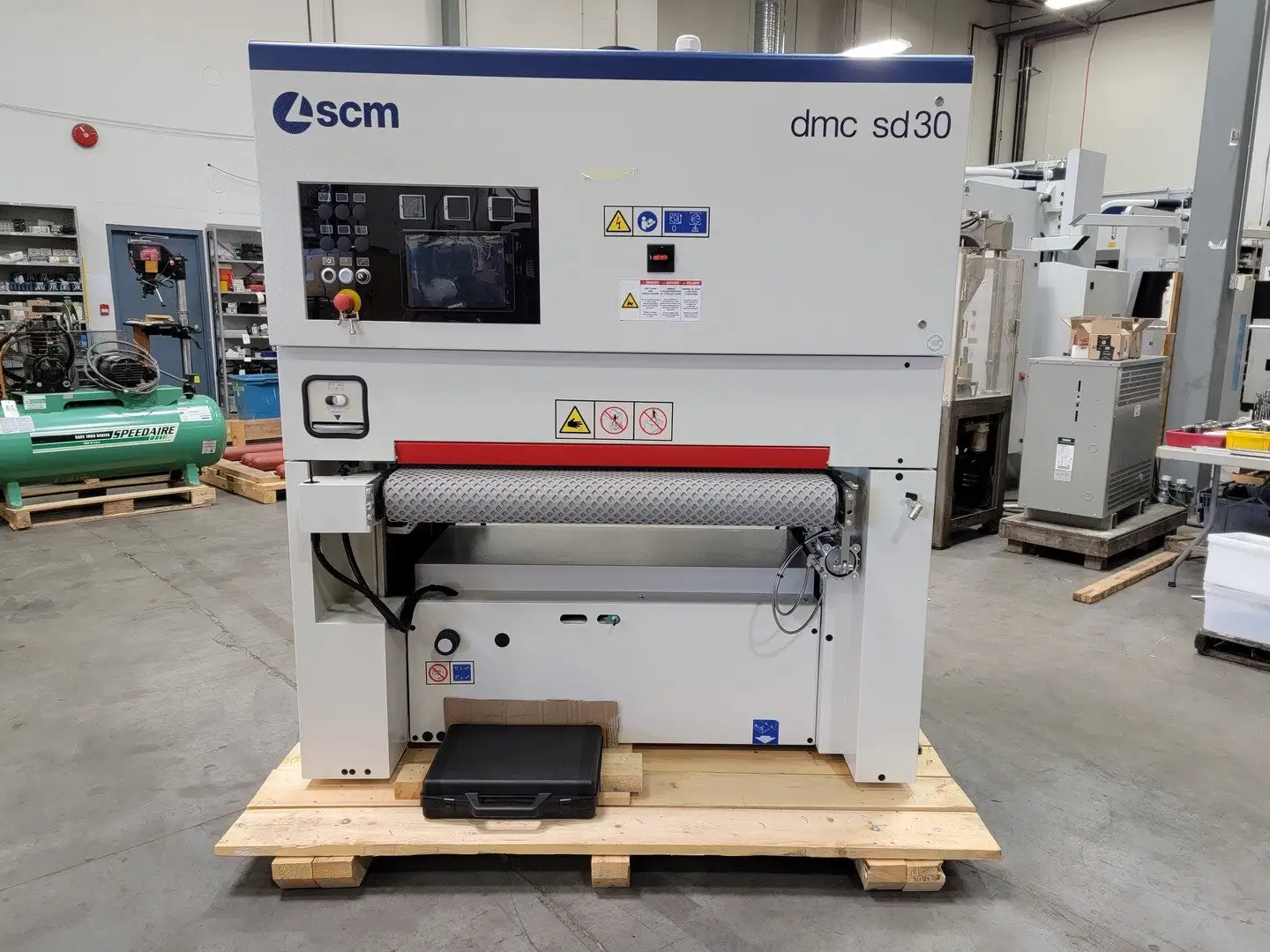

NEW SCM DMC SD 30

Horsepower: 20 hp
Max. Workpiece Width: 43.3 "
Max. Workpiece Thickness: 6.7 "
Type: Belt
Voltage: 600 volts
Phase: 3-phase
Number of Heads: 2
Min. Working Thickness: 4 mm
Sanding Belt Width: 1115 mm
Sanding Belt Length: 1900 mm

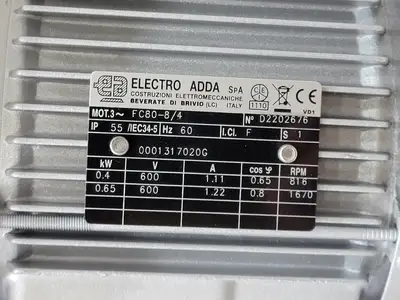

Feed Belt Motor Power: 0.3 / 0.55 kW (0.4 / 0.7 hp)
Feed Belt Speed: 4.5 - 9 m/min
dmc sd 30 composition RCS 110
With 1st "R" group (roller) and 2nd "CS" combined group (roller/pad)
"B" version for RCS 95 - RCS 110
on/off pneumatic selector of the roller on the 1st "R" group
on/off pneumatic selector of the roller on the 2nd "CS" group
"MESAR" elastic sectional pad
on/off pneumatic selector of the pad
"Logic 50 K" electronic programmer
electronic positioning for working table
All pads are also equipped with:
standard equipment complete with no. 2 contact inserts as follows:
flat semi-stiff contact insert made of steel flexible plate 0.6 mm thickness + felt D=0.68 and extractable graphite cloth. It is suitable for the sanding of solid wood or veneered panels.
soft semi-sandwich contact insert made of flexible steel plate, 0.3 mm thickness + rubber + felt D=0.68 extractable graphite cloth. It is suitable for the sanding of veneered and/or painted panels.
10" Control panel with "eye-S" integration software
For machine equipped with elastic or electronic sectional pad
10" touchscreen control panel
Machine control features:
control of 2 main operating groups
total control of one electronic sectional pad with activation, exclusion and selection of the pad. Pre-selection and activation of the + or sectors function on the left/right panel side
control of on/off of the operating groups
control of the feed by inverter
working thickness control
sequential automatic start up of main motors
blowers timing control for abrasive belts cleaning
machine control in manual or semi-automatic mode or with working programs which can be configured by the operator. Possibility to save 999 programs
machine report (working and standby hours)
machine damage alarms control
available languages: IT, EN, FR, ES, DE
Additional Features
Single-phase transformer

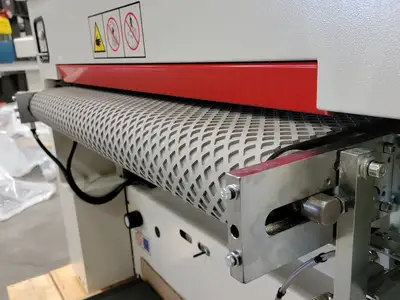

RA grooved steel calibrating roller, 1st group
Automatic device for feed belt tracking and tensioning
Pallet + nylon
French language plate
English machine plate
