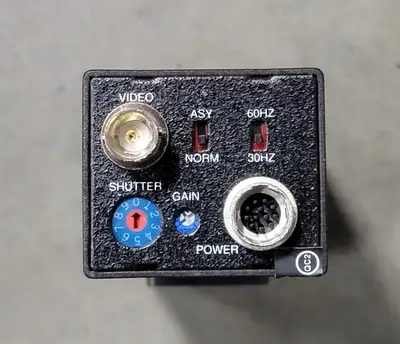

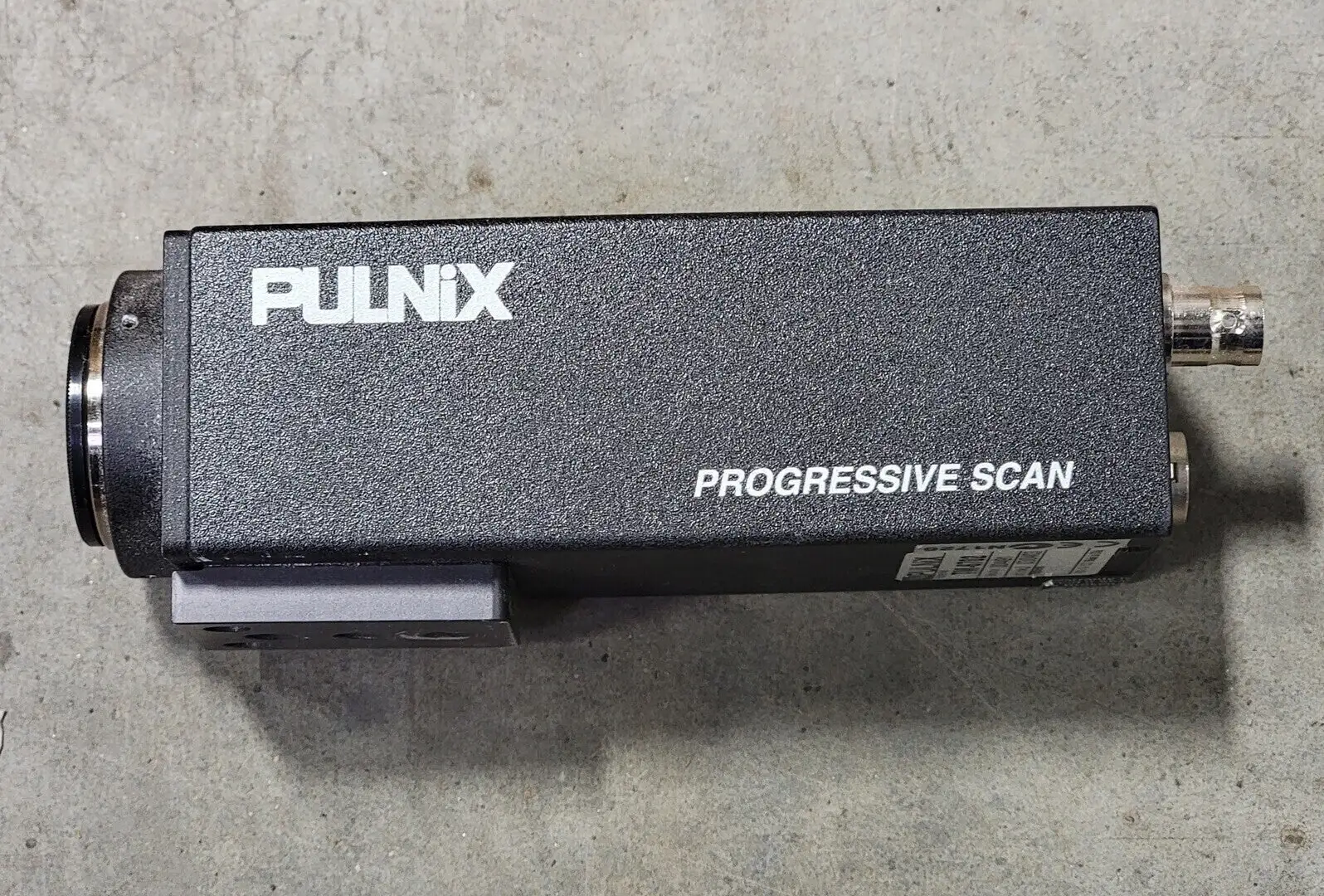

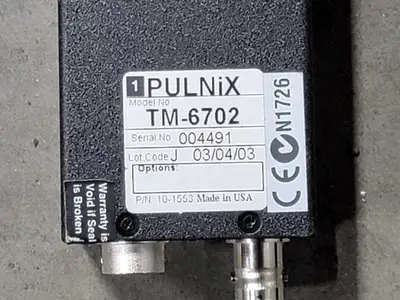

USED PULNIX TM-6702

Imager: 1/2" progressive scanning interline transfer CCD
Pixels: 648 (H) x 484 (V)
Cell Size: 9.0 um x 9.0 um square pixels
Scanning: 60 Hz (double speed) non-interlace, or 30 Hz non-interlace. 525 scanline both modes.
Sync: Internal/ External auto switch
Asynchronous Reset: Vertical scan initialization (VNIT) upon TTL trigger from external source. Black video output while VNIT is inactive. EXT. shutter speed control pulse (pulse width control).
Pixel Clock: 25.49 MHz / 12.745 MHz
TV Resolution: 500 (H) x 484 (V) lines
S/N Ratio: 50dB min. (AGC = off), 56dB min. (30Hz)
Min. Illumination: 2 lux at normal speed, 1 lux at 30Hz
Video Output: 1.0 Vp-p composite video, 75 ohm non-interlace
AGC: OFF (AGC ON is a factory option)
Gamma: 1.0 or 4.5 (1.0 STD)
Asynchronous Electronic Shutter Capability: 1-8 shutter mode switch controls exposure in periods of horizontal scan times (H), Shutter control mode 9 is controlled via external pulse width. Periods of H vary depending on scan mode. Full frame resolution per shutter.
Lens Mount: C-Mount
Power Requirement: 12V DC 400 mA
Operating Temperature: -10 deg. C to 50 deg. C
Vibration & Shock: Vibration: 7G RMS @ 10 - 2000Hz, Shock: 70G
Power Cable: 12P-02
Power Supply: K25-12V or PD-12
Auto Iris Connector: None
