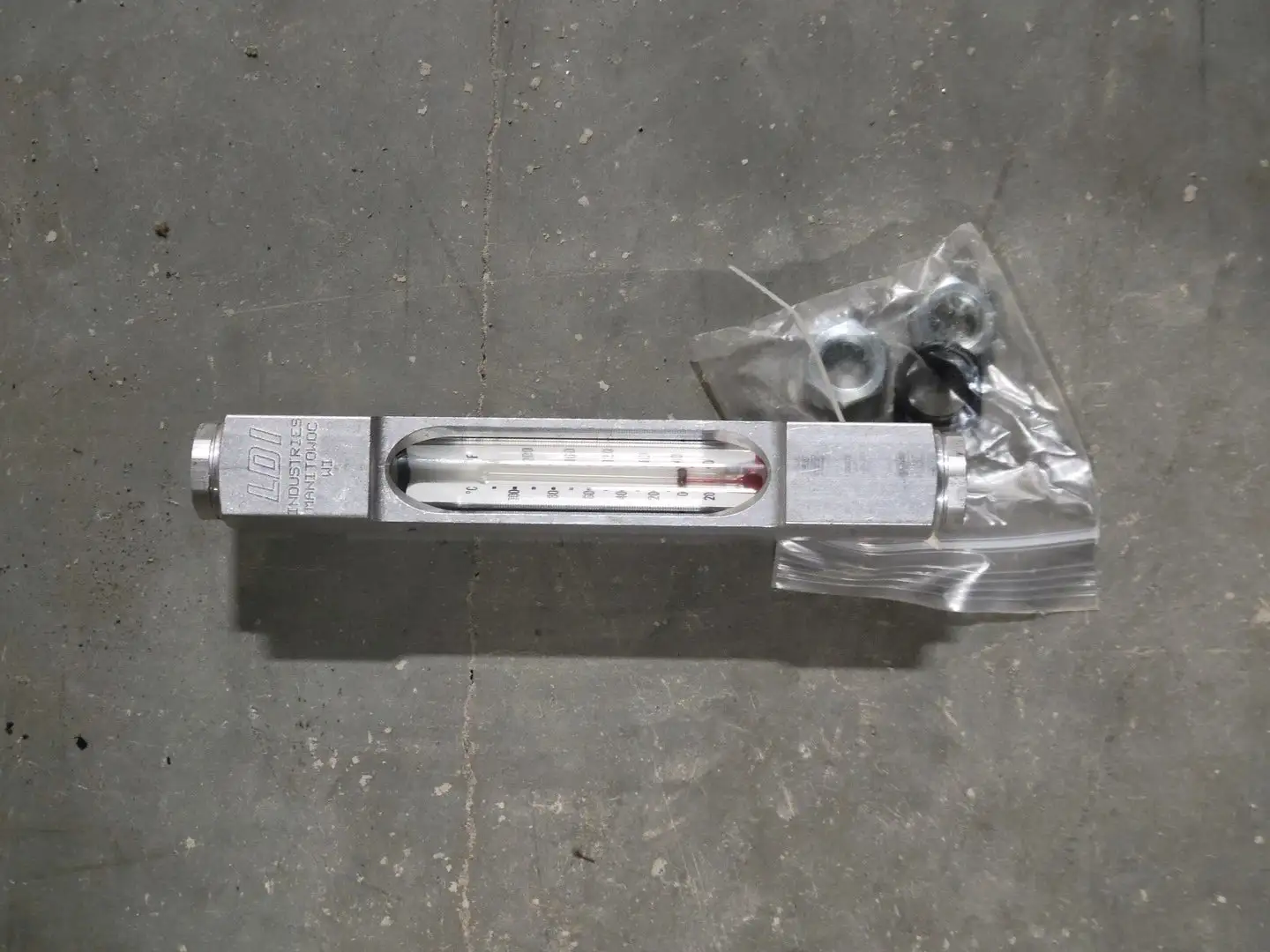

USED LDI INDUSTRIES G1620

Gauge Type: Pressure
Temperature Range: Up to 200 deg. F / Up to 100 deg. C
Pressure Rating: 20 psi (138 kPa) maximum working pressure at 150°F (65°C)
Standard Features:
-Centerline lengths of 3, 5 and 10 inches
-Back mount
-1.00 x .95 inch body machined from extruded aluminum bar stock
-Fluid level visible from front of gage (.75 inches wide)
-Clear sight glass
-Card thermometer (3.00 inch centerline only), dual scale 60° to 180°F and 20° to 80°C graduations
-Card thermometer, dual scale 0° to 220°F and -20° to 110°C graduations
-1/2-20UNF mounting studs accommodate reservoir wall thicknesses up to .75 inches
-Suitable for use with most hydraulic and machine lubricating oils
Standard Materials:
-Aluminum construction
-Buna N or Fluorocarbon (Viton) seals
-Borosilicate glass sight
-Red color alcohol within thermometer bulb
-Zinc plated, steel hex nuts
