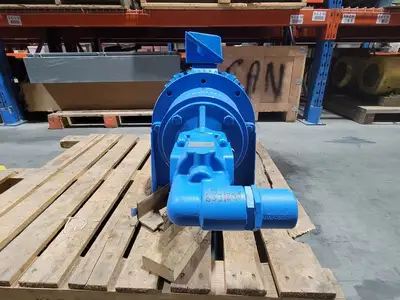

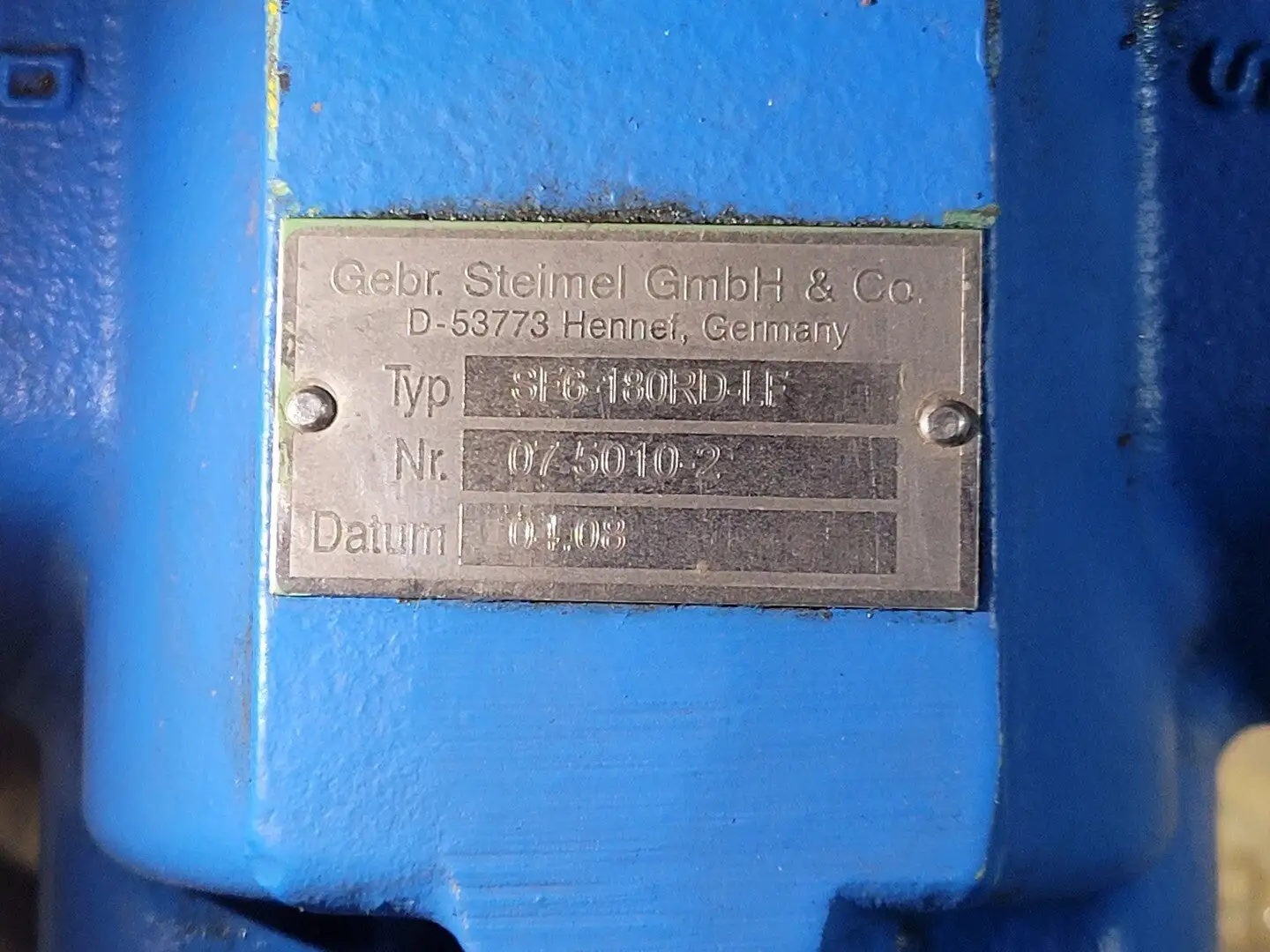

USED STEIMEL SF6-180RD-LF

Type: Gear Pump
Series: SF
Displacement: 210L/min
Operating Pressure: 5 bar (relief: 2-16 bar)
Speed: 1200 rpm
Construction: Robust: ion-nitrided gears, FKM seals, GG-25 housing
Pump Housing Material: EN-GJL-250 (GG-25)
Gears: 16 Mn Cr S 5, noise-optimized, helical, ion-nitrided (EN-GJS-400-15/ GGG-40)
Shaft Seal: Radial
Elastomer: FKM
Media: Lubricating oil, 50-5000 cSt
Viscosity Range: 50-5000 cSt
Operating Temperature: 10 - 60 deg. C
Pressure Relief Valve: 2 - 16 bar adjustment, opening at 8 bar
Rotation: Right- Hand
Test Run: Conducted with HLPD 46

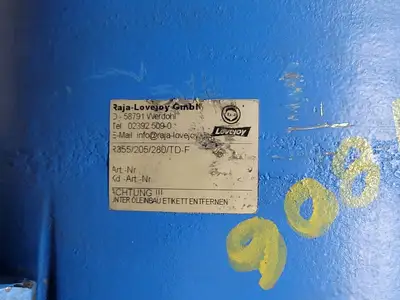

Coupling: BKUA080-2441-302
Pump Support: BLF056355185LA11, M20 motor mounting thread

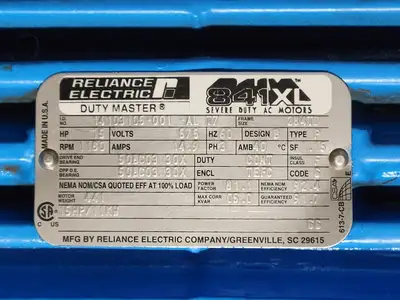

Motor Compatibility: Three-phase NEMA 256 TD, D-flange (similar to IM B5), 15 hp
Finish: Primed
