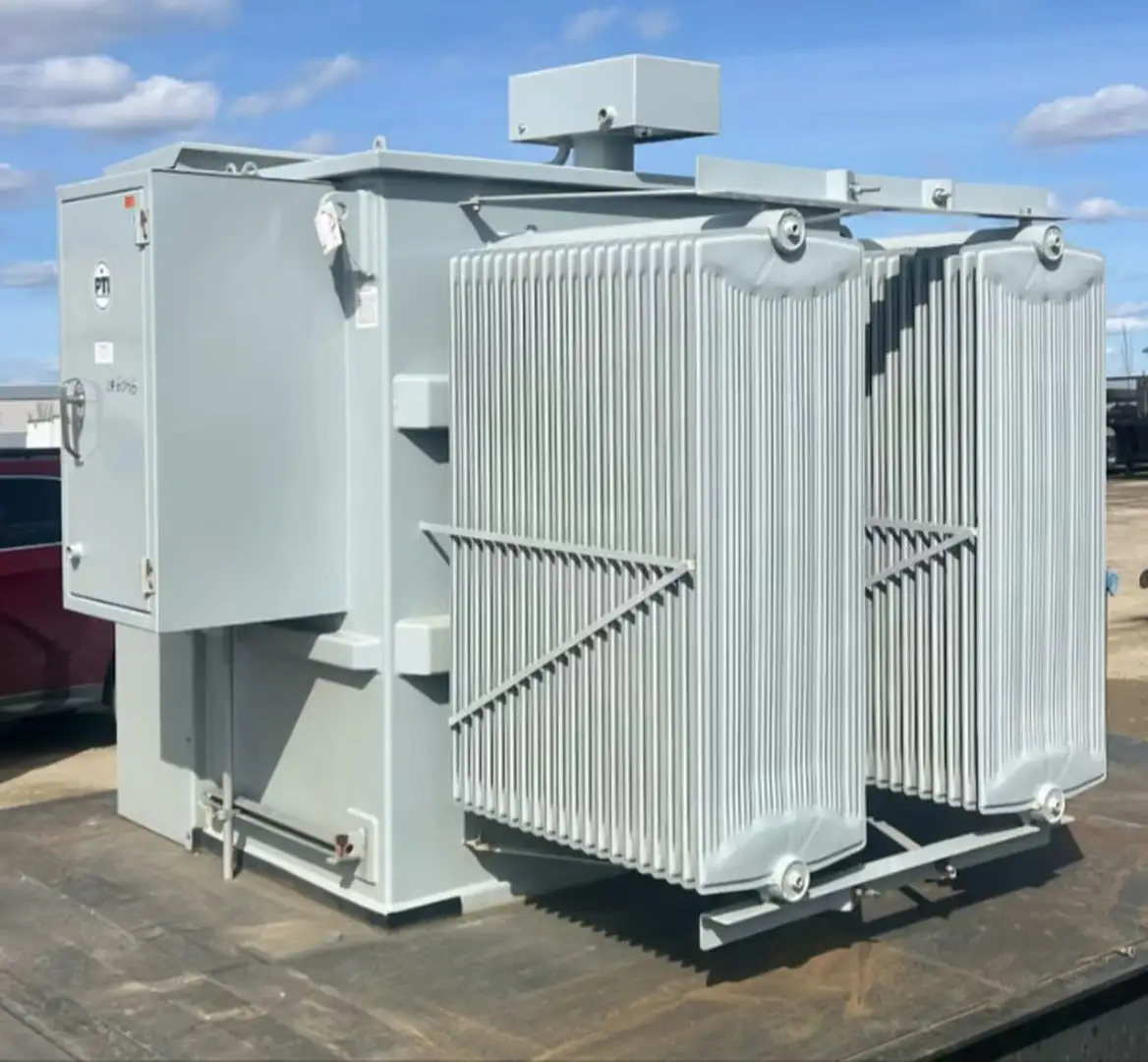

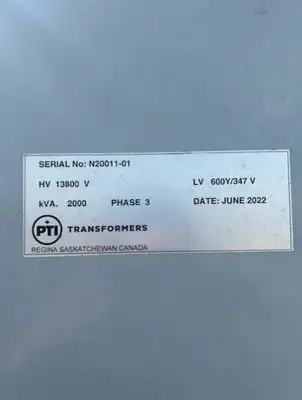

NEW 2022 PTI ONAN

kVA: 2000 kVA
Primary Voltage: 13800 volts
Secondary Voltage: 600/347 volts
Phase: 3-phase
Transformer Type: Power Transformer
Auto VS Isolation: Isolation
Oil vs Dry: Oil
Transformer includes:

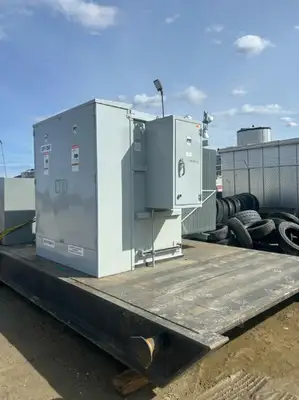

1) 16' Steel Skid
2) MegaResister Neutral Ground Resister (Model MR-200) 600V / 347V 5 A Unit

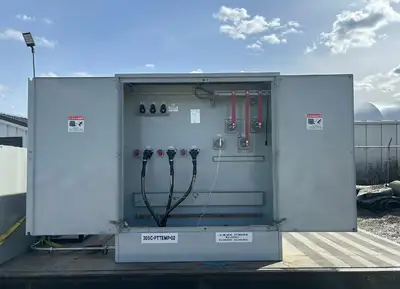

3) Control Panel 600 Amp, 15 KV 3-Phase
Transformer Specifications:

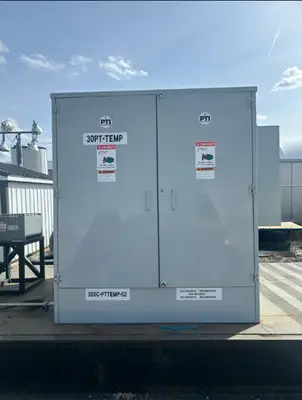

Type: Deadfront Padmount Transformer
Cooling: ONAN
Phase: Three Phase
Power Rating: 2000 kVA
Frequency: 60 Hz
Temperature Rise: 65°C
Impedance @ 85°C: 6.46%
HV BIL: 150 kV
LV BIL: 30 kV
HV Voltage: 13800 V
LV Voltage: 600Y/347 V
Tap Positions: 1 (105.0%), 2 (102.5%), 3 (100.0%), 4 (97.5%), 5 (95.0%)
Tap Connections: A-B, B-C, C-D, D-E, E-F
Cooling Medium: Mineral Oil
Oil Volume: 2200 L
Total Mass: 6300 kg
PCB Content: < 1 ppm
Max Elevation: < 1000 m
F Fuse: 4000035317CM
CL Fuse: CBUC15150D100 (x3)
Current Transformer: Class: C10, Type: WTI 2410-5 Ratio: 1-2

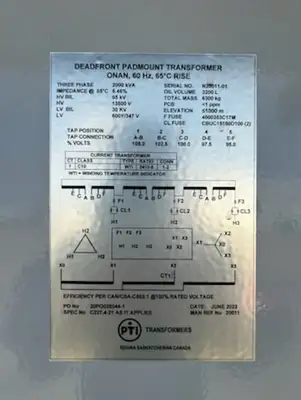

Connections: HV: Delta, LV: Wye, Diagram: See connection diagram on plate
Efficiency: Per CAN/CSA-C802.1 @ 100% rated voltage
Reference No: 20P0026044-1
Spec No: C227.4-21 (as applicable)
