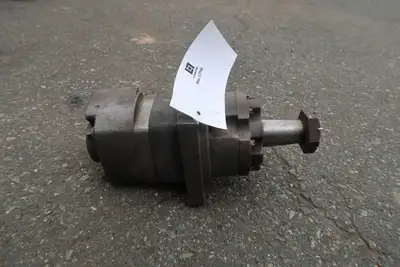

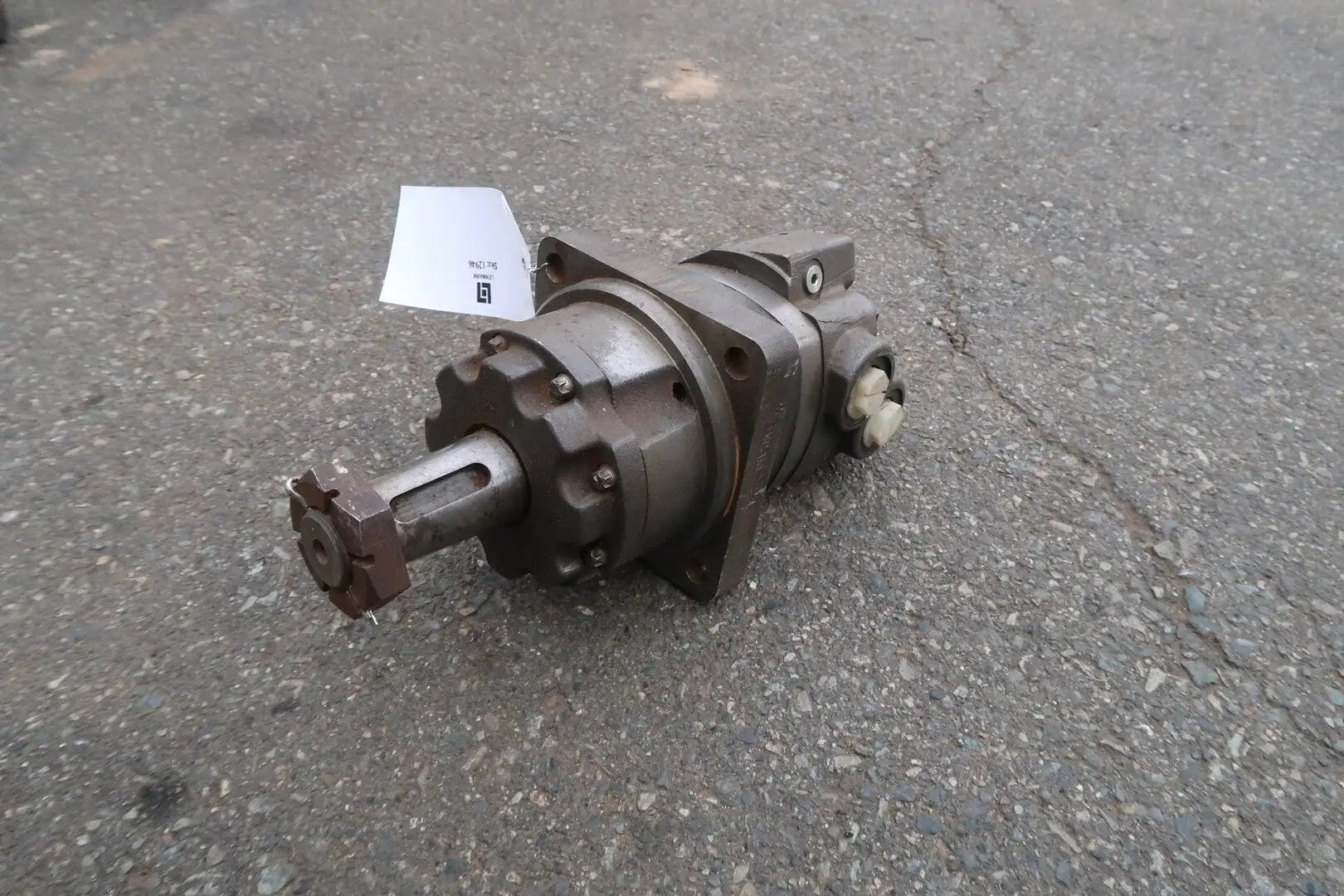

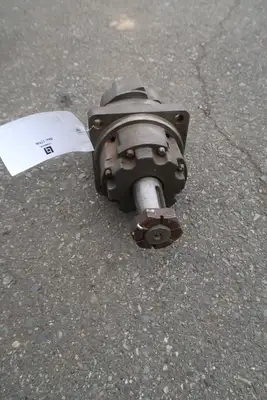

USED CHAR-LYN 110-1086-006

Max. Pressure: 3000 psi
RPM: 303 rpm
Series: 4000 - Wheel
Maximum Geometric Displacement: 311.8 cm3/r
Displacement: 19.03 in3/r
Maximum Operating Pressure: 3000 psi
Continuous Torque: 7523 in.
Maximum Speed: 303 rpm
Motor Port Type: Straight Thread O-Ring SAE
Motor Port Size: 1-1/16-12 UNF-2B
Shaft Type: Keyed
Maximum Operating Temperature: 180 deg. F
Maximum Flow Rate: 25 gpm
Output Shaft Size: 1-5/8 in. Tapered - Straight Key - Slotted Hex Nut
Seal Type: Single Lip Seal
Drain Connection Size: .4375 - 20 Unf-2b O-ring Port Size - 4 with Check Valve
Operation Rating Description: Continuous Rating - Motor may be run continuously at these ratings./ Intermittent Operation - 10% of every minute / Peak operation - 1% of every minute
Mounting Type: 4-Bolt Flange - 5.5 in. Pilot
Port Orientation: Staggered Ports
Actual Mounting Flange: 4-Bolt Flange - Wheel - With 5-1/2 in. Pilot Diameter
Actual Output Shaft: Taper
Actual Port Type: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
Continuous Flow Rate: 95 L/min
Intermittent Pressure: 260 bar
Maximum Continuous Oil Viscosity: 70 Saybold Universal Second
Maximum Speed-Continuous: 697 rpm
Port Configuration: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
