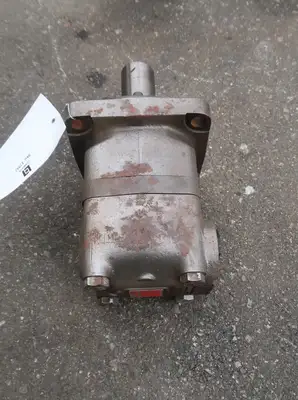

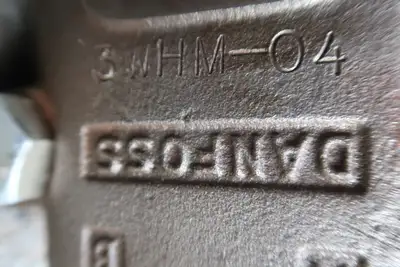

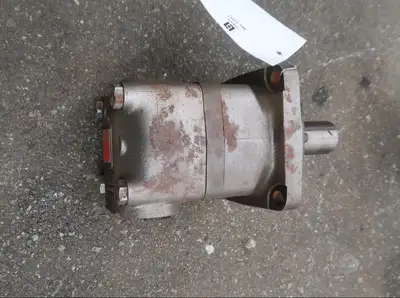

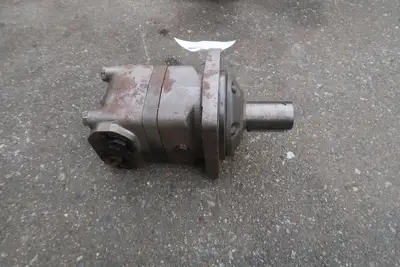

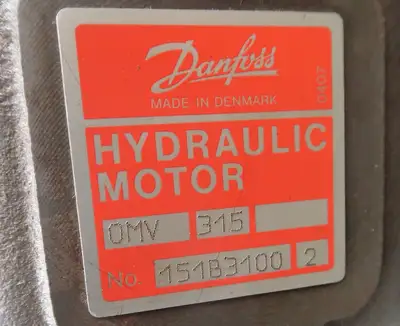

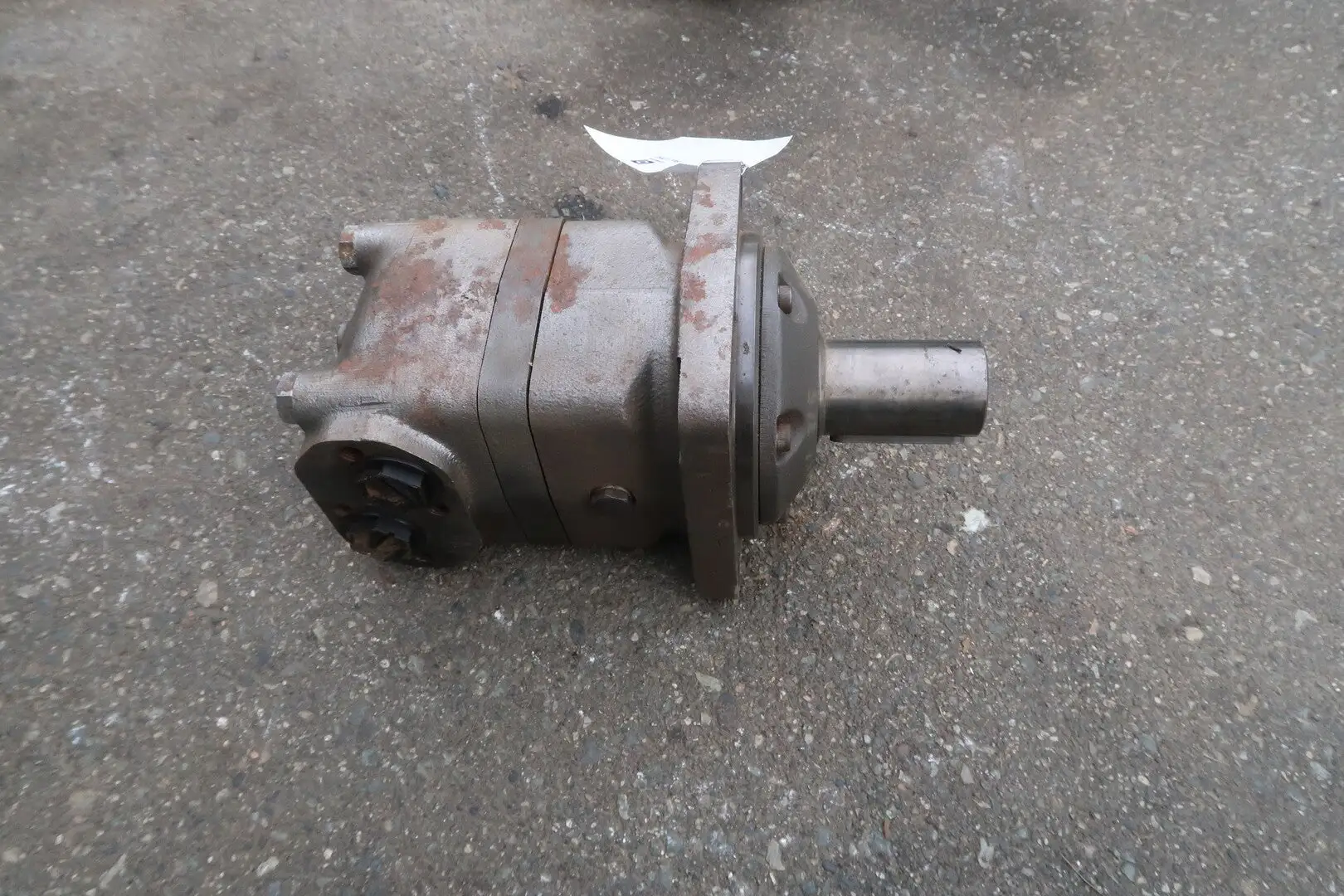

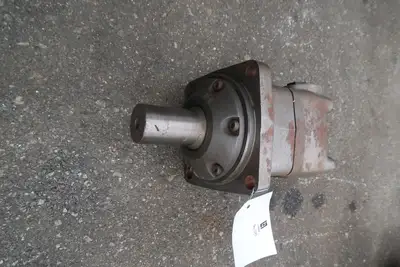

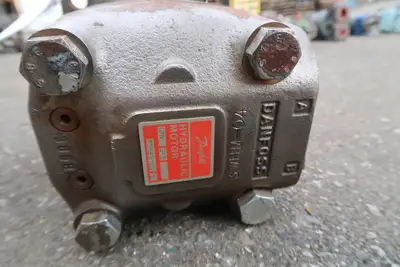

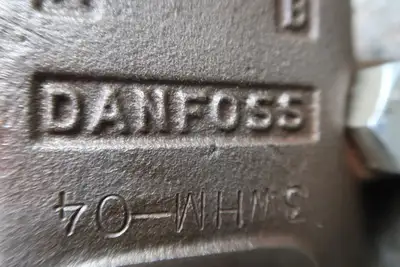

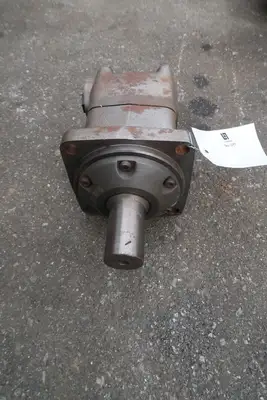

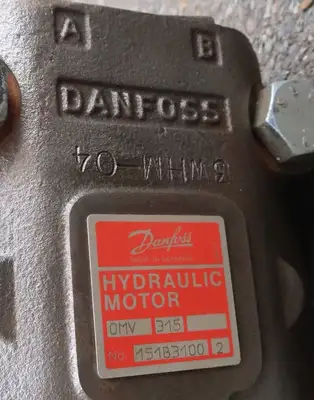

USED DANFOSS OMV315-151B3100

Motor Series: OMV
Valve System: Disc valve with valve drive
Orbital Gearwheel Set Type: Geroler
Motor Size: 315
Geometric Displacement: 314.5 cm3/r
Motor Type: Standard
Motor Function: Standard
Mounting Flange Type: 4 Bolt-Square
Shaft Type: Straight
Shaft Dimension: Dia. 50 mm, M12 x 1.75-6H thread in shaft end
Shaft Key: Rectangular key, A14 x 9 x 70 mm, DIN 6885
Main Port Thread Type: BSP
Main Port Style: Sideport - Staggered
Main Port Dimension: G1,4 x M12 black mounting threads
Drain Port Dimension: G1/4
Shaft Seal: NBR-Standard
Front Bearing Type: Tapered roller bearing
Rear Bearing Type: Tapered roller bearing
