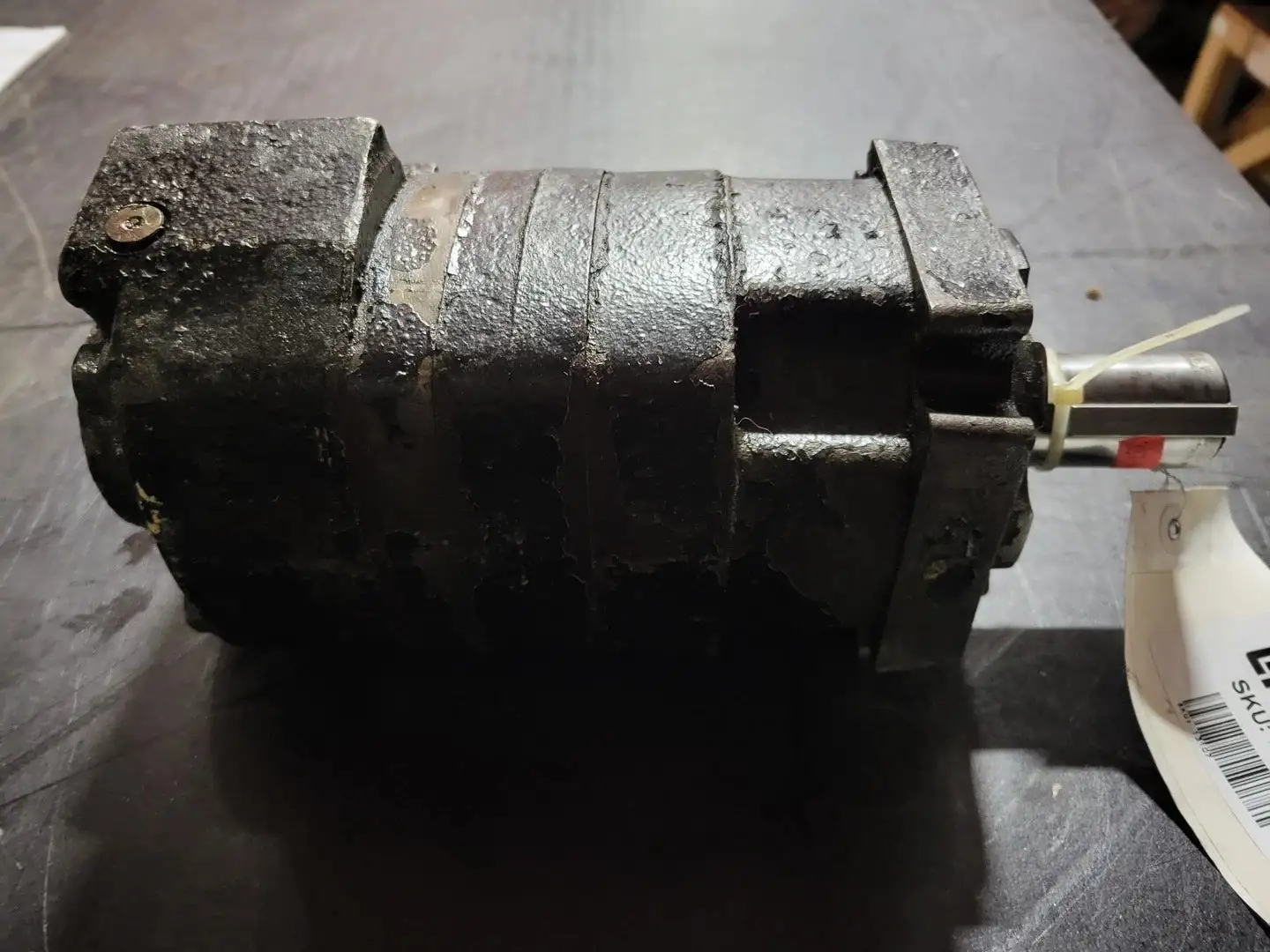

USED CHAR-LYN 109-1102-006

Series: 4000 - Standard
Displacement: 9.90 in3/r
Shaft Type: Straight
Maximum Operating Temperature: 108 deg. F
Output Shaft Size: 1-1/4" Straight - Straight Key
Seal Type: Straight
Drain Connection Size: 0.4375-20 Unf-2b O-ring Port Size - 4 with Check Valve
Operating Rating Description: Continuous Rating - Motor may be run continuously at these ratings. / Intermittent Operation - 10% of every minute / Peak Operation - 1% of every minute
Mounting: 4-Bolt
Port Orientation: Staggered Ports
Actual Output Shaft: Straight
Actual Port Type: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
Continuous Flow Rate: 95 L/min
Intermittent Pressure: 310 bar
Maximum Continuous Oil Viscosity: 70 Saybold universal second
Maximum Speed Continuous: 459 rpm
Port Configuration: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
