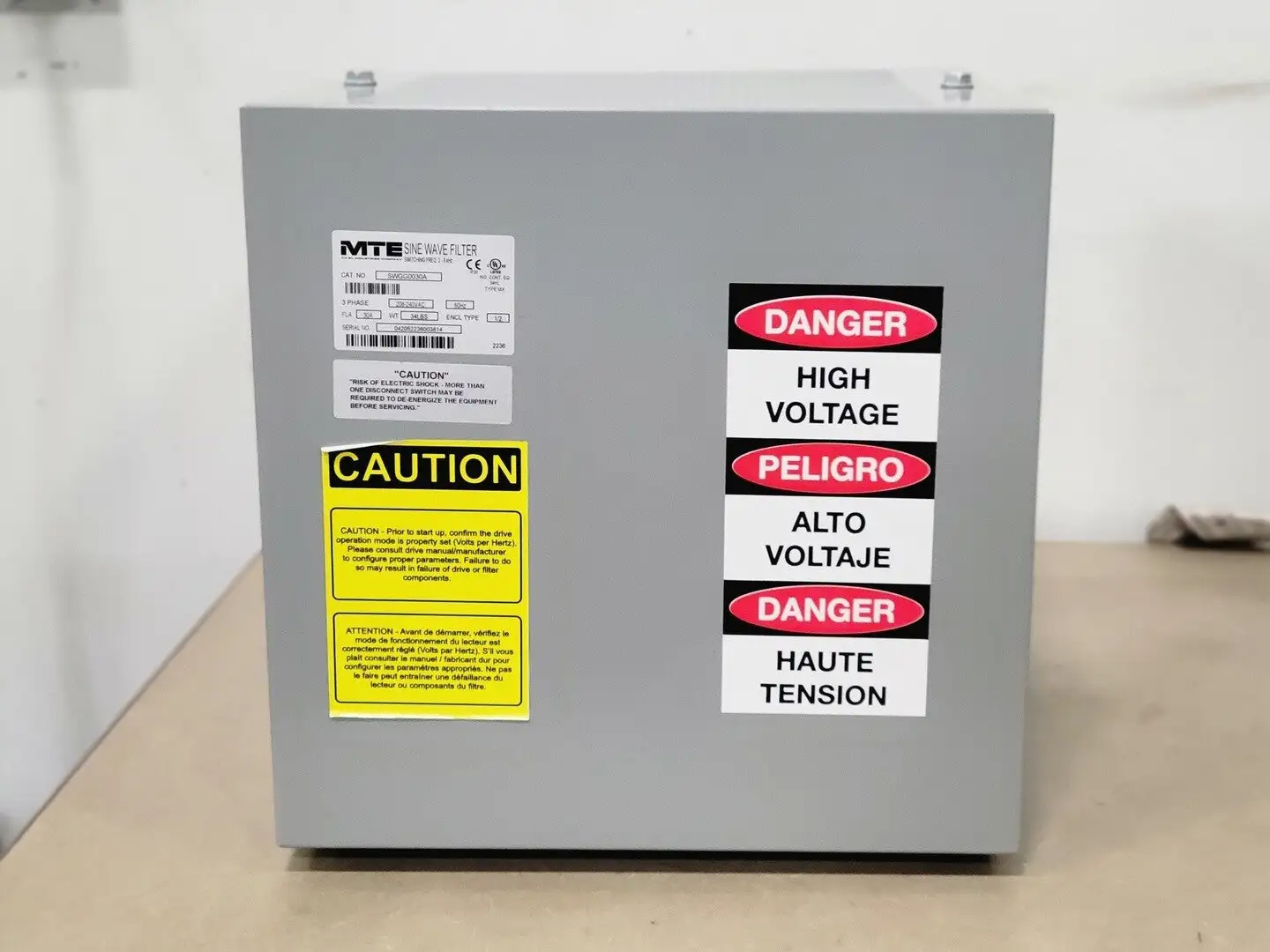

NEW MTE SWGG0030A

Series: Sine Wave Guardian
Enclosure Type: General Purpose (NEMA 1/2)
Current Rating: 30 A
Voltage Rating: 208-240 V
Performance:-
Service Load Condition: Conventional 3-phase motors Standard Step-up transformer optional
Input Voltage: 208V-600V +/-10%
Current Range: 2A-1500A (0.75 hp - 1200 hp)
Harmonic Voltage Distortion: 5% maximum @ 2kHz
Inverter Switching Frequency: 2kHz to 8kHz
Inverter Operating Frequency: 6Hz to 75Hz; > 75 Hz to 120Hz with derating
Maximum Ambient Temperature:
-40 deg. C to +60 deg. C modular filter
-40 deg. C to +55 deg. C enclosed filter
-40 deg. C to +90 deg. C storage
Insertion Loss: 6% maximum @ 60 Hz
Efficiency: >98%
Altitude without Derating: 3300 ft. above sea level
Maximum Motor Lead Length: 15000 ft.
Relative Humidity: 0% to 95% non-condensing
Current Rating: 100% RMS continuous; 150% for 1 minute intermittent
