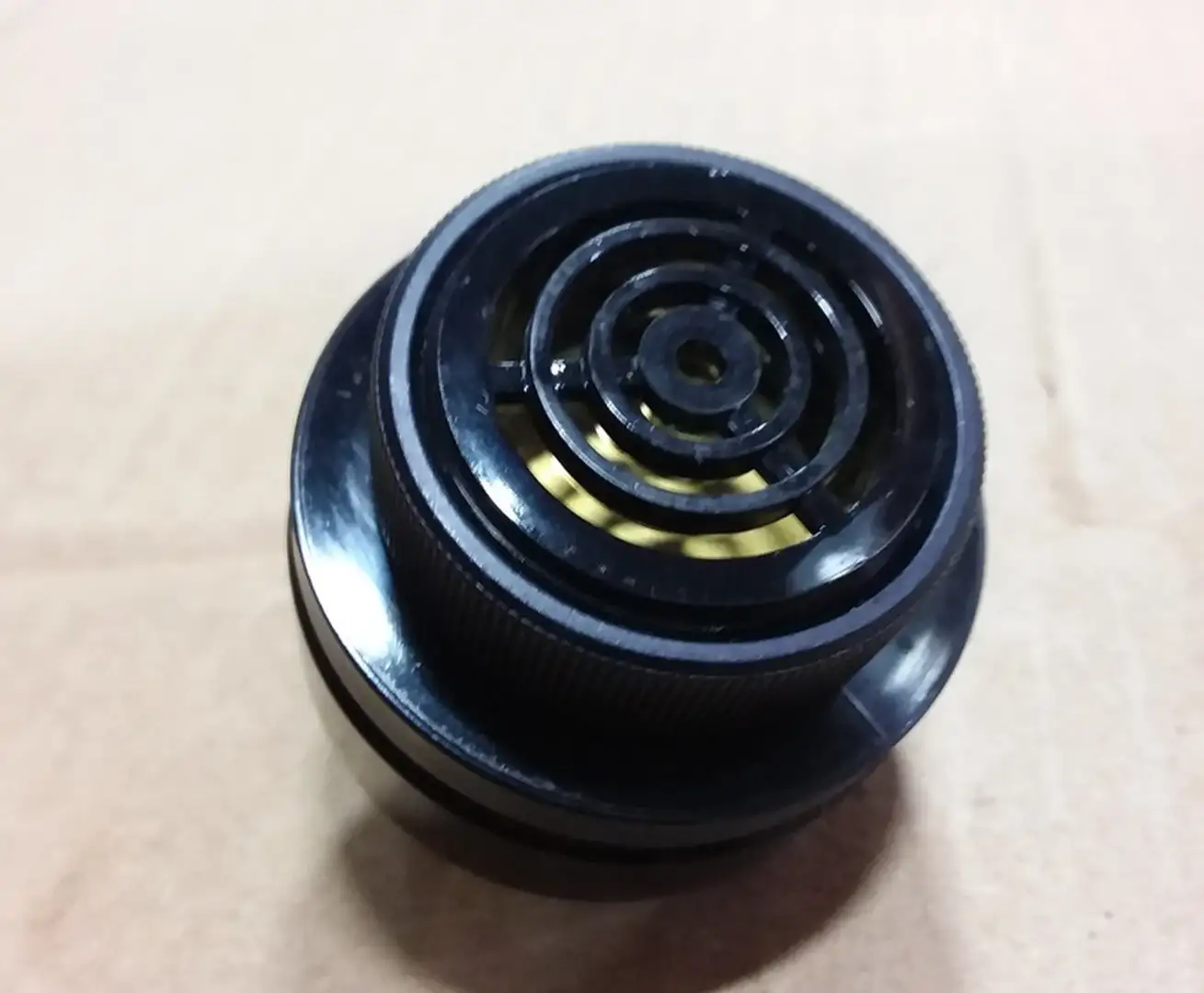

USED SONALERT SC628M

Equipment Type: Alarm
Series: SC
Drive Cicuitry: Indicator, Internally Driven
Input Type: DC
Technology: Piezo
Operating Mode: Single Tone
Sound Pressure Level: 70 dB @ 6V, 61 cm
Port Loaction: Top
Termination: Screw Terminal, Quick Connect Tab -0.250" (6.35 mm)
Sound Level Category: Medium
Mode of Operation: Continuous
Voltage Rating: 6-28 VDC
Frequency: 2900 +/-500 Hz
Loudness @ 2 ft.: 80 to 91 dB (A) Typ.
Loudness @ min VDC: 70 dB (A) min. @ 2 Feet and 6 VDC
Loudness @ max VDC: 85 dB (A) min. @ 2 Feet and 28 VDC
Current Draw: 4-16 mA
Housing Material: 6/6 Nylon, Color: Black
Storage Temperature: -65 deg. C to +85 deg. C
Operating Temperature: -40 deg. C to +85 deg. C
Panel Mounting: Recommended hole size is 1.25" (31.75mm). Thread front will fit standard 30 mm (1.81") hole.
Knurled Nut: Used to attach part to panel. The max recommended torque is 10 in-lbs
