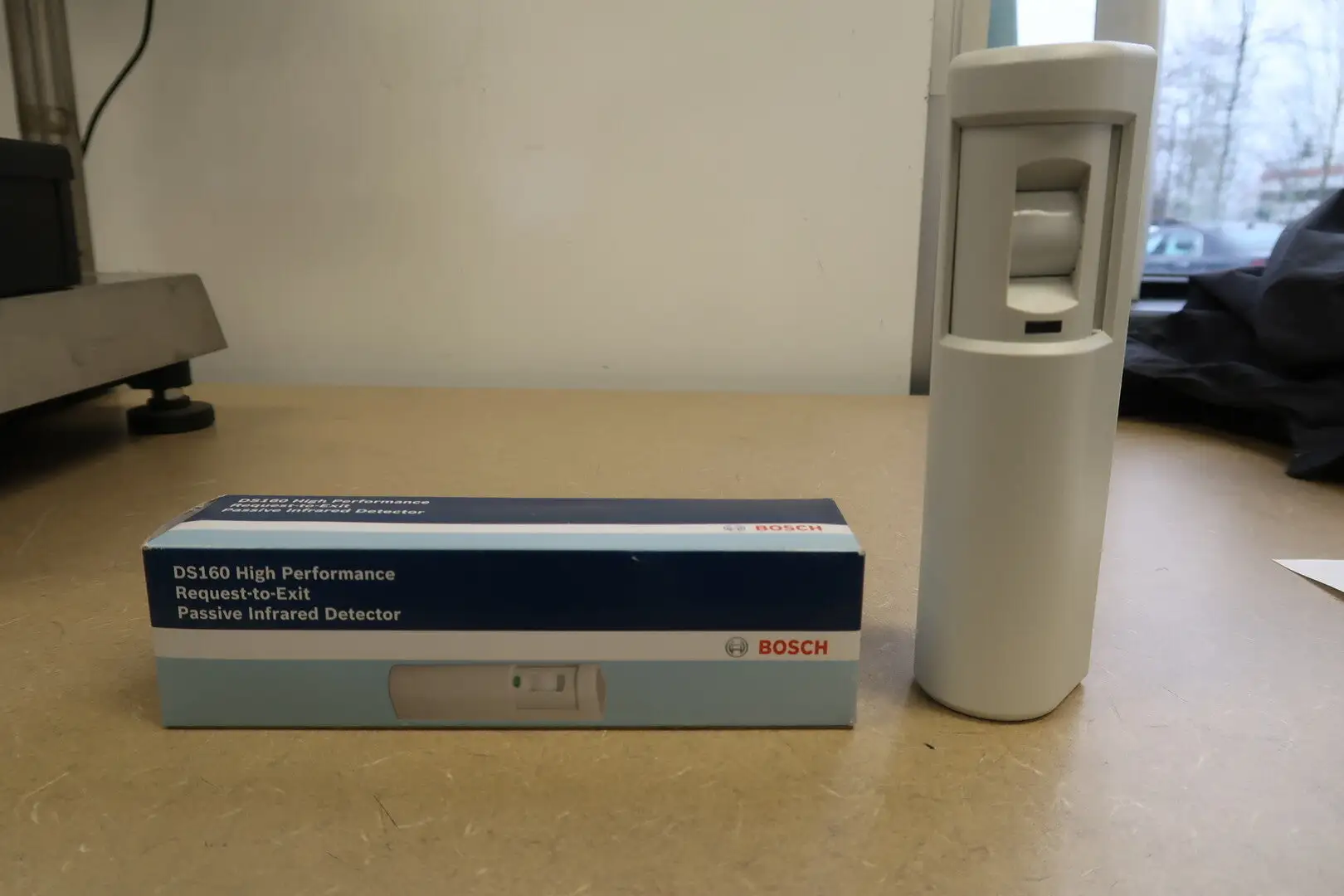

NEW BOSCH DS160

Operating Temperature: -29 to +49 deg. C (-20 to +120 deg. F) For UL Certificated installations , 0 to 49 deg. C, +20 to 120 deg. F
Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 1000 MHz at 50 V/m
Material: High impact ABS plastic enclosure
Power Loss De-Fault: Programmable fail-safe or fail-secure modes
Timer: Programmable reset accumulating or non-reset counting mode.
Current Draw: 8 mA nominal standby current, 39 mA at 12 VDC in alarm
Voltage: 12 VAC or VDC to 30 VAC or VDC
Alarm Output: Two form C relay contacts each rated 1A at 30 VAC or VDC for resistive loads
Indicators: 1 Activation LED
Relay Latch Time: Adjustable from 0.5 sec to 64 sec
Key Features of Bosch DS160:
- Door monitor with sounder alert
- Sequential Logic Input (SLI)
- Internal vertical point ability
- Wrap-around coverage pattern with precise pattern control
- Up to 64 second adjustable latch time
- Selectable relay trigger mode
- Selectable fail-safe or fail-secure modes
- Adjustable sounder volume
- Activation LED
