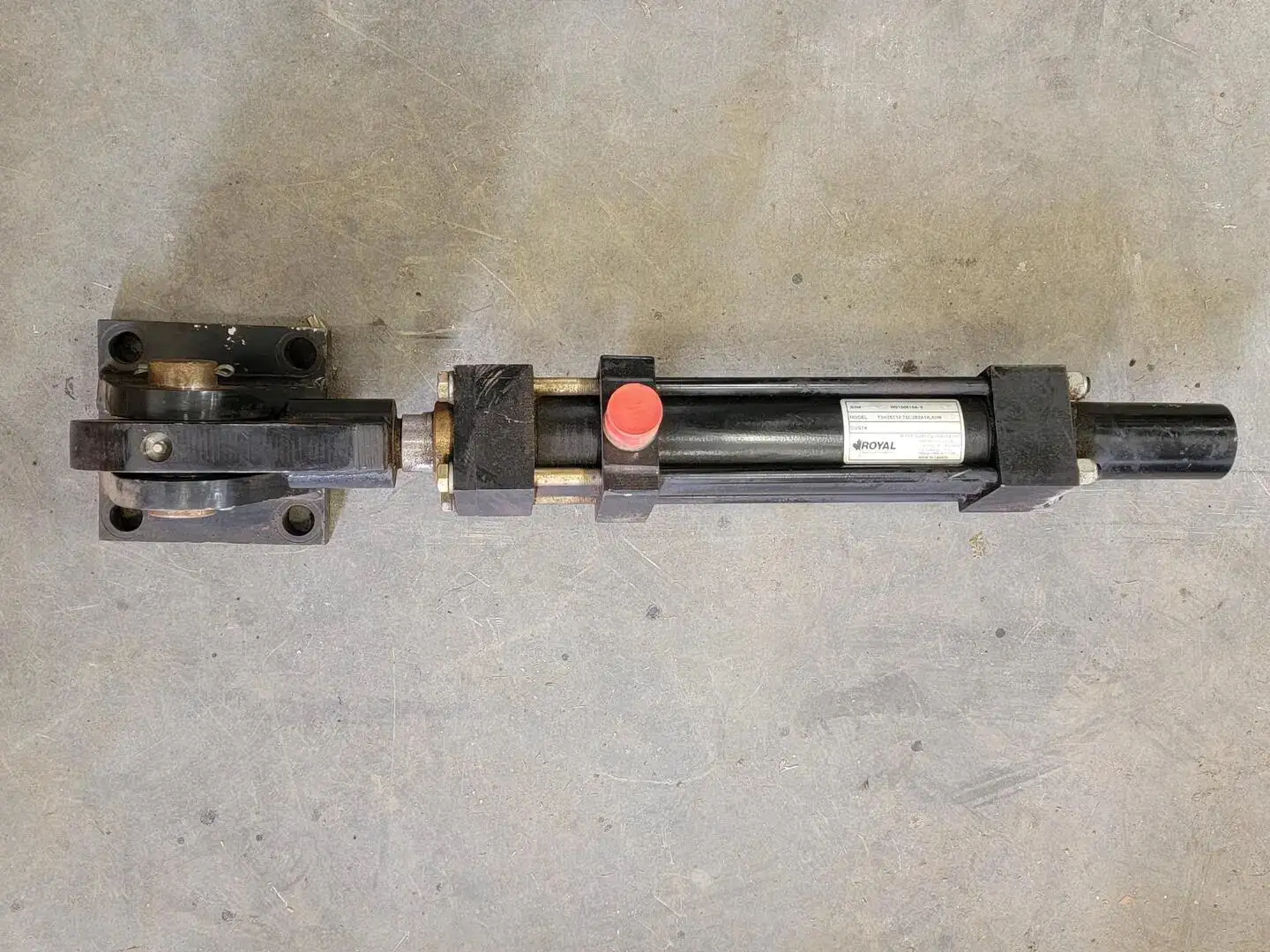

USED WESTCOAST CYLINDERS T3H25T10C3B2A1A,XI=6

Bore Diameter: 2-1/2 "
Stroke: 10 IN
Cylinder Description:
Royal T3H Series Positioner
Mid-Trunnion (MT4)
Trunnion Location XI = 6
2 1/2 in. Diameter Bore
10" Stroke
1 3/4" Diam. Chrome Plated Steel Piston Rod
With Oversize Thread, CC=1 1/2-12
Gun Drilled Rod
Non Cushioned
Microhoned Steel Barrel
SAE-08 Port at Position 1
Maximum Electrical Stroke of Probe = contact factory
Temposonic Ready Cylinder - Probe not included
Transducer Magnet Included
Inclusions:
Self Aligning Rod Eye - Female Thread
Mounting Bracket for Self-Aligning Rod Eye
