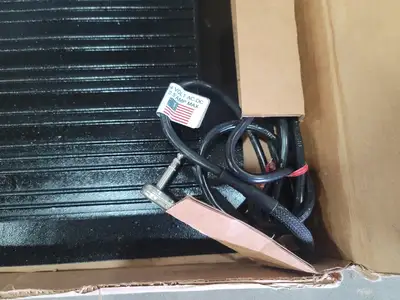

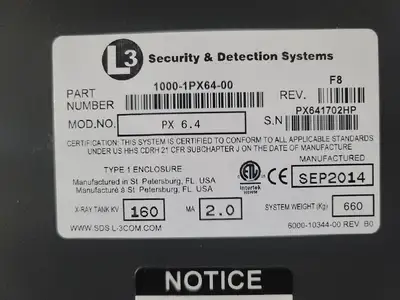

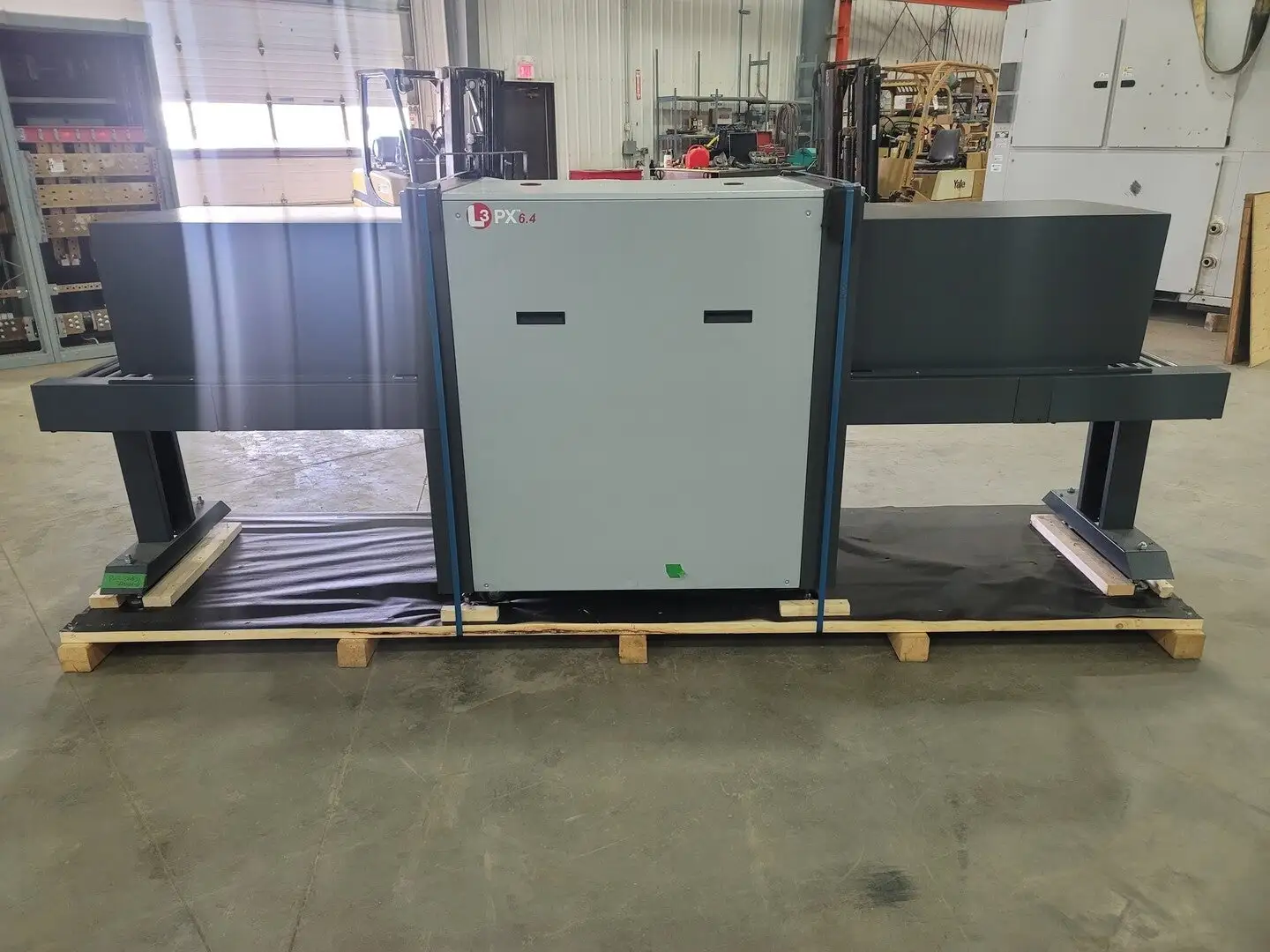

USED 2014 L3 COMMUNICATIONS PX6.4

Applications:-
Threat Detection
Manifest & Declaration Verification
Contraband Detection
Theft Prevention
Regulatory Compliance/Inspection
General:-
Dimensions:-
Height: 1312 mm (51.7")
Width: 862 mm (34.0")
Length:-
Short Conveyor: 1700 mm (67")
Medium Conveyor: 2236 mm (88")
Long Conveyor: 3030 mm (119.3")
Tunnel Opening: 640 mm (25.2") W x 430 mm (16.9") H
Conveyor Height: 762 to 812 mm (30" to 32")
Power Requirement: 100-240 VAC, 1-Ph, -/+ 10% 50/60 Hz, +/- 1%, 1.0 kVA max
Conveyor Speed: 0.22 m per second +2/-8% @ 50 Hz, 0.26 m per second +2/-8% @ 60 Hz
Conveyor Capacity: 100 kg (220 lb)
Scan Rate: >750 bags/hour (continuous mode)
X-Ray:-
Voltage: 150 kVp/160 kVp optional
Duty Cycle: 100%
Cooling: Sealed Oil Bath
Beam Orientation: Vertically Upward
Detector Configuration: 1152 photodiodes in L-shaped folded array configuration
Imaging and Performance:-
Resolution: 41 AWG standard, 44 AWG typical
Penetration: 36 mm of steel standard, 38 mm typical
Contrast Sensitivity: 4096 gray level stored
Display Monitor: 19" high-resolution LCD
Optional High-Powered X-Ray Imaging & Performance:-
Resolution: 42 AWG standard, 45 AWG typical
Penetration: 38 mm of steel standard, 42 mm typical
Environmental:-
Operating Temperature: 0 deg. C to 40 deg. C (32 deg. F to 104 deg. F)
Storage Temperature: -20 deg. C to 50 deg. C (-4 deg. F to 122 deg. F)
Humidity: 95% non-condensing
Airborne Noise Level: <70dB(A)
Accession Number 0612321-000
