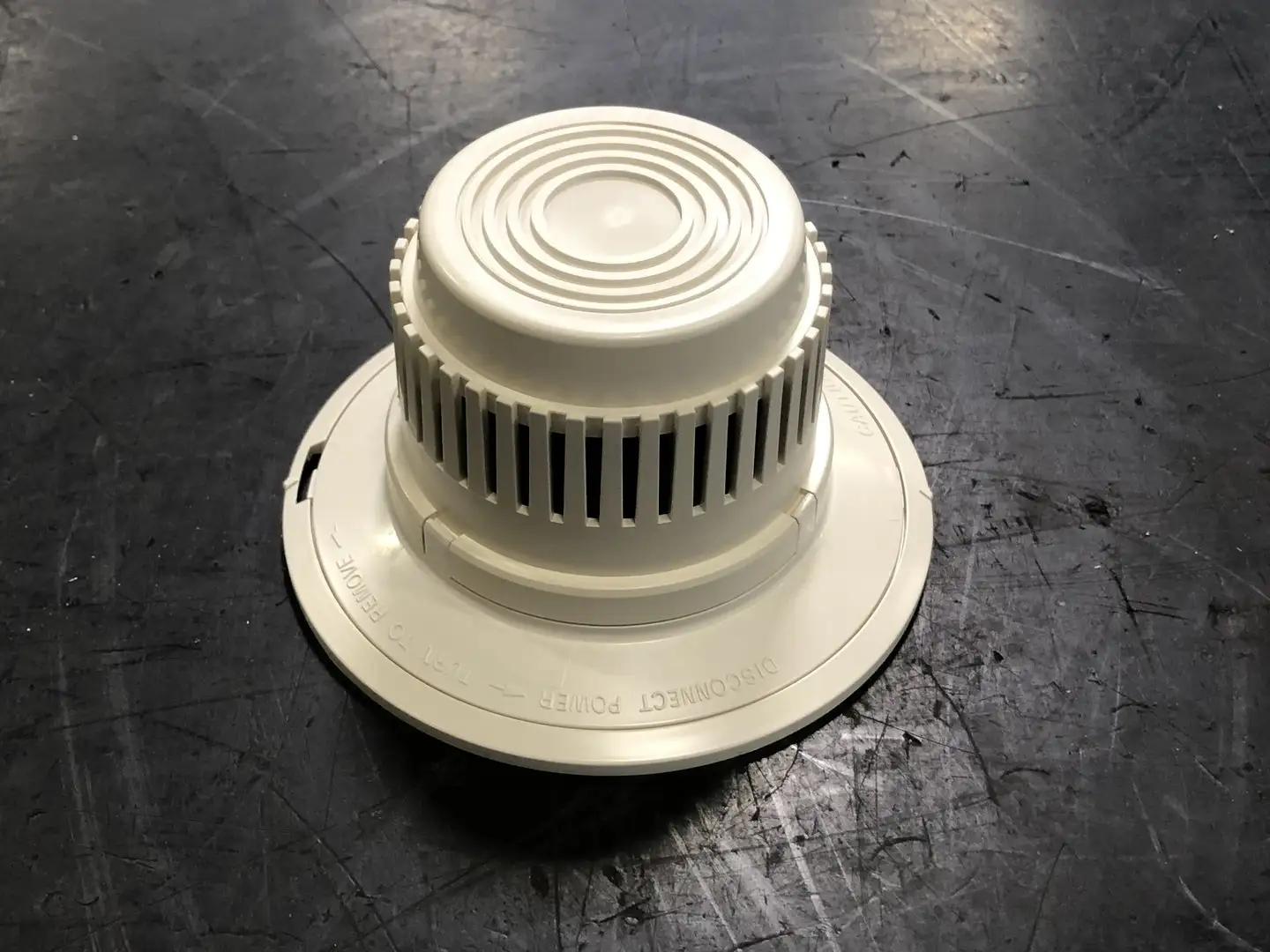

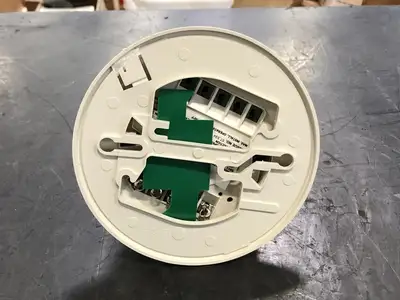

NEW BRK SD800

Equipment Type: smoke detector
Base Diameter: 5.50"
Cover Height: 3.14"
Cover Diameter: 3.30"
Operating Temperature Range: 0 to 49 deg. C
Operating Humidity Range: 10% to 85% relative humidity
Visual Alarm Indicator: Solid-state light-emitting diode (LED)
Voltage Range: 10-32 VDC
Nominal Voltage: 24 VDC
Current Limit (Standby-typical): 100 microAmps at 24 V
Current Limit (Alarm Current): 10 - 300 milliAmps
Accessories: 8468 A 066 Volume Control Kit
(1) Volume Control Spring
(1) 8-32 x 9/16 PHILL. FILL. M.S. W/VC-3
(1) Instruction Sheet
