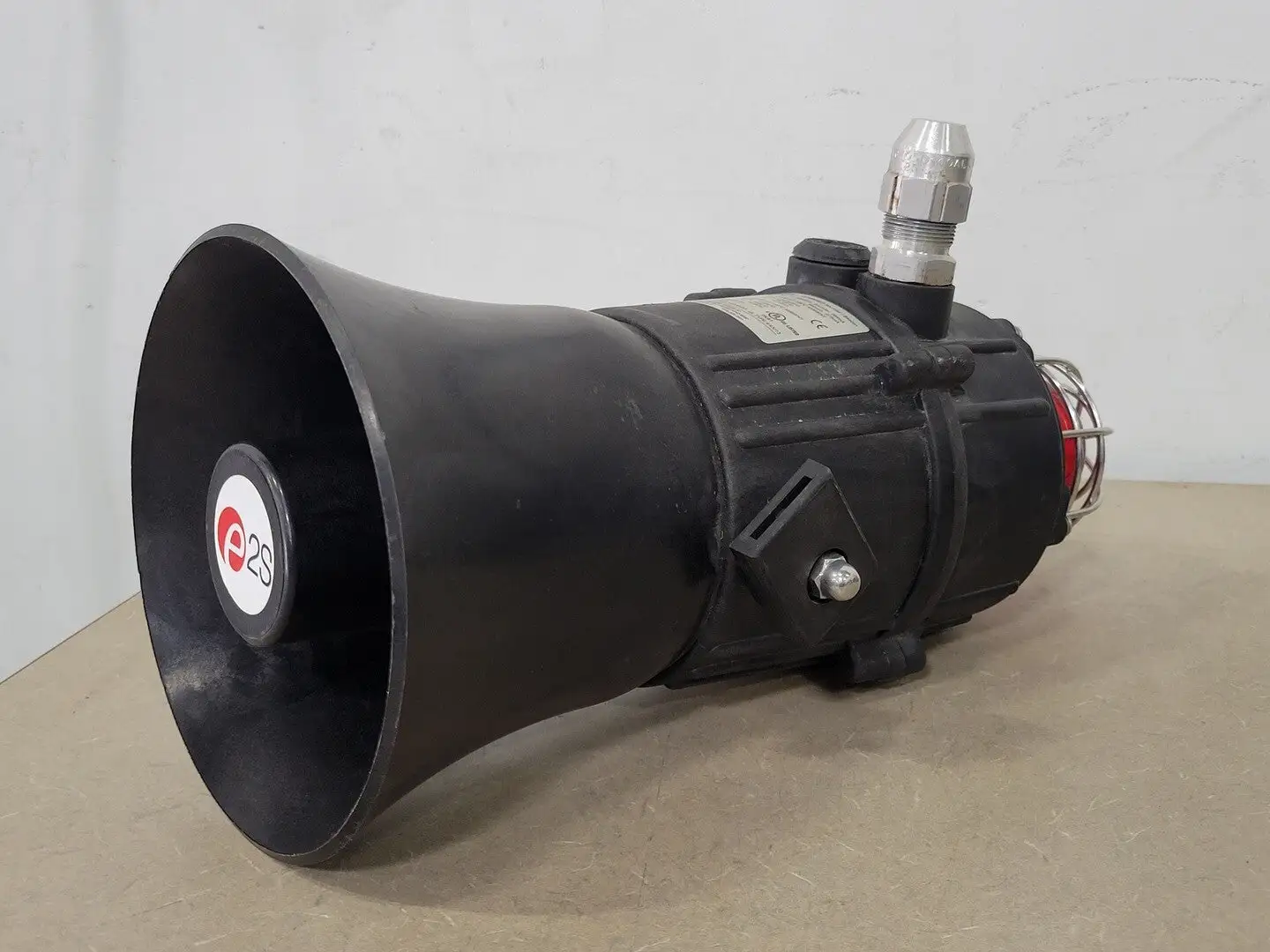

Equipment Type: Alarm Sounder
General:
Voltages DC: 24 VDC; 48 VDC
UL cable entries: 1 x 1/2" NPT cable gland entry & 1 x M20 with blanking plug
Alarm Sounder:
Current: 284 mA
Maximum output: 116dB(A) at 1 metre [107dB(A) at 10ft/3m]
Nominal output: 113dB(A) at 1m +/- 3dB - Tone 2 [104dB(A) at 10ft/3m]
No. of tones: 45 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 113dB(A); Min. 105dB(A) - Tone 2
Beacon:
Current: 275 mA
Energy: 5 Ws
Flash rate: 1Hz (60 fpm)
Classification:
Class I, Div 2, Grps A,B,C,D T2D (215°C) at +55°C
Class II, Div 2, Grps F & G T5 (100°C) at +55°C
Class III, Div 1, T5 (100°C) at +55°
Class I, Div 2, Grps A,B,C,D T3 (200°C) at +40°C
Class II, Div 2, Grps F & G T6 (85°C) at +40°C
Class III, Div 1, T6 (85°C) at +40°C
