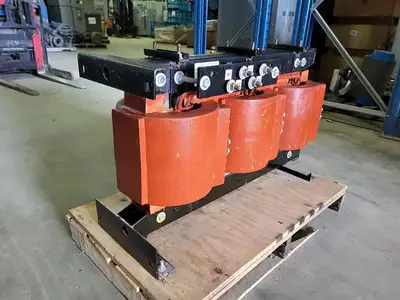

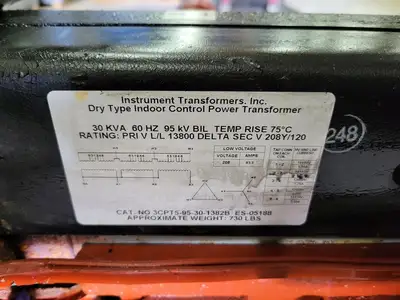

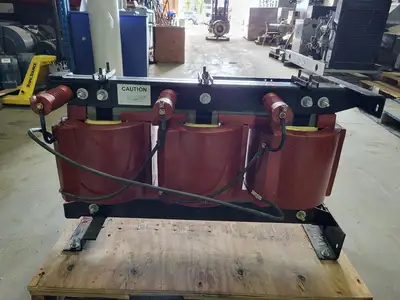

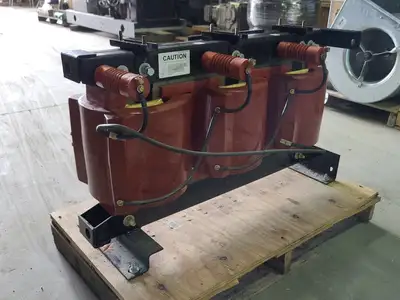

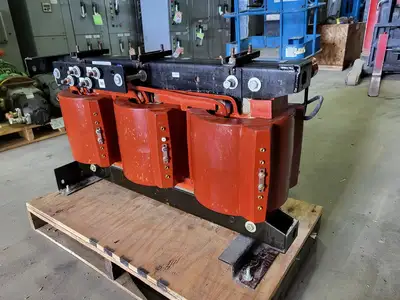

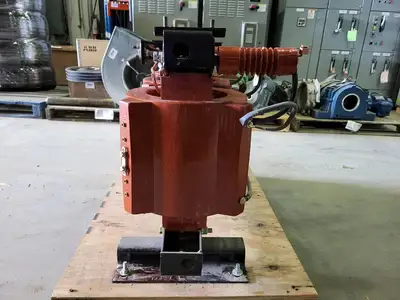

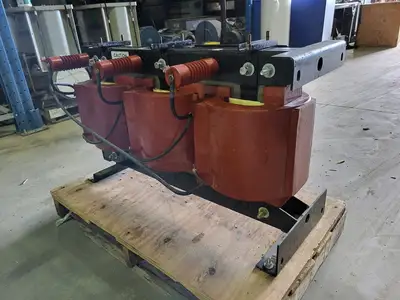

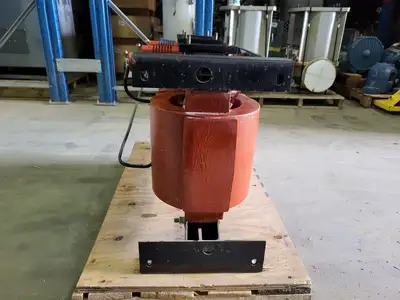

NEW INSTRUMENT TRANSFORMERS, INC. 3CPT5-95-30-1382B

kVA: 30 kVA
Primary Voltage: 13800 volts
Secondary Voltage: 208/120 volts
Phase: 3-phase
Transformer Type: Power Transformer
Auto VS Isolation: Isolation
Oil vs Dry: Dry
Frequency: 60 Hz
Insulation Level: 15 kV, 95 kV BIL full wave
Thermal Rating:
30 kVA at 30oC ambient.
25.7 kVA at 55oC ambient. 80oC rise.
45 kVA at 30oC ambient.
38.6 kVA at 55oC ambient, 80oC rise.
Primary terminals are copper compression type lugs.

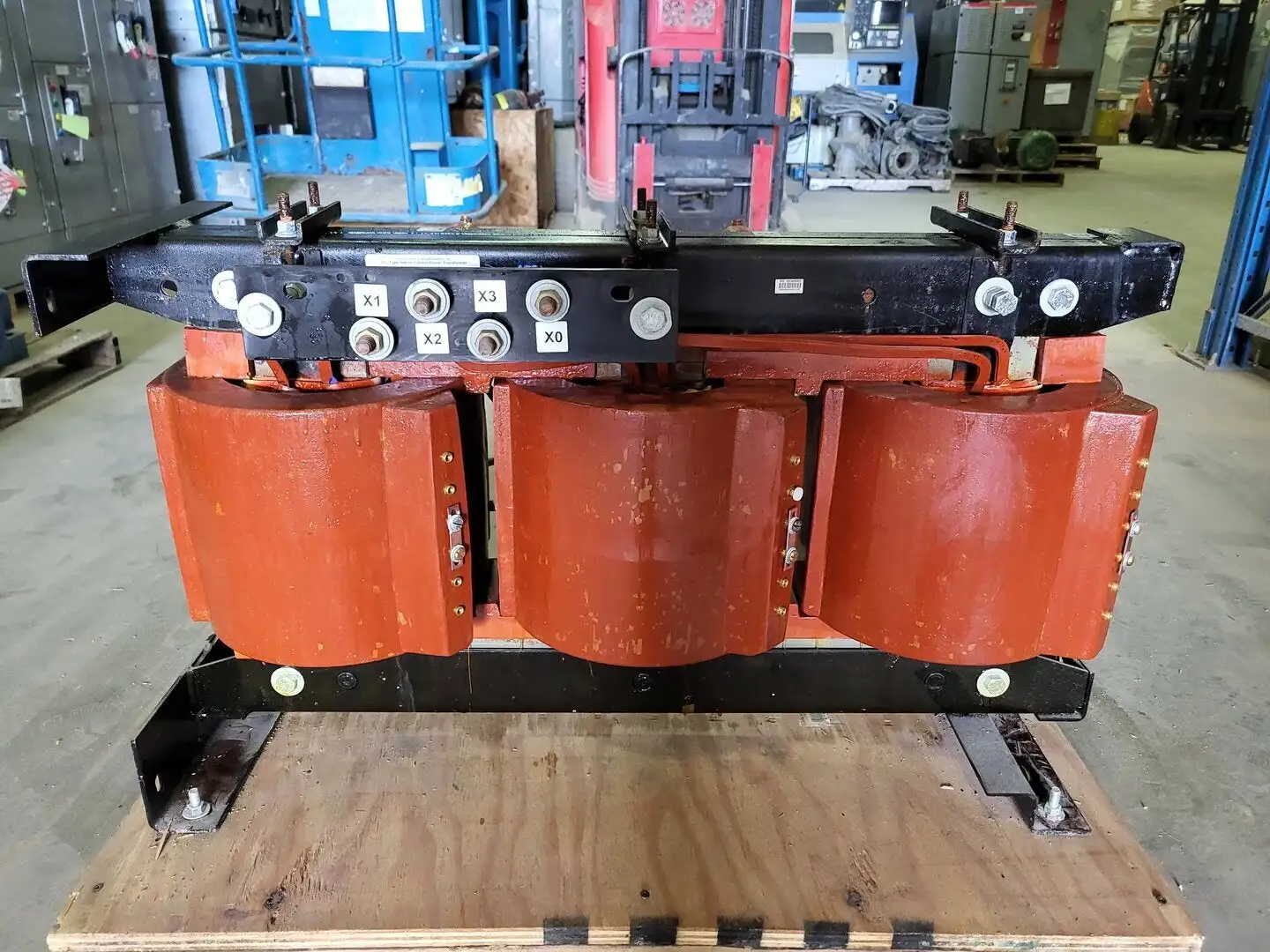

Secondary terminals are brass studs 1/2- 13 with one flatwasher, lockwasher and two regular nuts.
Windings are encapsulated in epoxy resin. Mounting base is steel.
Assembly is varnish coated.
Supplied with taps on primary side:
Cat. suffix A (1 ) + 7 1/ 2% taps or
Cat. suffix B (2 ) + 2 1/ 2% taps
