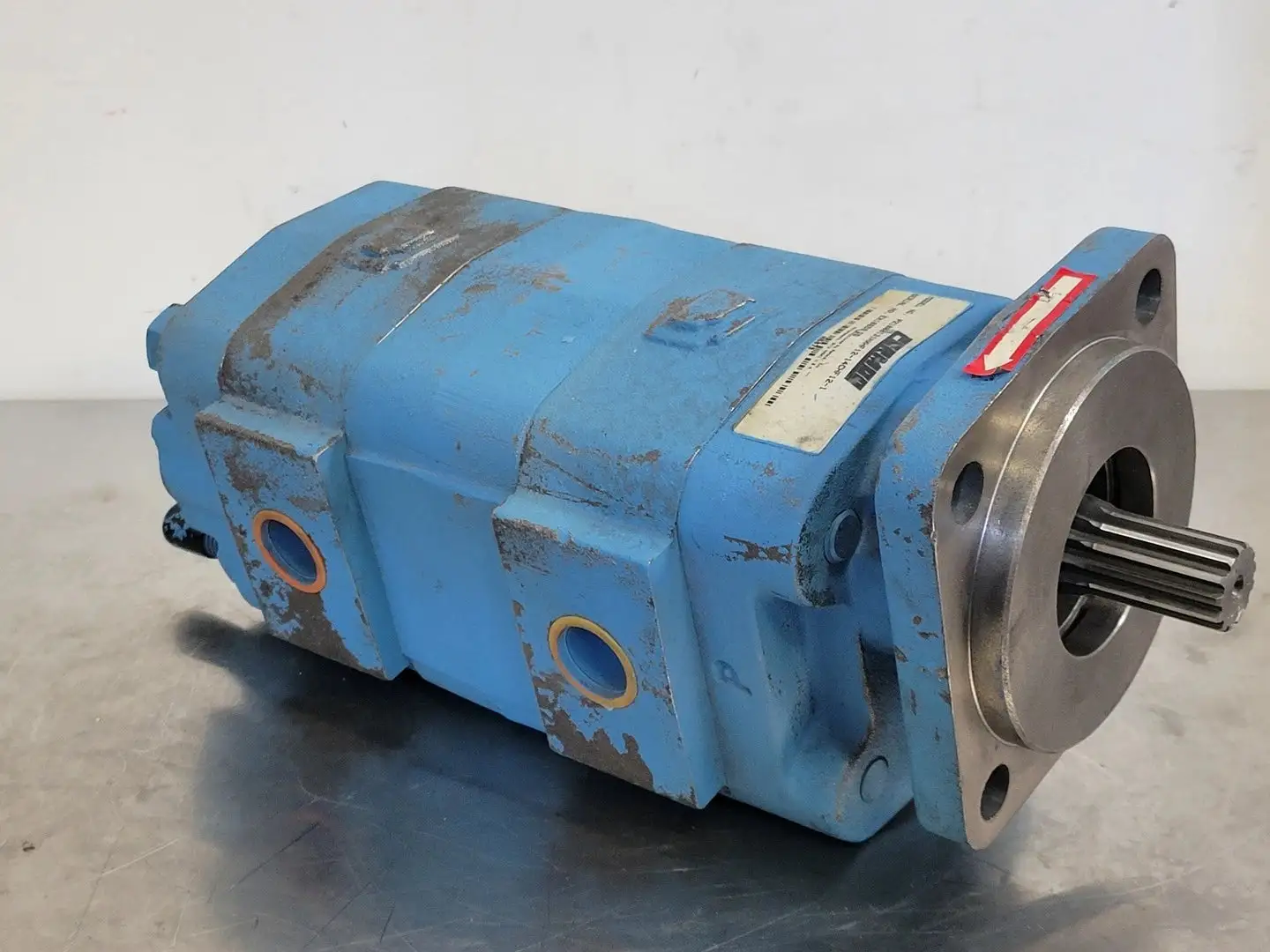

NEW PERMCO P2100B131AXHF12-14CHF12-1

Max. Pressure: 3000 psi
GPM: 24
RPM: 2400 rpm
Section Type: Multiple (1 additional section)
Gear Width: 1-1/4"
Displacement: 2.50 cu. in.
Flange: 4 bolt SAE B
Shaft Pilot Diameter: 4"
Drive Shaft: 13 tooth spline
Shaft Diameter: 7/8"
1st Section Gear Housing Porting Type: NPT
Left Port: 3/4" NPT
Right Port: 1" NPT
2nd Section Gear Housing Porting Type: NPT
Left Port: 3/4" NPT
Right Port: 1" NPT
Pump Performance Chart
600 rpm, 4.0 gpm
900 rpm, 7.5 gpm
1000 rpm, 8.5 gpm
1200 rpm, 11.0 gpm
1500 rpm, 14.0 gpm
1800 rpm, 17.5 gpm
2100 rpm, 21.0 gpm
2400 rpm, 24.0 gpm
