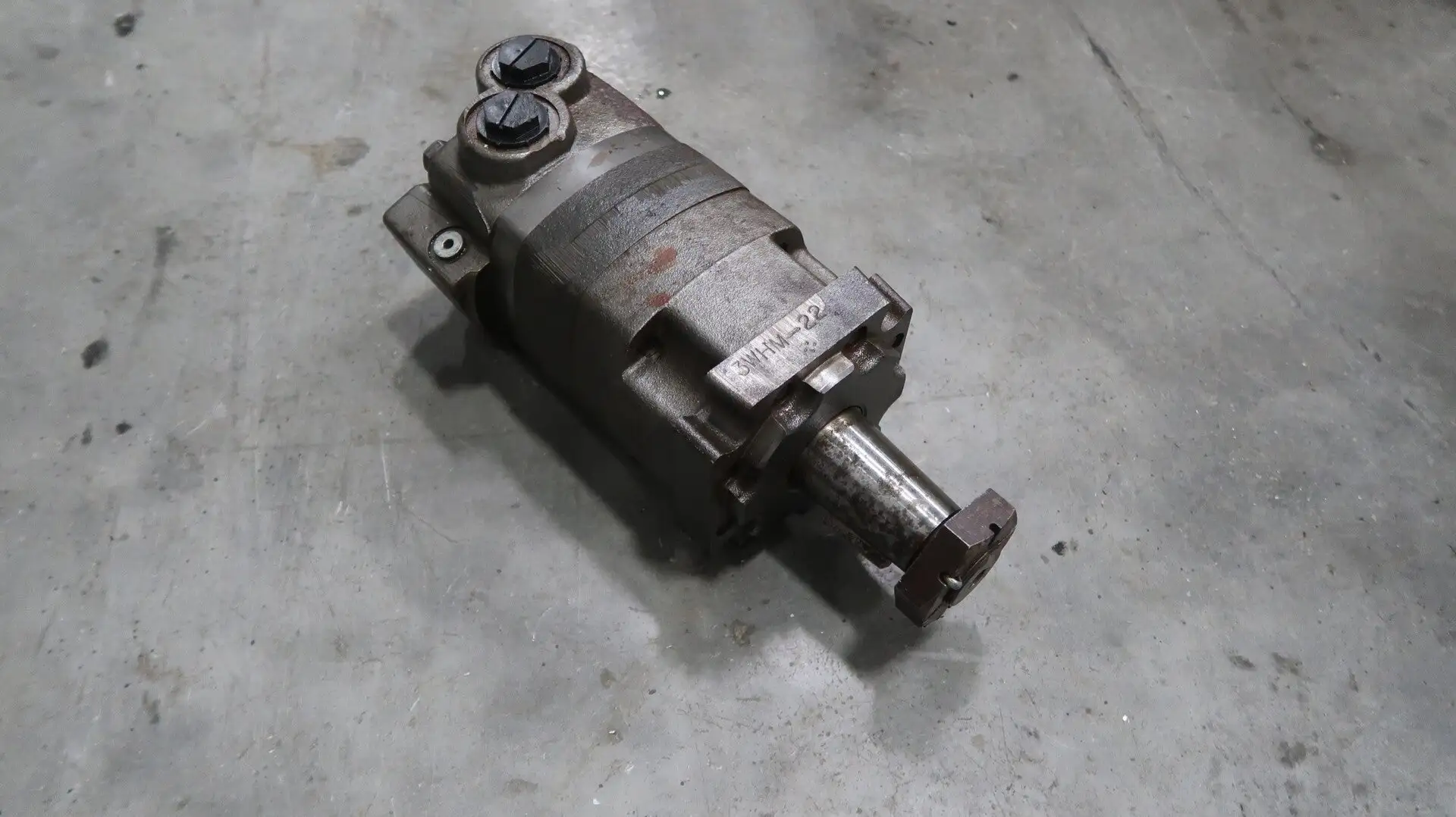

USED CHAR-LYN 109-1112-006

Series: 4000 - Standard
Displacement: 19.03 in3/hr
Maximum Operating Pressure: 3000 psi
Continuous Torque: 7523 in.
Maximum Speed: 303 rpm
Motor Port Type: Straight Thread O-Ring SAE
Motor Port Size: 7/16-20 UNF-2B
Shaft Type: Tapered
Maximum Operating Temperature: 180 deg. F
Maximum Flow Rate: 25 gpm
Output Shaft Size: 1-5/8 in Tapered - Straight Key - Slotted Hex Nut
Seal Type: Single Lip Seal
Drain Connection Size: 0.4375-20 Unf-2b O-ring port size -4 with check valve
Operation Rating Description: Continuous Rating - Motor may be run continuously at these ratings./ Intermittent Operation 10% of every minute / Peak Operation - 1% of every minute
Mounting Type: 4-Bolt Flange -4 in. Pilot - SAE B
Port Orientation: Staggered Port
Actual Mounting Flange: 4-Bolt Flange - Sae B - with 4 in. Pilot Diameter
Actual Output Shaft: Taper
Actual Port Type: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
Continuous Flow Rate: 95 L/min
Intermittent Pressure: 260 bar
Maximum Continuous Oil Viscosity: 70 Saybold universal second
Maximum Speed-Continuous: 697 rpm
Maximum System Operating Temperature: -34 to 82 deg. C
Port Configuration: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
