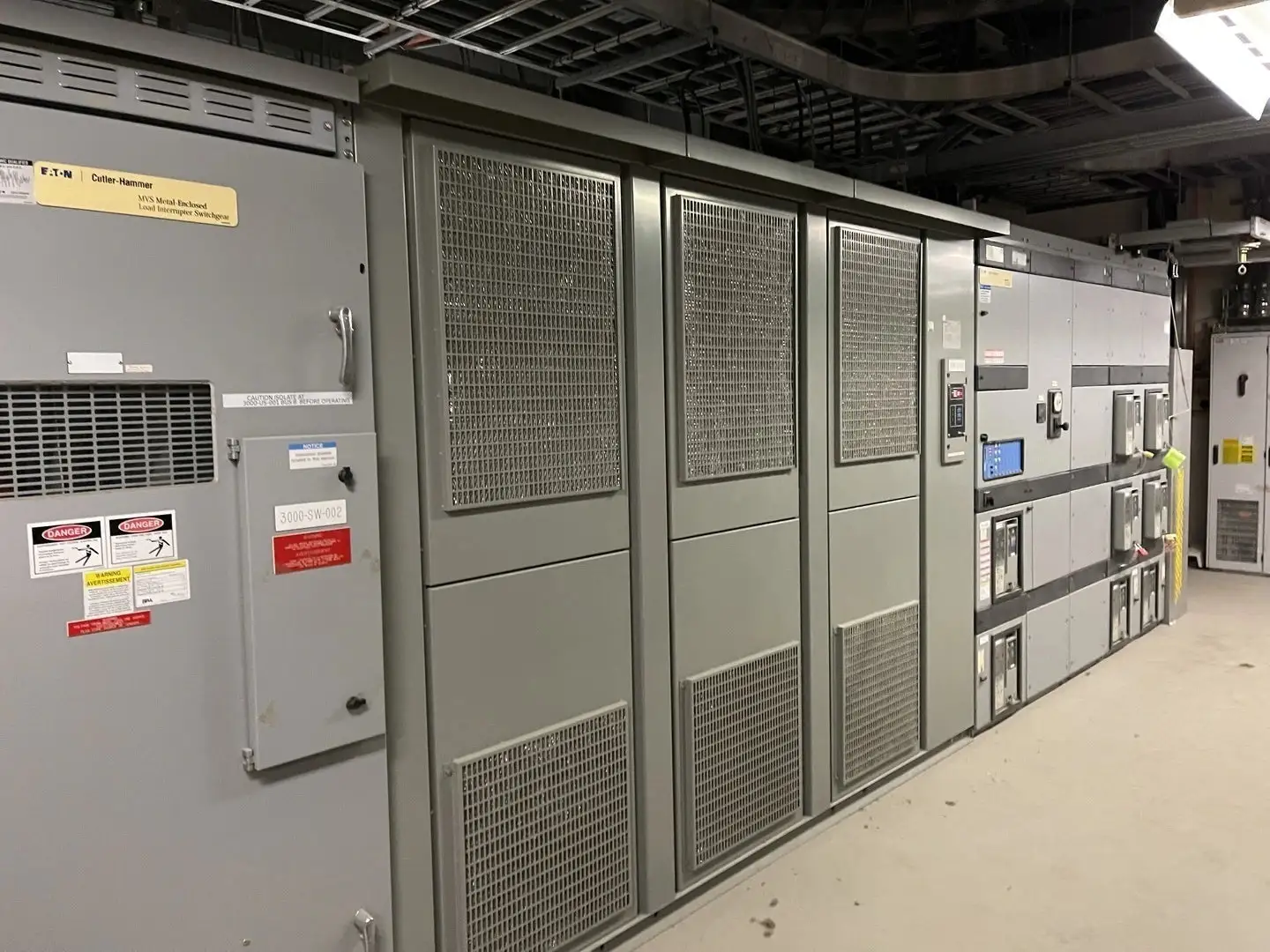

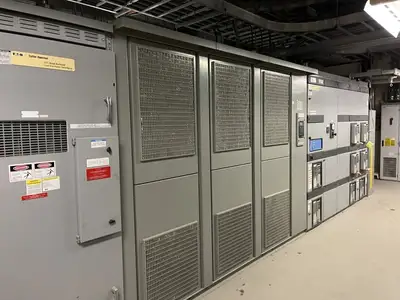

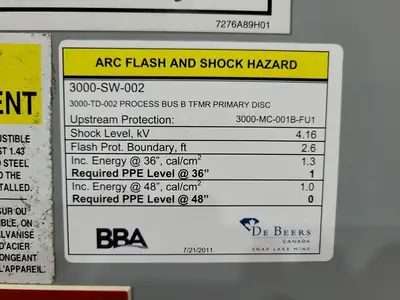

4000A Power Distribution Center w/ 3000kVA Transformer

Amps: 4000 amps
Phase: 3-phase
Major Components

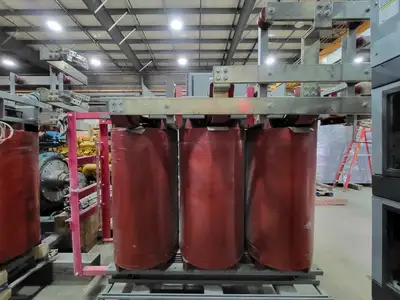

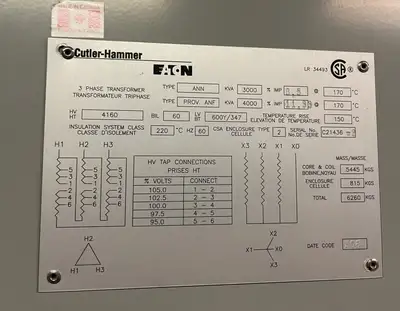

102487: 3000 kVA Transformer 4160V Pri., 600Y/347V Sec.
108866: 4.16kV MVS Load Interrupter Switch/Disconnect

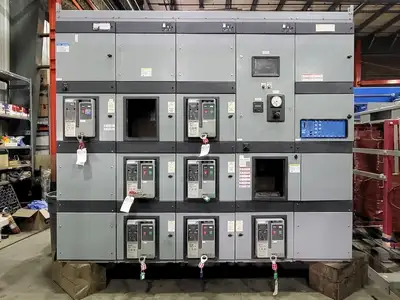

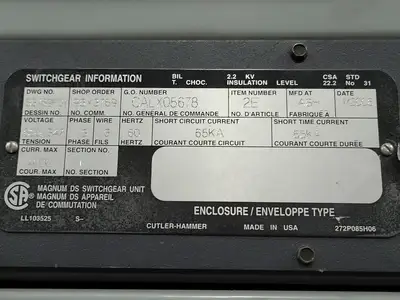

108865: Magnum DS 4000A, 600/347V LV Switchgear Unit
Available Circuit Breakers for Switchgear
108843: Magnum DS 1200A, 3-Pole Circuit Breaker w/ 1600A Frame MDS616
108844: Magnum DS 600A, 3-Pole Circuit Breaker w/ 800A Frame MDS608
102173: Magnum DS 2000A, 3-Pole Circuit Breaker MDS620
103232: Magnum DS 800A, 3-Pole Circuit Breaker w/ 1600A Frame MDS616
103233: Magnum DS 400A, 3-Pole Circuit Breaker w/ 800A Frame MDS608
110273: Magnum DS 200A, 3-Pole Circuit Breaker w/ 800A Frame MDS608
110274: Magnum DS 1000A, 3-Pole Circuit Breaker w/ 1600A Frame MDS616
110275: Magnum DS 3000A, 3-Pole Circuit Breaker MDS630
