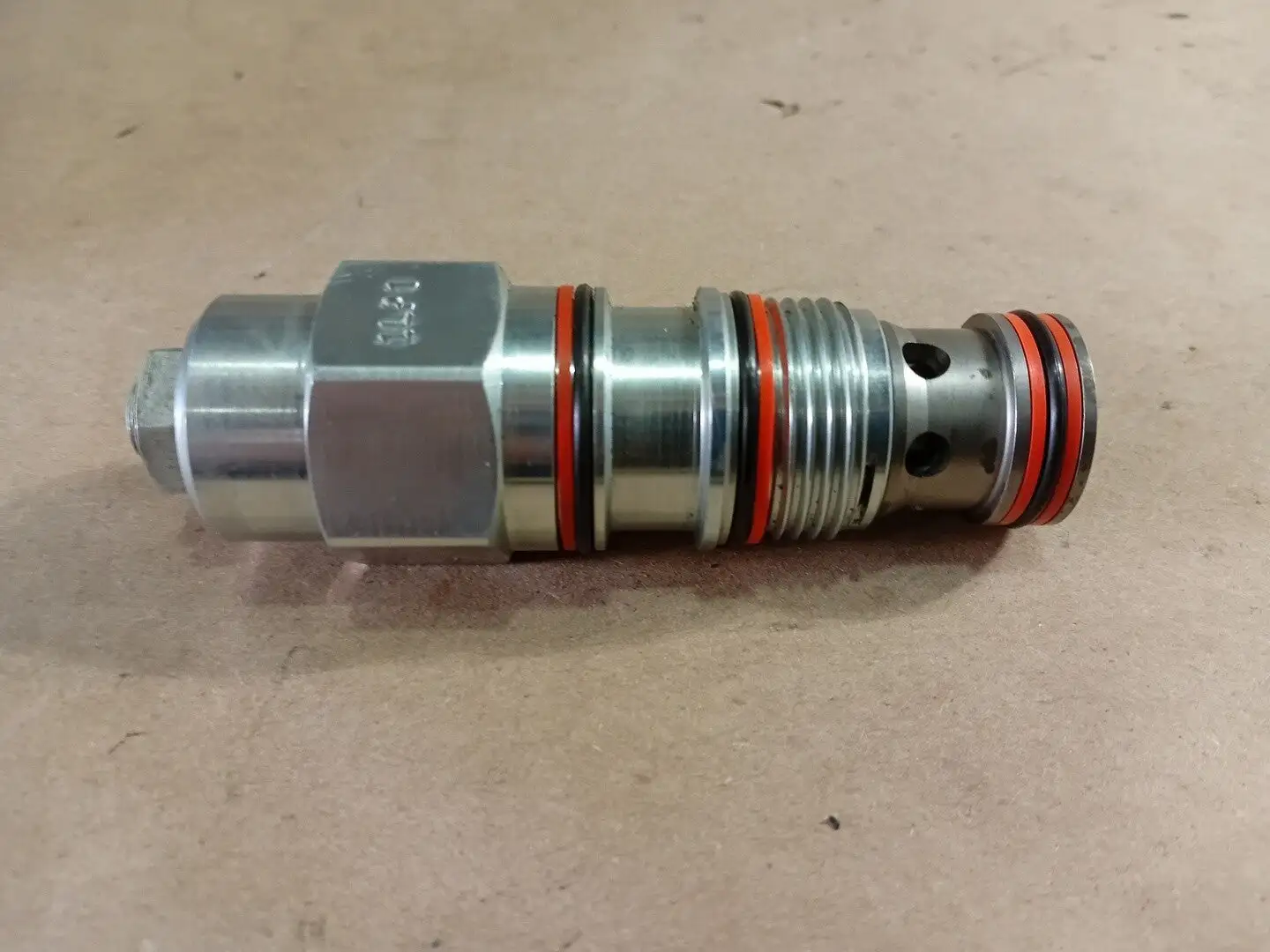

NEW SUN HYDRAULICS CBEA LHN

Cavity: T-2A
Series: 2
Capacity: 30 gpm
Pilot Ratio: 3:1
Maximum Recommended Load Pressure at Maximum Setting: 3075 psi
Maximum Setting: 4000 psi
Pilot Configuration: Bleed through
Factory Pressure Settings Established at: 2 in3/min.
Maximum Valve Leakage at Reseat: 5 drops/min.
Adjustment - No. of CCW Turns from Min. to Max. Setting: 3.75
Operating Characteristic: Standard
Reseat: >85% of setting
Valve Hex Size: 1 1/8 in.
Valve Installation Torque: 45 - 50 lbf ft
Adjustment Screw Internal Hex Size: 5/32 in.
Locknut Hex Size: 9/16 in.
Locknut Torque: 80 - 90 lbf in.
