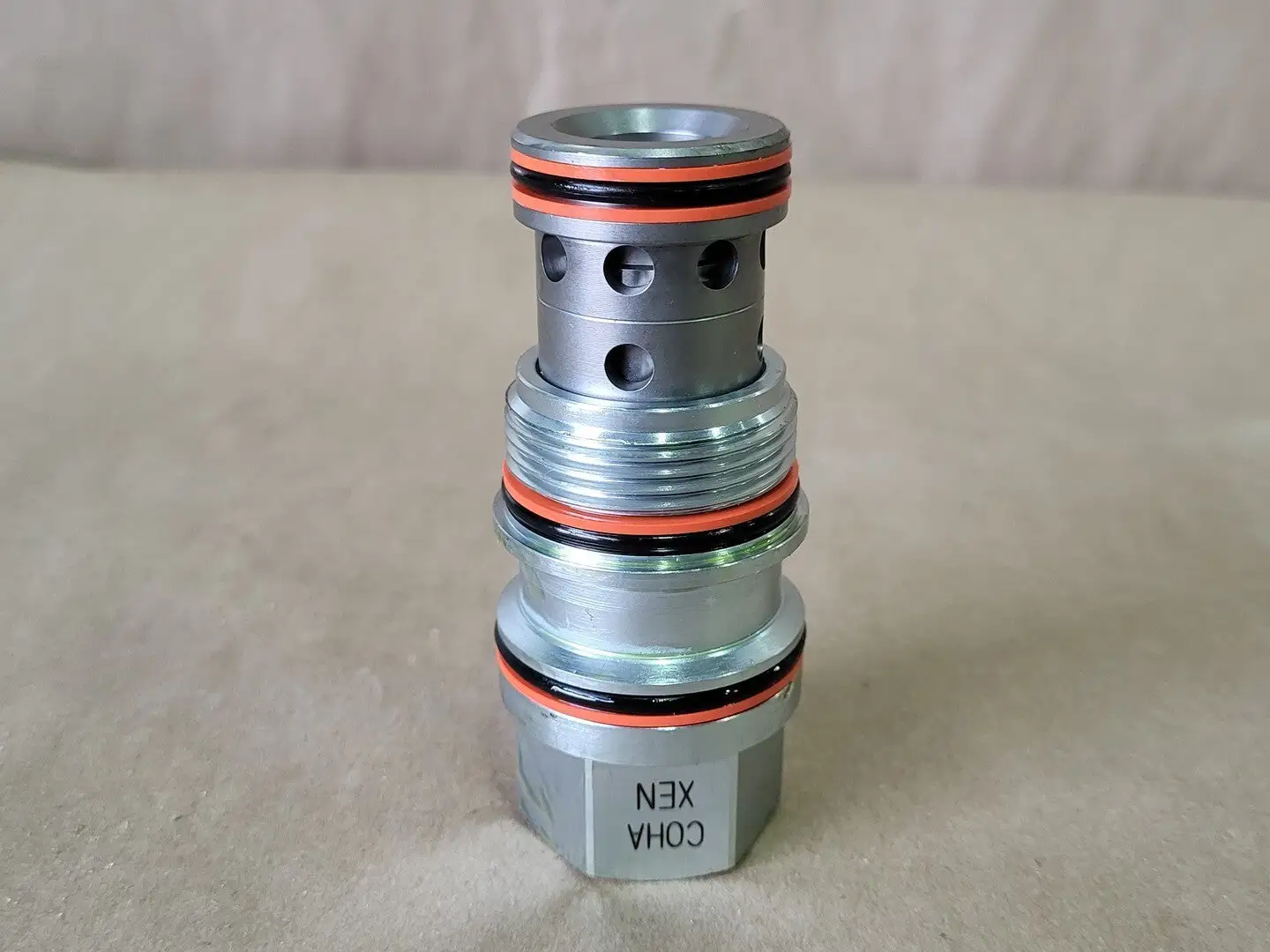

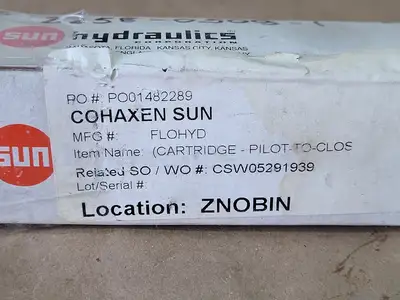

NEW SUN HYDRAULICS COHA-XEN

Product Type: Pilot-to-Close Check Valve
Valve Type: Hydraulic Cartridge Valve
Thread Type: Screw-in (Threaded Body)

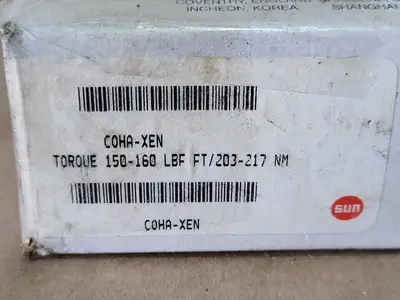

Torque Specification: 150-160 lbf-ft (203-217 Nm)
Flow Direction: Free flow in one direction; pilot pressure required to block reverse flow
Installation Torque: 203-217 Nm
Body Material: Steel or Zinc-Plated Steel
Port Size: Cartridge type - manifold installation required
Mounting: Cavity installation per Sun Hydraulics specification
Function: Blocks reverse flow unless pilot pressure is applied
Application: Hydraulic systems requiring reverse flow control and pilot control
Sun Part Series: COHA (Pilot-to-Close Check Valves)
