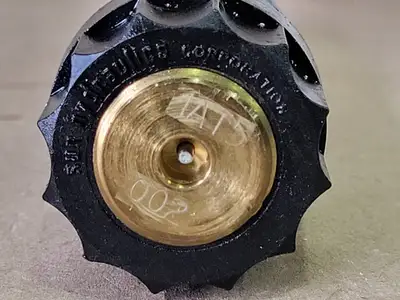

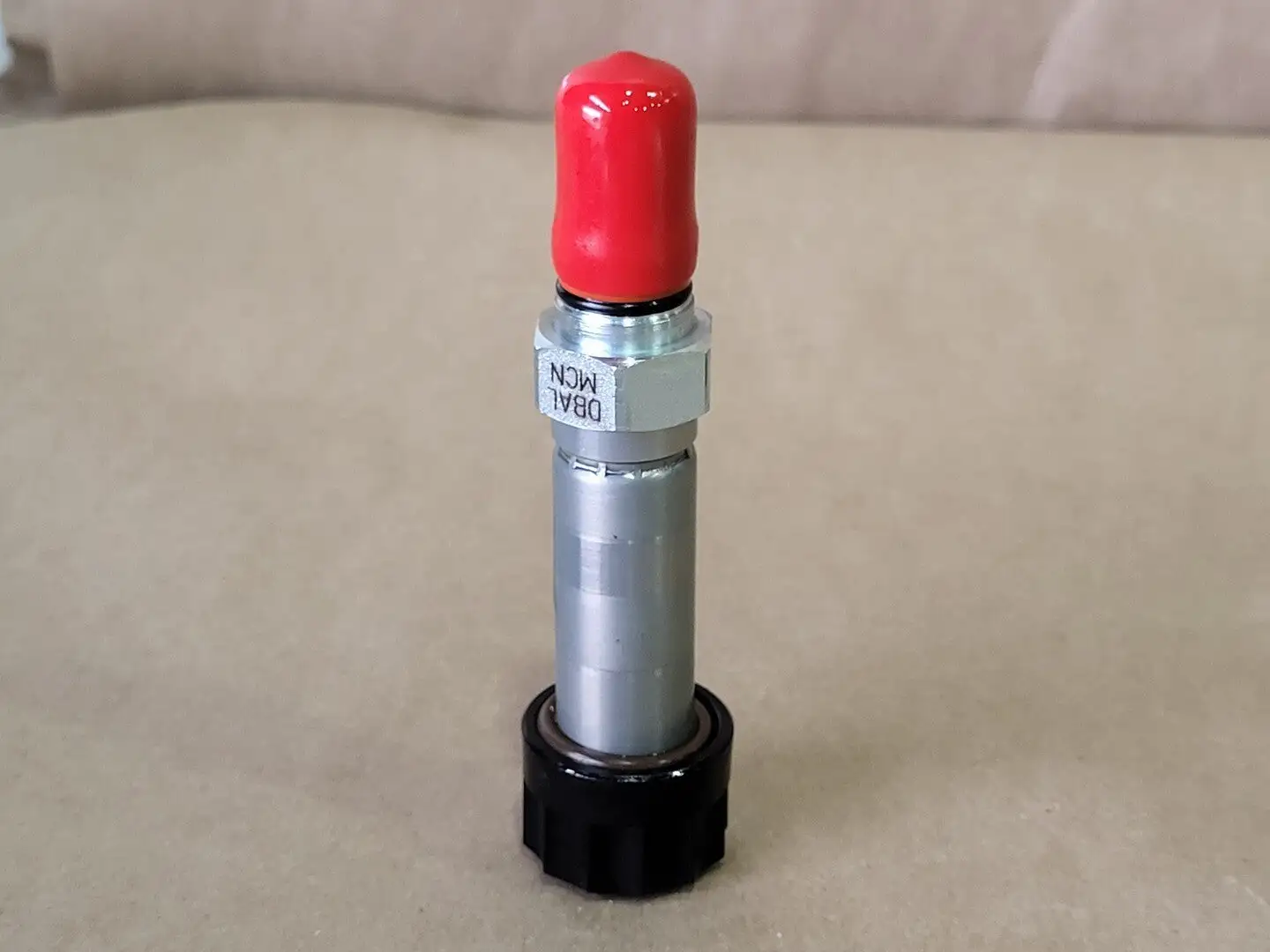

NEW SUN HYDRAULICS DBALMCN

Cavity: T-9A
Series: P
Capacity: 0.25 gpm
Maximum Operating Pressure: 5000 psi
Maximum Valve Leakage at 110 SUS (24 cSt): 10 drops/ min. @ 5000 psi
Manual Override Force Requirement: 10 lbs/ 1000 psi @ Port 1
Manual Override Stroke: .10 in.
Response Time - Typical: 50 ms
Switching Frequency: 15,000 max. cycles/hr
Solenoid Tube Diameter: 0.75 in.
Valve Hex Size: 7/8 in.
Valve Installation Size: 20-25 lbf ft
