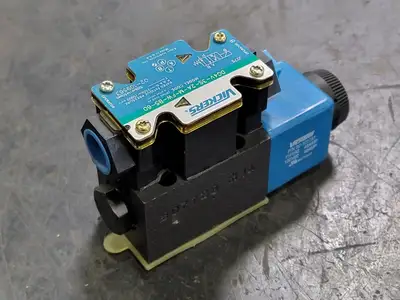

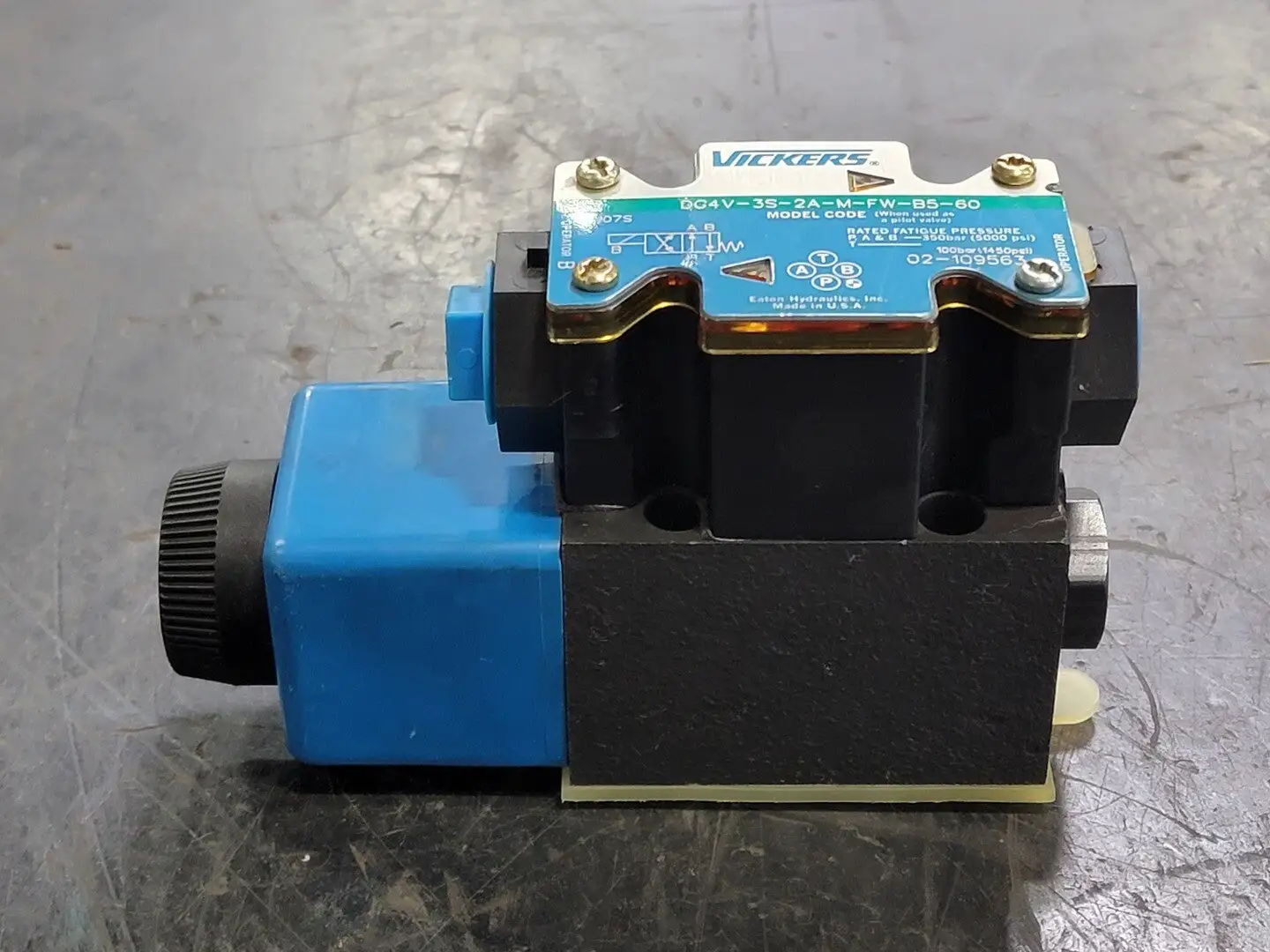

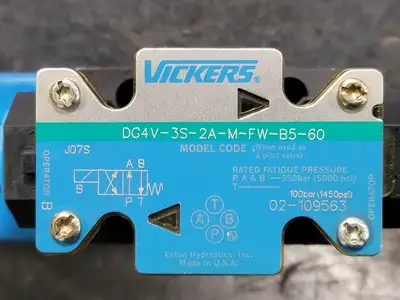

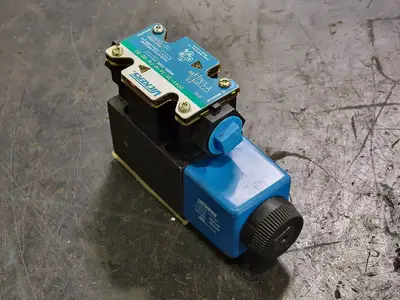

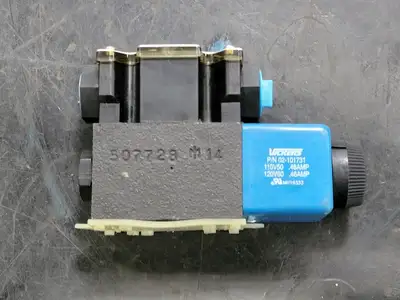

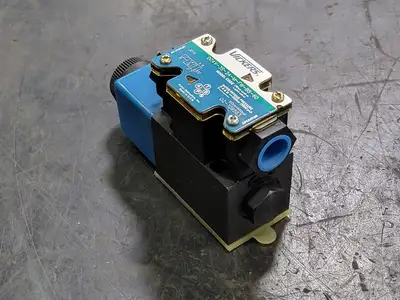

USED VICKERS DG4V-3S-2A-M-FW-B5-60
Overview
Specifications
Fuel Type: Oil
Max. Pressure: 5075 psi
Actuation: Solenoid
Body Material: Gray Iron
Check Location: Solenoid B

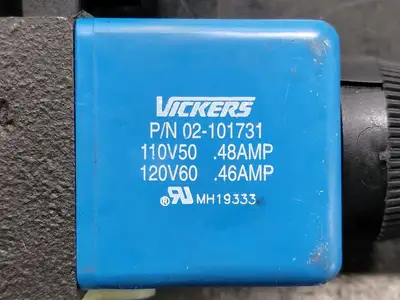

Coil Voltage: 110 VAC (50 Hz) / 120 VAC (60 Hz)
Design Number: 60 (Basic)
Electrical Connection: 1/2" NPT Thread Conduit Box
Electrical Connector Type: Flying Lead Coil with 1/2 in. NPT Thread Wiring Housing
Flow Direction: 4-Way
Fluid Comp: Petroleum Oil
Maximum Ambient Temperature: 158 deg. F
Maximum Flow Rate: 10.5 gpm
Maximum Operating Temperature: 158 deg. F
Minimum Operating Temperature: -4 deg. F
Mounting Type: Manifold, Sulphate
Seal Material: Buna-N
Series: DG4V-3 60 Design
Valve Size: D03
Spool Type: Closed Center (All Ports)
Spool Spring Arrangement: Spring Offset
T Port Pressure Rating: 1450 psi
Valve Application: Industrial
Valve Type: IV Directional Control Valves
Wiring Housing Type: 1/2" NPT Thread
