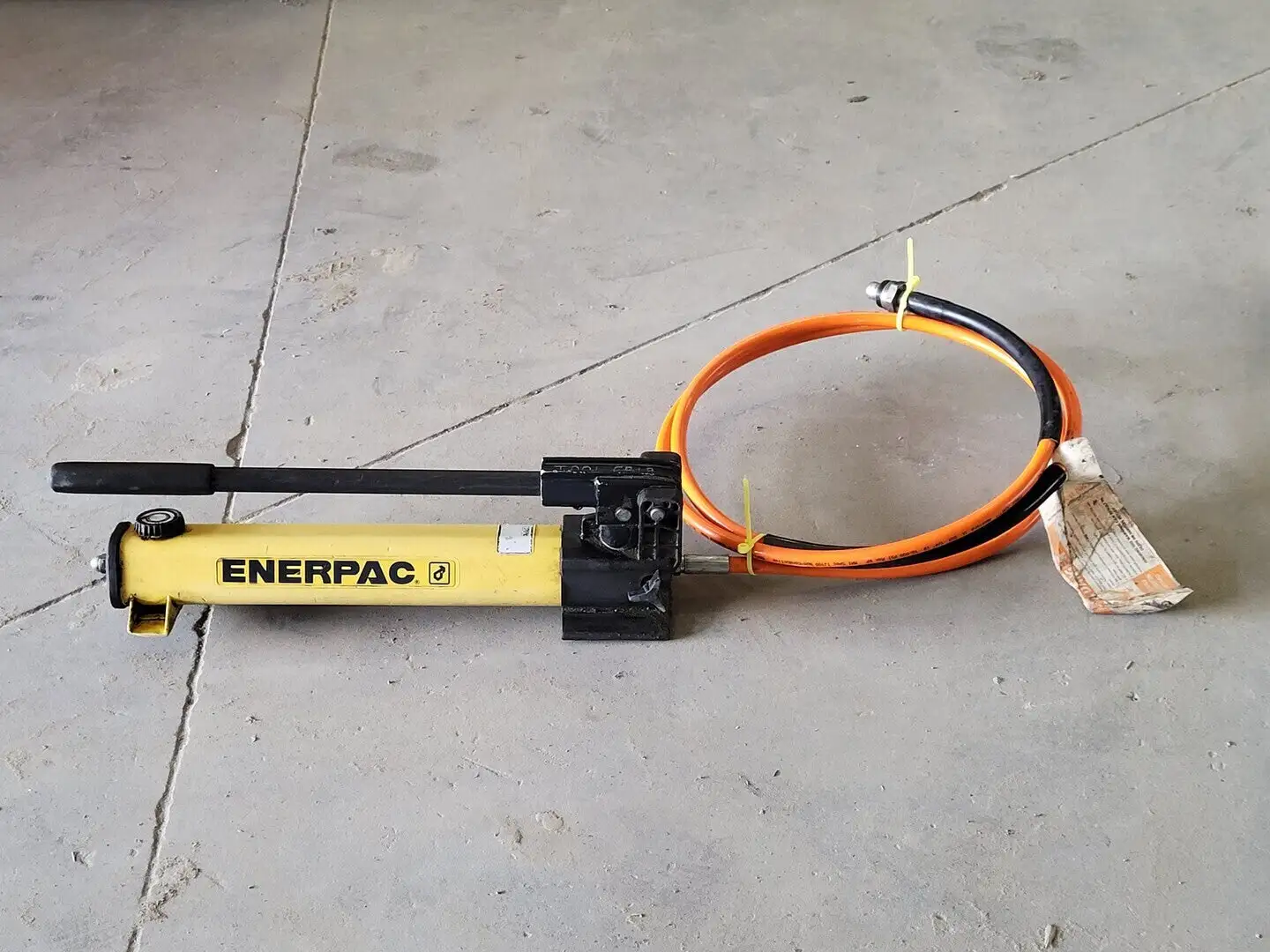

Hydraulic Hand Pump P39

Maximum Operating Pressure (psi): 10,000
Pressure Rating (psi) 1st Stage: 10,000
Cylinder Compatability: Single-acting
Pump Type: Single Speed
Reservoir Capacity (in3): 55
Usable Oil Capacity (in3): 55
Maximum Flow at Rated Pressure: .151 in3/stroke
Oil Displacement per Stroke (in3) 1st Stage: 0.151
Oil Displacement per Stroke (in3) 2nd Stage: -
Maximum Handle Effort (lbs): 85
Piston Stroke (in): 1
