The GAR series machine frame is built with durable steel, ensuring a strong foundation. Thanks to this robust frame and high-quality hydraulic and electrical components, the machines are designed for long-lasting performance. If you need to bend metal profiles or tubes, the Gator GAR series is an excellent choice.
| Roll Diameter Ø | 12.4" | 0.3 m |
| Shaft Diameter | 42" | 1,066.8 mm |
| Bending Speed (ft/min.) | 5 | 5 |
| Motor Power | 15 HP | 15 HP |
| Pipe Capacity | 1"x.16, 2"x.23, 4"x.31 | 1"x.16, 2"x.23, 4"x.31 |
| Round Tube Capacity | 1-1/2"x.08, 2-1/2"x.08, 4"x.1 | 1-1/2"x.08, 2-1/2"x.08, 4"x.1 |
| Round Bar | Ø1.58, Ø2.36, Ø2.76 | Ø1.58, Ø2.36, Ø2.76 |
| Angle Iron Leg-In | L2x2x3/16, L3x3x3/16, L4x4x3/8 | L2x2x3/16, L3x3x3/16, L4x4x3/8 |
| Angle Iron Let-Out | L2x2x3/16, L3x3x3/16, L4x4x3/8 | L2x2x3/16, L3x3x3/16, L4x4x3/8 |
| Dimensions | 55 x 59 x 69 in. | 55 x 59 x 69 in. |
| Weight | 5,511 lbs. | 5,511 lbs. |

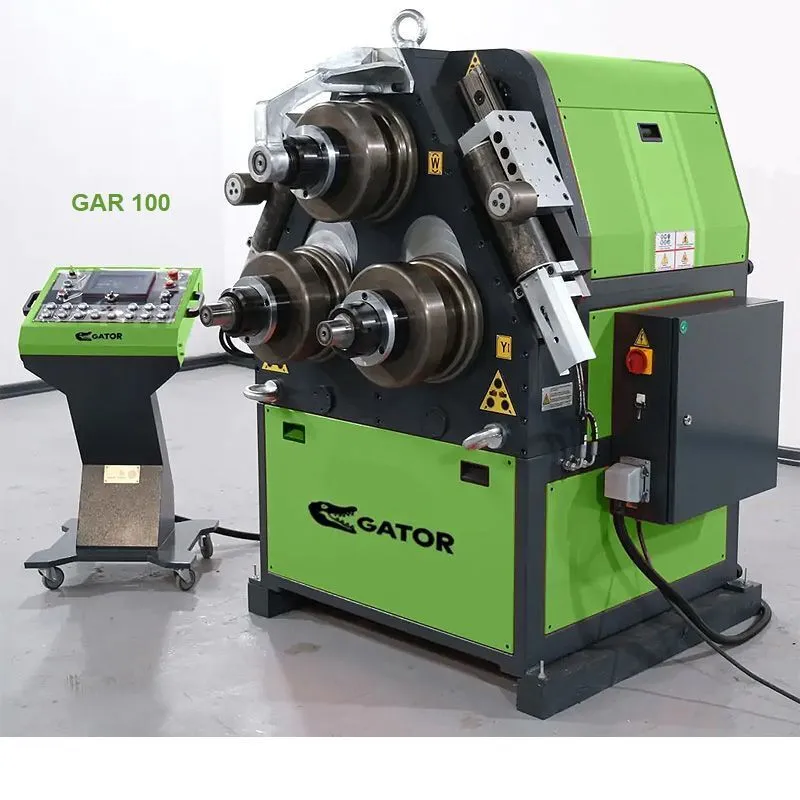

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor
