The GMC GML-3380T Heavy Duty Precision Gap Bed Lathe has a 32 x 80 inch capacity. Large spindle bore 4-3/4 inch. Heavy Duty spindle D1-11. Heavy Duty main motor 15HP, 220 or 440v, 3-phase. Free CARMAR DRO installed.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 33" | 838.2 mm |
| Distance Between Centers | 80" | 2,032 mm |
| Spindle Bore | 4.75" | 120.65 mm |
| Motor | 15 hp | 11.2 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Amps | 55 | 55 |
| Shipping Dimensions | 142 x 44 x 79 | 142 x 44 x 79 |
| Dimensions | 137 x 50 x 76 | 137 x 50 x 76 |
| Weight | 8,060 lbs. | 8,060 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

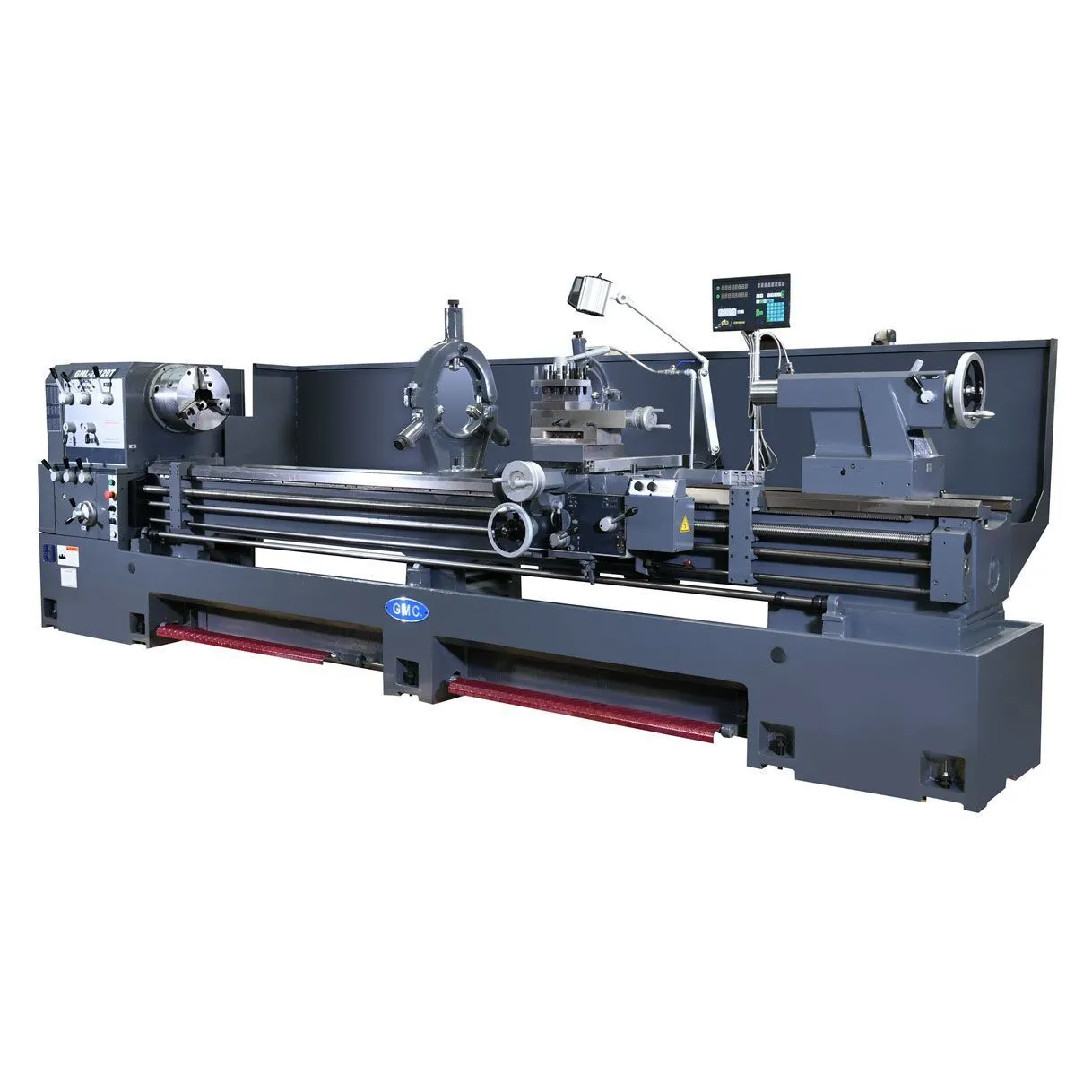

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
3900-5160: 6pc ALORIS type QC tool post set - $2,850.00
3900-5005: Live Center - $195.00
Taper Attachment, Installed - $3,150.00
20" steady rest with roller jaws - $4,950.00
