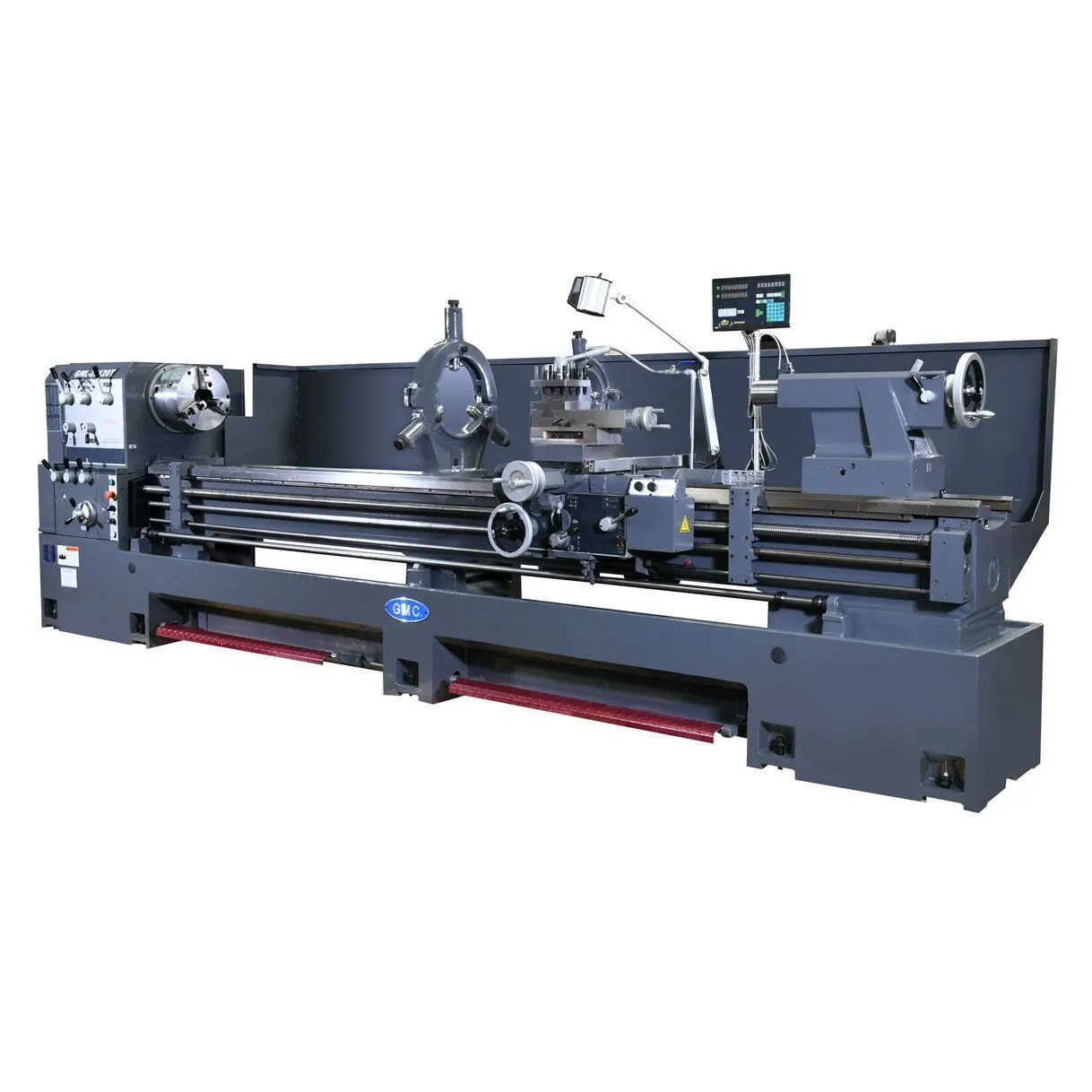

The GMC GML-2680T Heavy Duty Precision Gap Bed Lathe has a 26 x 80 inch capacity. Large spindle bore 4-3/4 inch. Heavy Duty spindle D1-11. Heavy Duty main motor 15HP, 220 or 440v, 3-phase. Free CARMAR DRO installed.
| Swing Over Bed | 26" | 660.4 mm |
| Distance Between Centers | 80" | 2,032 mm |
| Spindle Bore | 4.75" | 120.65 mm |
| Motor | 15 hp | 11.2 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Amps | 55 | 55 |
| Shipping Dimensions | 142 x 44 x 77 in. | 142 x 44 x 77 in. |
| Dimensions | 137 x 50 x 73 in. | 137 x 50 x 73 in. |
| Weight | 6,720 lbs. | 6,720 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
