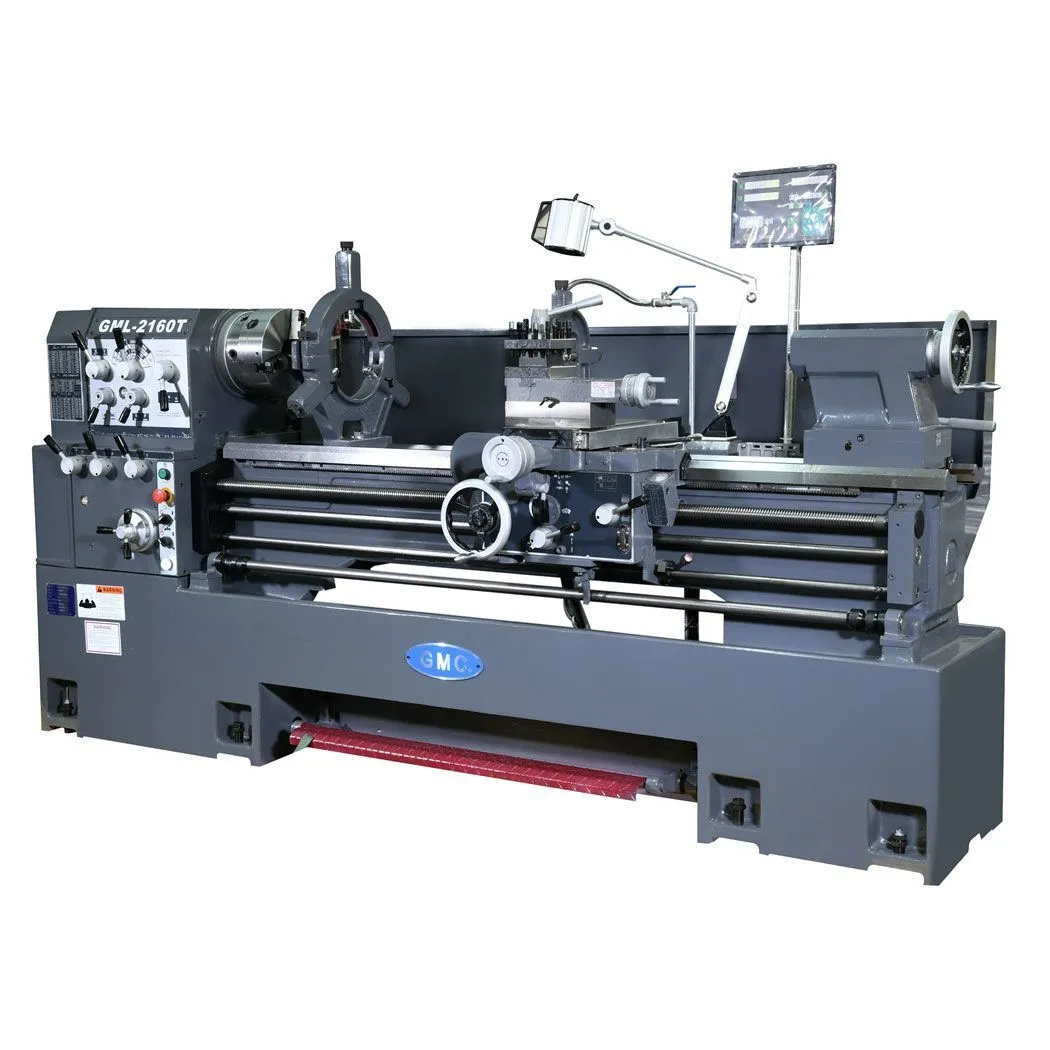

The GMC GML-2160T Heavy Duty Precision Gap Bed Lathe has a 21 x 60 inch capacity. Large spindle bore 3-1/8 inch. Heavy Duty spindle D1-8. Heavy Duty main motor 7-1/2HP, 220 or 440v, 3-phase. Free CARMAR DRO installed.
| Swing Over Bed | 21" | 533.4 mm |
| Distance Between Centers | 60" | 1,524 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Motor | 7.5 hp | 5.6 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Amps | 35 | 35 |
| Shipping Dimensions | 110 x 38 x 66 in. | 110 x 38 x 66 in. |
| Dimensions | 105 x 41 x 59 in. | 105 x 41 x 59 in. |
| Weight | 4,150 lbs. | 4,150 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
