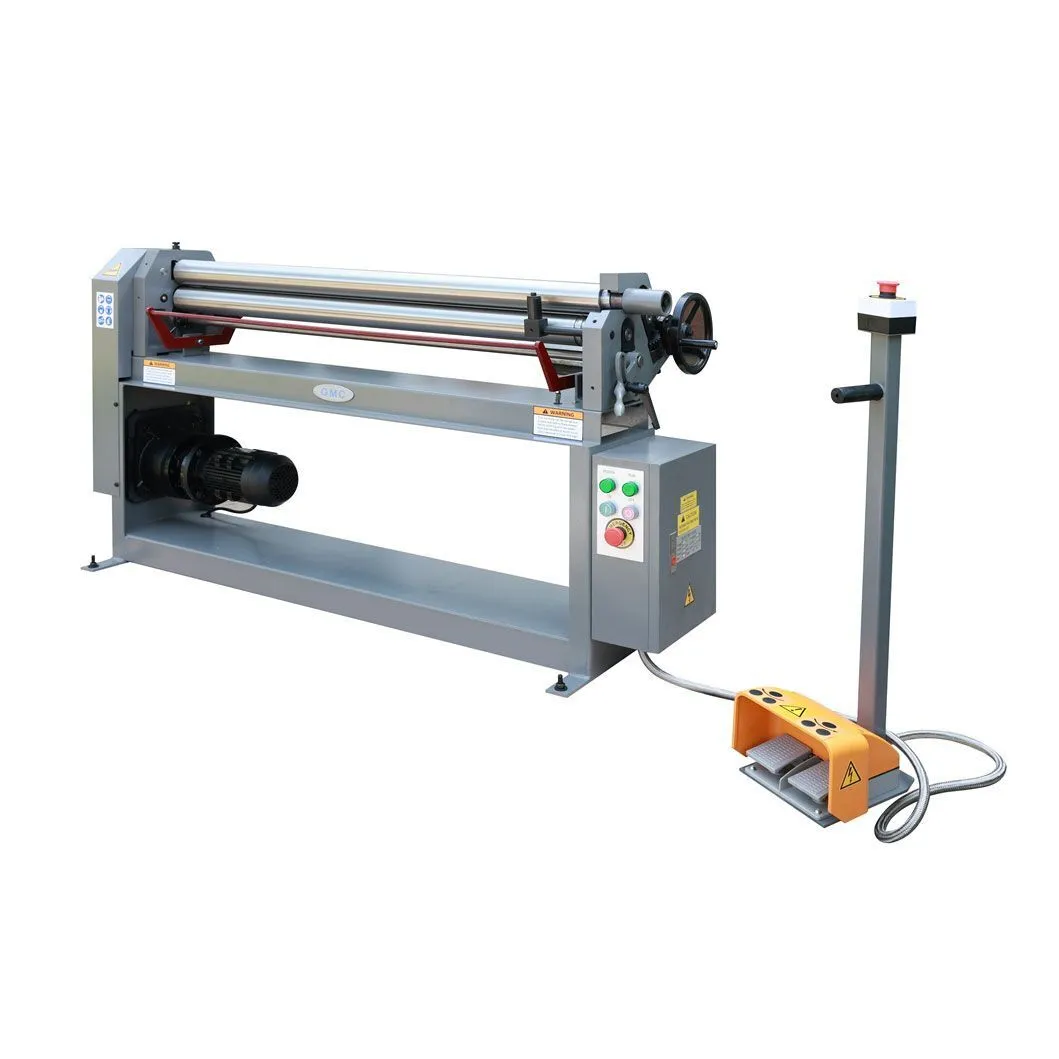

NEW GMC MACHINE TOOLS PSR-5016N-1PH

Florida, United States
Asking Price
USD $4,750.00
1 available
3,880Listings|10Followers
Overview
Plate Bending Rolls including Pinch

The GMC PSR-5016N single phase Powered Slip Roll has a rolling mild steel capacity of 4 ft (50 inch) x 16 gauge. All three rolls are made of high grade alloy steel, hardened. Heavy welded all steel construction for maximum rigidity.

Specs
Length of Rolls
4'
1.2 m
Length of Rolls
50"
1,270 mm
Roll Diameter
3"
76.2 mm
Rolling Capacity - Mild Steel
16 gauge
16 gauge
Rolling Capacity - Stainless Steel
20 gauge
20 gauge
Rolling Capacity - Soft aluminum
11 gauge
11 gauge
Min. Thickness
26 gauge
26 gauge
Min. Roll Bending Diameter Capacity
3.5"
88.9 mm
Wire Grooves
5/16 in., 3/8 in., 1/2 in.
5/16 in., 3/8 in., 1/2 in.
Rolls Opening
0.25"
6.35 mm
Roll Speed
201 in/min.
5,105.4 mm/min.
Motor Power
1.5 hp
1.1 kW
Phase
1-Phase
1-Phase
Voltage
220V
220V
Dimensions
68 x 28 x 47 in.
68 x 28 x 47 in.
Weight
837 lbs
837 lbs

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
