The GMC PSR-5016N three phase Powered Slip Roll has a rolling mild steel capacity of 4 ft (50 inch) x 16 gauge. All three rolls are made of high grade alloy steel, hardened. Heavy welded all steel construction for maximum rigidity.
| Length of Rolls | 4' | 1.2 m |
| Length of Rolls | 50" | 1,270 mm |
| Roll Diameter | 3" | 76.2 mm |
| Rolling Capacity - Mild Steel | 16 gauge | 16 gauge |
| Rolling Capacity - Stainless Steel | 22 gauge | 22 gauge |
| Rolling Capacity - Soft aluminum | 11 gauge | 11 gauge |
| Min. Thickness | 26 gauge | 26 gauge |
| Min. Roll Bending Diameter Capacity | 3.5" | 88.9 mm |
| (3) Grooves size | 5/16 in., 3/8 in., 1/2 in. | 5/16 in., 3/8 in., 1/2 in. |
| Rolls Opening | 0.25" | 6.35 mm |
| Roll Speed | 201 in/min. | 5,105.4 mm/min. |
| Power | 1 hp | 0.7 kW |
| Phase | 3-Phase | 3-Phase |
| Voltage | 220V/440V | 220V/440V |
| Dimensions | 68 x 28 x 47 in. | 68 x 28 x 47 in. |
| Weight | 837 lbs | 837 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

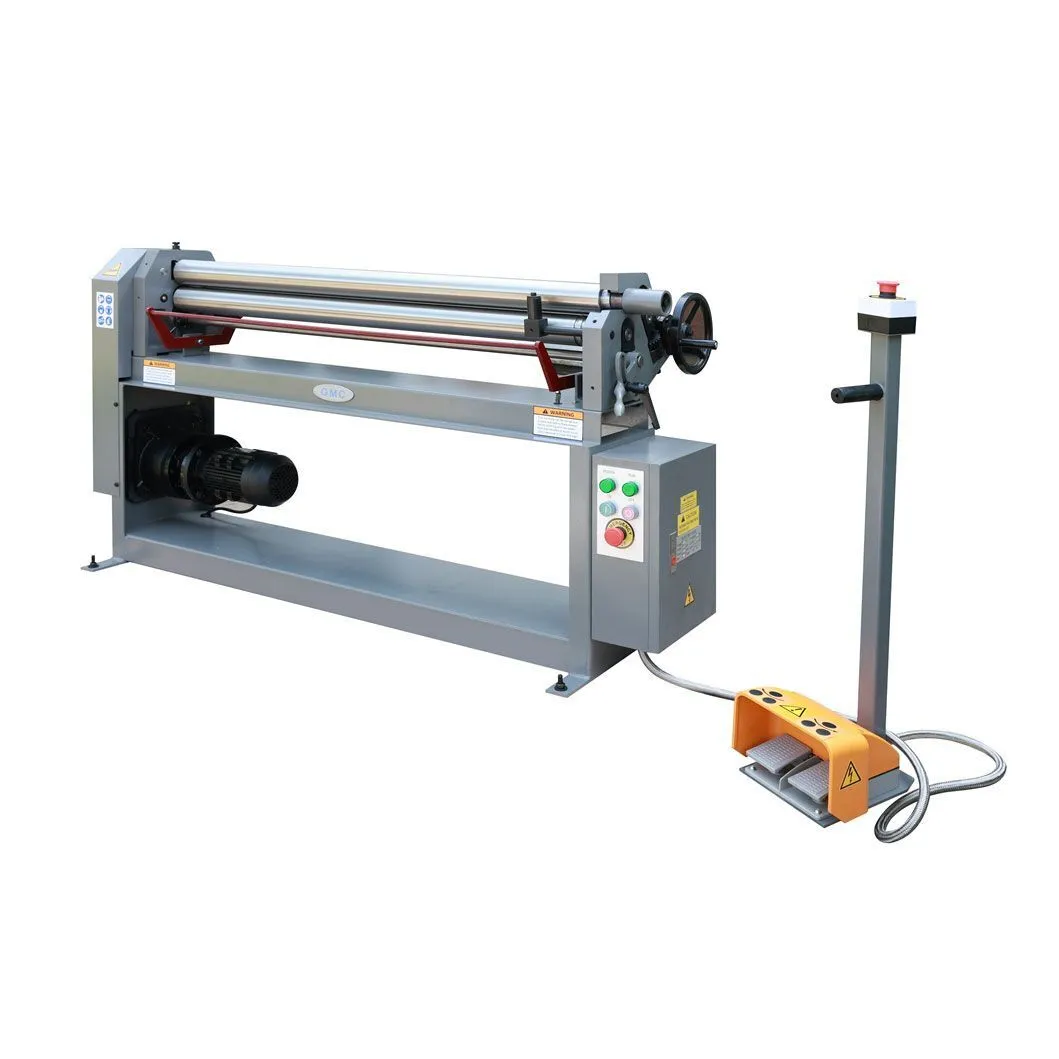

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
