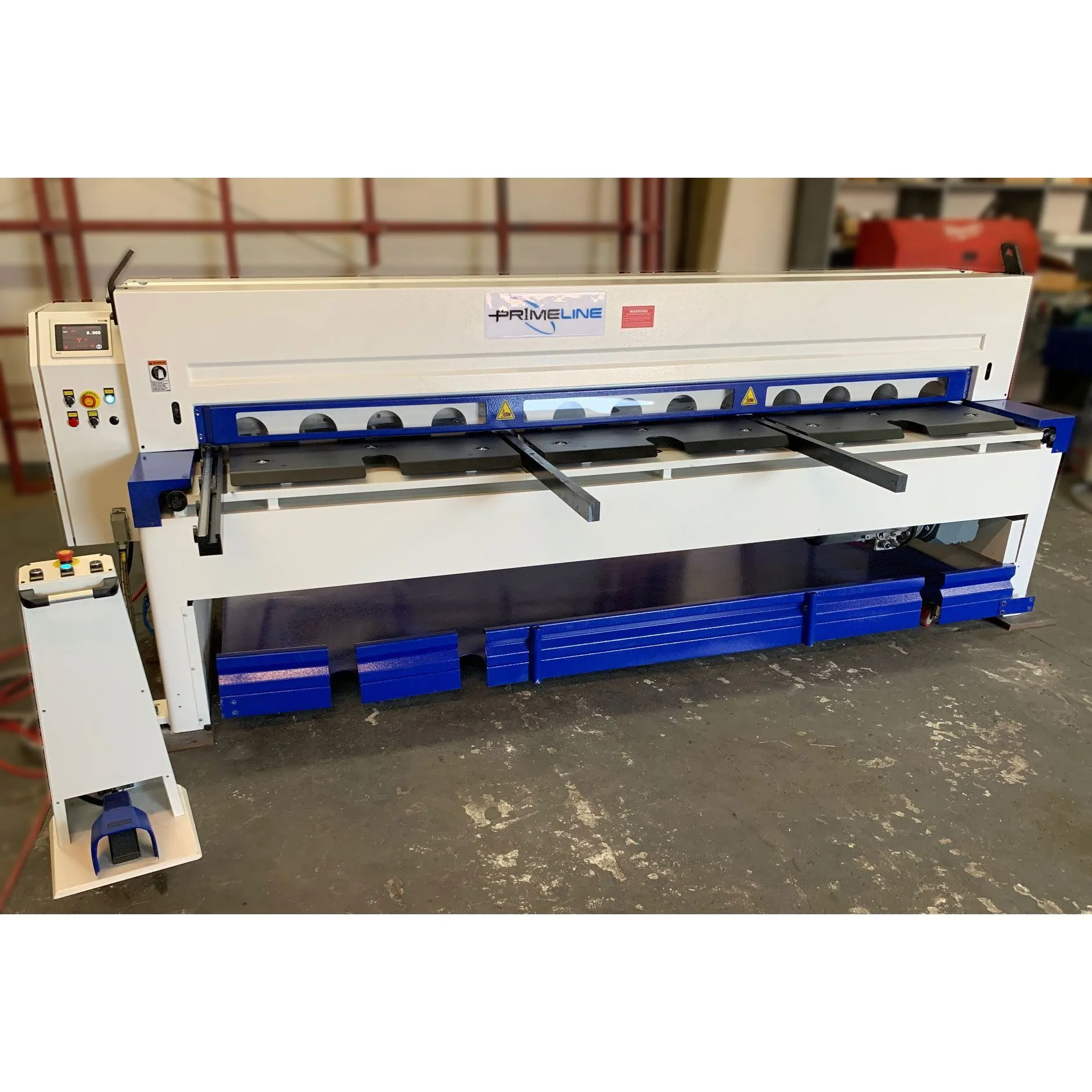

These PRIMELINE Electro-Mechanical Power Shears have a cutting length of 10 feet with a mild steel capacity of 10 X .125" MS Mechanical Power Squaring Shear with Manual Front-Operated Backgauge, Pneumatic Sheet Support Device with Front Return and Material Cart and Go-To Power Back Gauge.The Pneumatic Rear Sheet Support Device with Front Return returns cut part to front with Material Table/Cart to catch cut parts returned to front of machine.This mechanical shear machine has an all steel frame.
| Cutting Length | 120" | 3,048 mm |
| Capacity - Mild Steel (ga) | 11 gauge | 11 gauge |
| Capacity - Mild Steel (in.) | 0.125" | 3.175 mm |
| Capacity - Stainless Steel (ga) | 14 gauge | 14 gauge |
| Capacity - Stainless Steel (in.) | 0.078" | 1.9812 mm |
| Capacity - Aluminum (in.) | 0.135" | 3.429 mm |
| Power | 5.3 hp | 4 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Dimensions | 142 x 71 x 52 in. | 142 x 71 x 52 in. |
| Weight | 9900 | 9900 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
