NEW GMC MACHINE TOOLS HDC-4820-6T

Florida, United States
Asking Price
USD $47,850.00
1 available
3,886Listings|10Followers
Overview
Winding and Unwinding

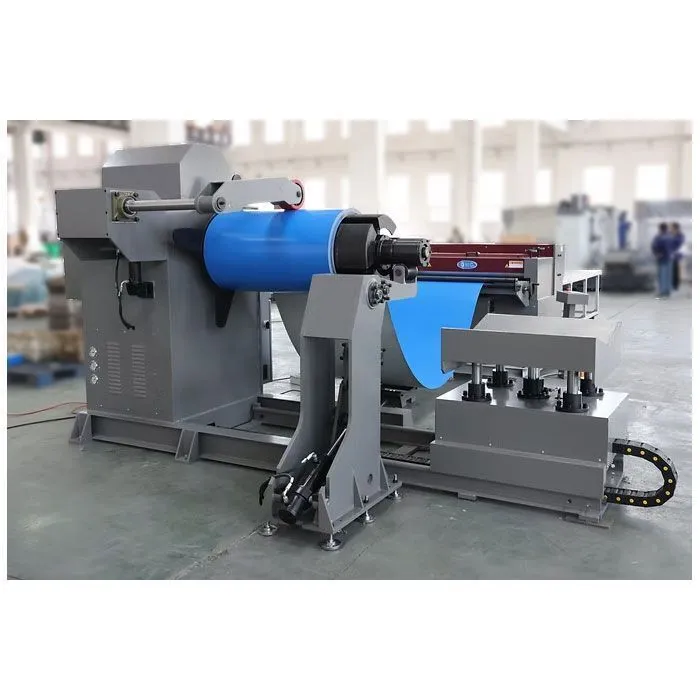

The GMC HDC-4820-6T Hydraulic Decoiler has a 48 in. Coil size and 20 in. coil ID. Hydraulic clamping for coil and hydraulic coil feeding table with height control. Hydraulic front and top support arms. American design and Taiwan quality machine.

Specs
Coil Size
48 in. Wide
48 in. Wide
Coil ID
20 in., hydraulic clamping range from 18-1/2 to 20-3/4 in.
20 in., hydraulic clamping range from 18-1/2 to 20-3/4 in.
Max Coil OD
47 in.
47 in.
Max coil weight 6 Tons
13,200 lb
5,987.4 kg
Speed
0-100 ft/min
0-100 ft/min
Hydraulic system pressure
0-15Mpa
0-15Mpa
Main Motor
7-1/2HP, 220V, 3-phase
7-1/2HP, 220V, 3-phase
Hydraulic Motor
4HP, 220V, 3-phase
4HP, 220V, 3-phase
Machine Net Weight
10,150 lb
4,604 kg
Shipping Weight
11,310 lb
5,130.1 kg
Shipping Dimensions
170 x 71 x 94 in.
170 x 71 x 94 in.
Dimensions
166 x 95 x 85 in.
166 x 95 x 85 in.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
