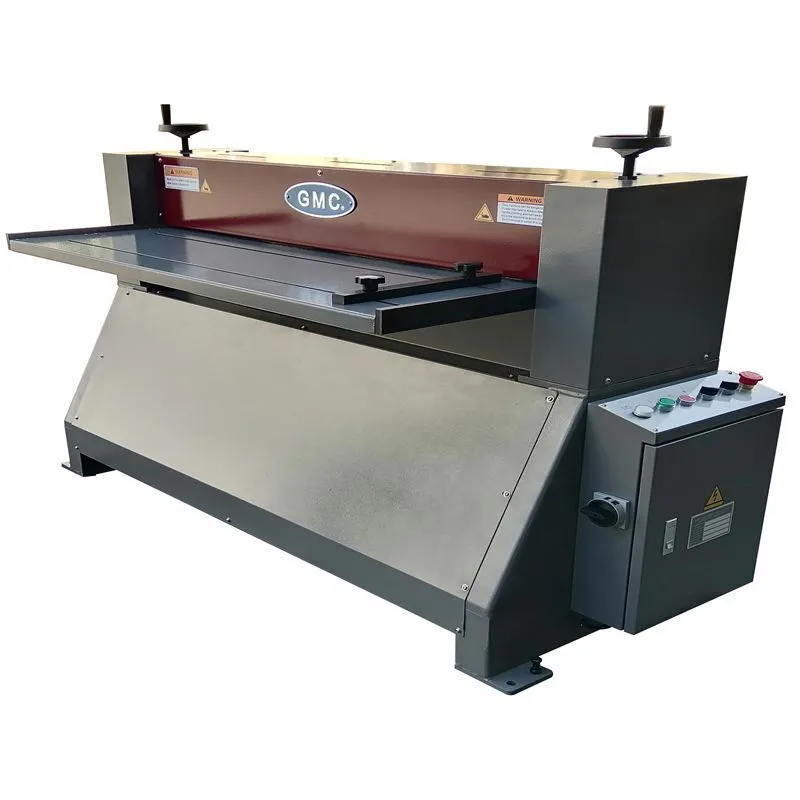

The GMC PS-4816D Power Slitter has a mild steel capacity gang slit from 16Ga to 30Ga. Easy slide away of slitting blades for cut to length operations without slitting. American design and Taiwan quality machine.
| Max Cutting Width | 49" | 1,244.6 mm |
| Motor | 1-1/2HP | 1-1/2HP |
| Electics | 110v | 110v |
| Amperage draw | 18A | 18A |
| Feed Speed | 57 FPM | 57 FPM |
| Shaft Diameter | 3" | 76.2 mm |
| Slitting and Shearing Capacity - Mild Steel (Hot Roll) Tensile 60,000PSI | 48 in. x 16 ga | 48 in. x 16 ga |
| Slitting and Shearing Capacity - Stainless Steel and Cold Roll, tensile 85,000PSI | 48 in. x 20 ga | 48 in. x 20 ga |
| Slitting and Shearing Capacity - Soft Aluminum, tensile 28,000PSI | 48 in. x 12 ga | 48 in. x 12 ga |
| Slitting and Shearing Capacity - Min. Thickness | 30 ga | 30 ga |
| Slitting and shearing capacity - Max. slitting length | 20 ft | 20 ft |
| Infeed/outfeed table height | 33.5" | 850.9 mm |
| Slitting Blades | 4 pairs | 4 pairs |
| Slitting Capacity: Number of cuts/strips - 16Ga mild steel | 1 cut / 2 strips | 1 cut / 2 strips |
| Slitting Capacity: Number of cuts/strips - 18Ga mild steel | 1 cuts / 2 strips | 1 cuts / 2 strips |
| Slitting Capacity: Number of cuts/strips - 20Ga mild steel | 2 cuts / 3 strips | 2 cuts / 3 strips |
| Slitting Capacity: Number of cuts/strips - 22Ga-24Ga mild steel | 3 cuts / 4 strips | 3 cuts / 4 strips |
| Slitting Capacity: Number of cuts/strips - 26Ga-30Ga mild steel | 4 cuts / 5 strips | 4 cuts / 5 strips |
| Shipping Weight | 1,145 lb | 519.4 kg |
| Shipping Dimensions | 75 x 34 x 49 in. | 75 x 34 x 49 in. |
| Dimensions | 68 x 27 x 47 in. | 68 x 27 x 47 in. |
| Weight | 1012 | 1012 |
*Decoiler specifications - manually operated:
For coil size 48 in. width, 20 in. coil ID
Max coil weight 2T = 4,500 lbs.
Dimensions: 71 x 32 x 39-1/2 in.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
FT-10: 10ft Outfeed table, 121”x49”x32” LWH: $2,750.00
FT-10: 10ft Infeed table, 121”x49”x32” LWH: $2,750.00
DC-4820-2T: Decoiler, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight: $2,750.00
Extra set of slitter blades for PS-4816D: $1,950.00
