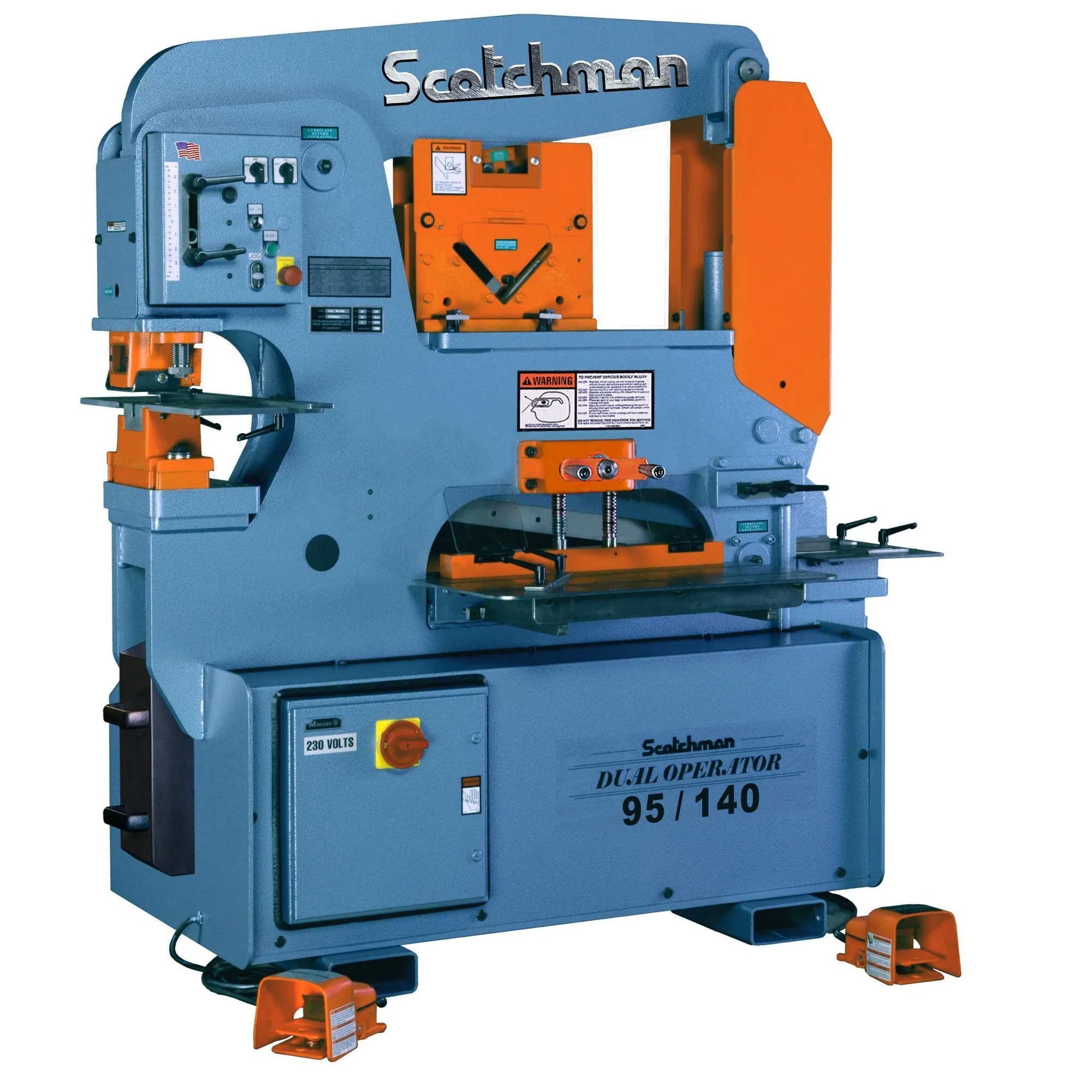

The Scotchman DO 95/140/24M dual operator ironworker has four built-in features including a 95-ton punch (1-3/16” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 8”, 3/8” x 24”) and a rectangle notcher. The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity. Scotchman offers several American-made Dual Operator Ironworker Models ranging from 70 to 150 tons of punching power.
| Punch Tonnage | 95 T | 86,182.7 kg |
| Punch Max. Capacity | 1-3/16" in 1" | 1-3/16" in 1" |
| Flat Bar Shear | (Sabre Blade - Std) 1" x 8", 3/4" x 12", 1/2" x 16", 3/8" x 24" | (Sabre Blade - Std) 1" x 8", 3/4" x 12", 1/2" x 16", 3/8" x 24" |
| Flat Bar Shear - Tonnage | 140 T | 127,006 kg |
| Flat Bar Shear Length | 24" | 609.6 mm |
| Angle Shear 90° | 6" x 6" x 1/2" | 6" x 6" x 1/2" |
| Angle Shear 45° | (with Bar Shear) 3" x 3" x 3/8" 4" x 4" x 1/2" | (with Bar Shear) 3" x 3" x 3/8" 4" x 4" x 1/2" |
| Rod Shear - Round Rod (Max.) | 1/4" to 1-1/4", 9 Cavity | 1/4" to 1-1/4", 9 Cavity |
| Rod Shear - Square Rod (Max.) | 1/4" to 1", 1 Cavity | 1/4" to 1", 1 Cavity |
| Square Tube Shear | 1/2" to 2", 12 gauge | 1/2" to 2", 12 gauge |
| Strut Shear | Samples Required | Samples Required |
| Channel Shear | 2" to 6" adj. | 2" to 6" adj. |
| V Notcher | 3" x 3" x 3/8" / (90°) 6" x 6" x 5/16" | 3" x 3" x 3/8" / (90°) 6" x 6" x 5/16" |
| Pipe Notcher | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" |
| Notching in Leg of Channel | 6" to 10" | 6" to 10" |
| Brake - 12 inch | 80 T | 72,574.9 kg |
| Brake - 24 inch | 55 T | 49,895.2 kg |
| Open End Brake | Max. 1/4" x 5" Flat or Angle Iron | Max. 1/4" x 5" Flat or Angle Iron |
| Offset Die Holder | Max. 40 ton | Max. 40 ton |
| Picket Tool | 1/2", 3/4", 1", 16 gauge | 1/2", 3/4", 1", 16 gauge |
| Special Tooling | 4" Max. Dia. | 4" Max. Dia. |
| Throat Depth | 9" | 228.6 mm |
| Strokes Per Minute in Light Material | 1/4" stroke [Punch Station] | 1/4" stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" stroke [Punch Station] | 3/4" stroke [Punch Station] |
| Electrics | 3-Phase, 60hz | 3-Phase, 60hz |
| Hydraulics | 3,500/3,500 psi | 3,500/3,500 psi |
| Rated on | 65,000 PSI Tensile | A 36 Mild Steel | 65,000 PSI Tensile | A 36 Mild Steel |
| Shipping Weight | 3,800 lb | 1,723.7 kg |
| Dimensions | L-65" x W-30" x H-72-1/8" | L-65" x W-30" x H-72-1/8" |
Optional Voltages:
014708: DO 95/140-24M - 10 hp 3 ph 208V
014710: DO 95/140-24M - 10 hp 3 ph 230V
014735: DO 95/140-24M - 10 hp 3 ph 460V
014720: DO 95/140-24M - 10 hp 1 ph, 220V
DO 95/140-24M - 3ph, 60hz Less Angel Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional items - Call for price:
Open End Brake
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48" Back Gauge
Laser Light
12" & 24" Brake (*Back Gauge sold separately.)
Rectangle Notcher
Channel Shear
Urethane Stripper
6" x 6" Die Holder
Offset Die Holder
Rod Shear
Unequal Leg Angle Blades
Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes
Unistrut Shear
Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
24" x 5' Conveyor with Angle Iron Support attached to DO70/110
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Angle Iron Miter Guide
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Tool Table Extension includes Punch & Die Storage Drawer (65+Ton)
*Punches & Dies sold separately.
LED Light. Available on punch station and shear station.
