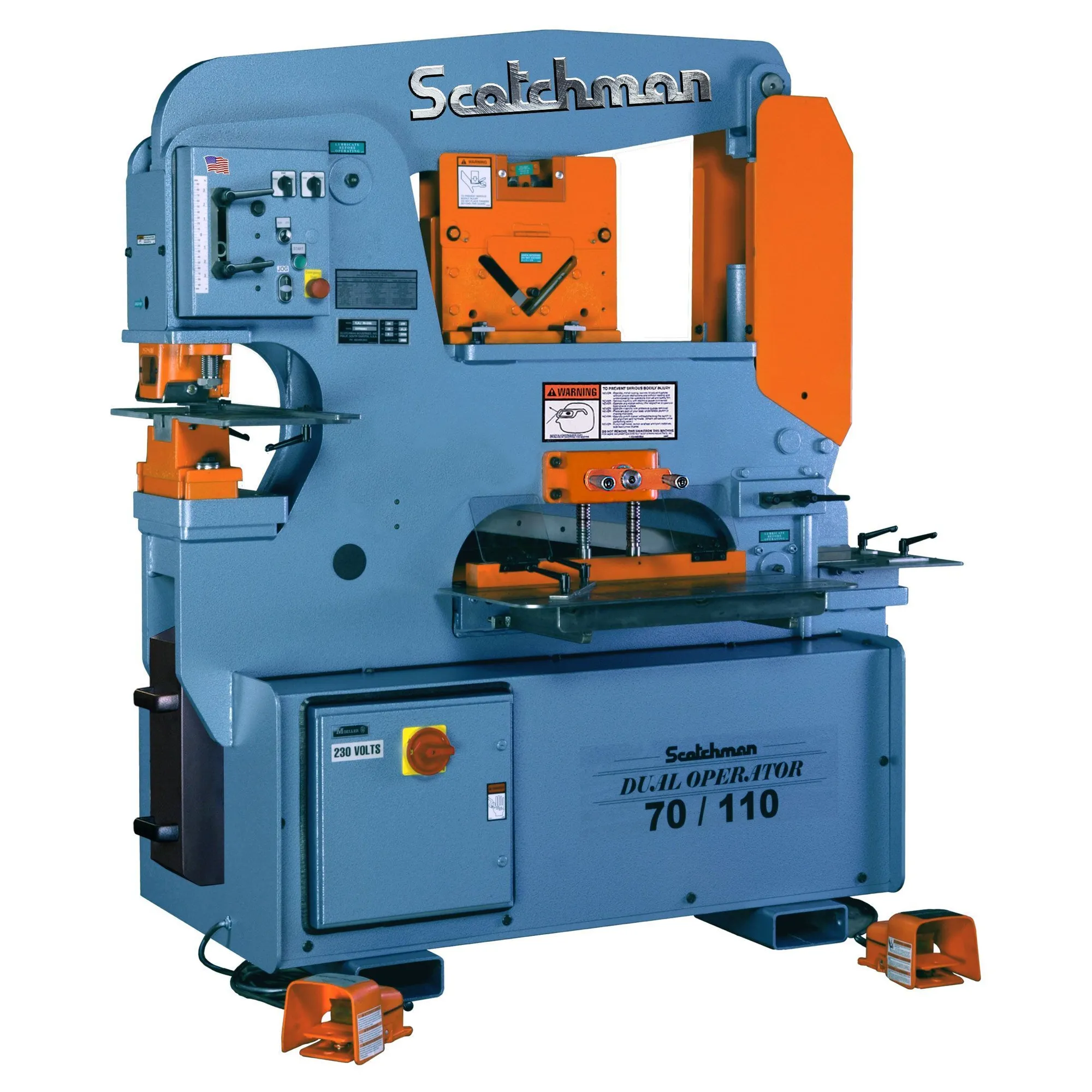

NEW SCOTCHMAN DO-70/110-24M
Overview
The Scotchman DO 70/110-24M dual operator has four built-in features including a 70-ton punch (1-1/16” in 3/4"), the largest capacity angle shear for a 70-ton on the market (6” x 6” x 1/2"), a 24” plate shear (1” x 6” up to 3/8” x 24”) and a rectangle notcher. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. Combining these features with the large tool table for quick change of optional tooling plus our best in the business, 3-year parts warranty makes the Scotchman DO 70/110-24M hydraulic ironworker an industry leader.
Specs
Optional Voltages:
013908: DO 70/110-24M - 10 hp 3 ph 208V
013910: DO 70/110-24M - 10 hp 3 ph 230V
013935: DO 70/110-24M - 10 hp 3 ph 460V
013920: DO 70/110-24M - 10 hp 1 ph, 220V
DO 70/110-24M - 3ph, 60hz Less Angle Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Equipped With
Optional Items - Call for price:
Open End Brake
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48" Back Gauge
Laser Light
12" & 24" Brake (*Back Gauge sold separately.)
Rectangle Notcher
Channel Shear
Urethane Stripper
6" x 6" Die Holder
Offset Die Holder
Rod Shear
Unequal Leg Angle Blades
Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes
Unistrut Shear
Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
Open End Brake for Notcher End
24" x 5' Conveyor with Angle Iron Support attached to DO70/110
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Angle Iron Miter Guide
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Tool Table Extension includes Punch & Die Storage Drawer (65+Ton)
*Punches & Dies sold separately.
LED Light. Available on punch station and shear station.
