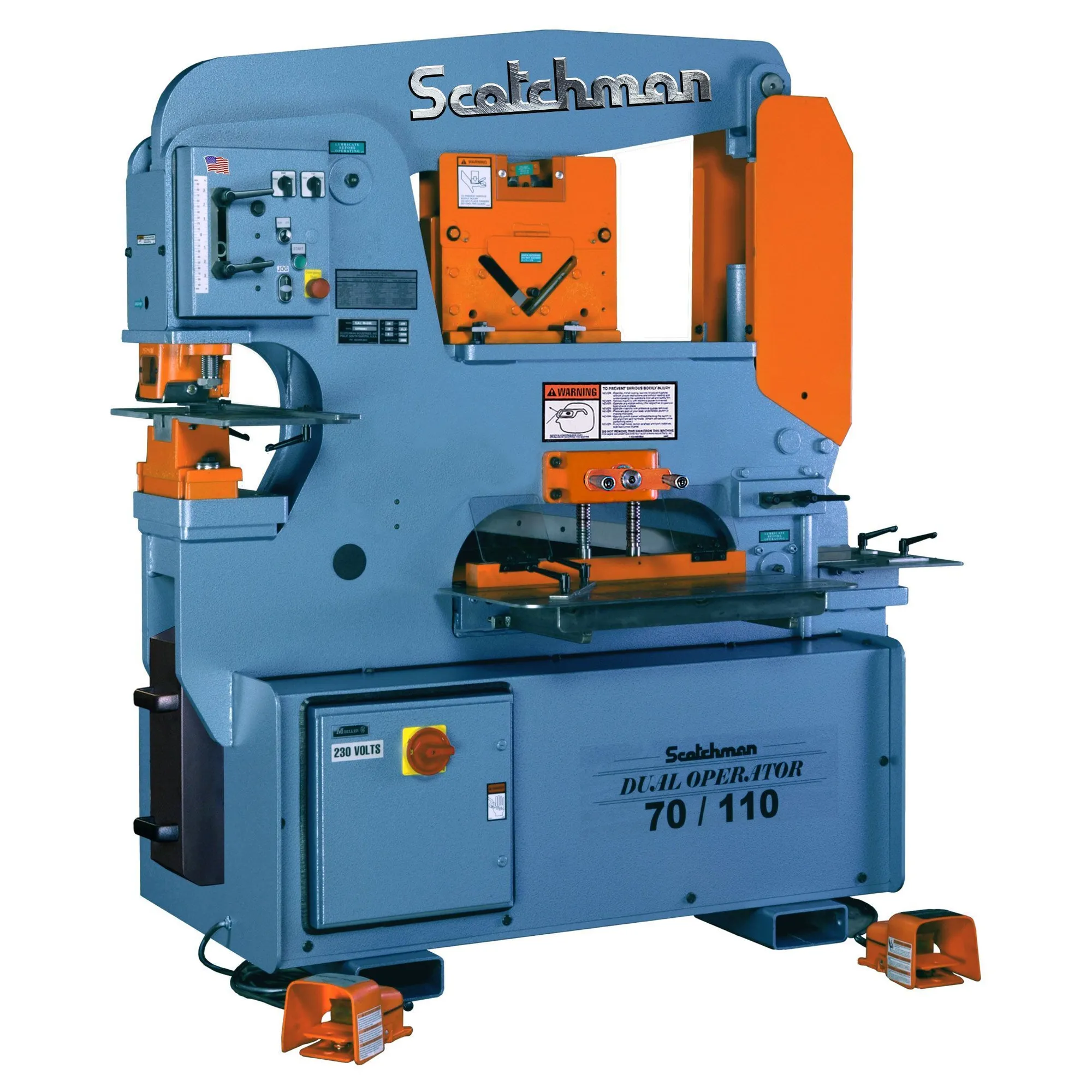

The Scotchman DO 70/110-24M dual operator has four built-in features including a 70-ton punch (1-1/16” in 3/4"), the largest capacity angle shear for a 70-ton on the market (6” x 6” x 1/2"), a 24” plate shear (1” x 6” up to 3/8” x 24”) and a rectangle notcher. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. Combining these features with the large tool table for quick change of optional tooling plus our best in the business, 3-year parts warranty makes the Scotchman DO 70/110-24M hydraulic ironworker an industry leader.
| Punch Tonnage | 70 T | 63,503 kg |
| Punch Max. Capacity | 1-1/8" in 3/4" | 1-1/8" in 3/4" |
| Flat Bar Shear | (Sabre Blade - Std) 1" x 6", 3/4" x 10", 1/2" x 14", 3/8" x 24" | (Sabre Blade - Std) 1" x 6", 3/4" x 10", 1/2" x 14", 3/8" x 24" |
| Flat Bar Shear - Tonnage | 110 T | 99,790.4 kg |
| Flat Bar Shear Length | 24" | 609.6 mm |
| Angle Shear 90° | 6" x 6" x 1/2" | 6" x 6" x 1/2" |
| Angle Shear 45° | (with Bar Shear) 3" x 3" x 3/8", 4" x 4" x 1/2" | (with Bar Shear) 3" x 3" x 3/8", 4" x 4" x 1/2" |
| Rod Shear - Round Rod (Max.) | 1/4" to 1-1/4", 9 Cav. | 1/4" to 1-1/4", 9 Cav. |
| Rod Shear - Square Rod (Max.) | 1/4" to 1", 1 Cav. | 1/4" to 1", 1 Cav. |
| Square Tube Shear | 1/2" to 2", 12 gauge | 1/2" to 2", 12 gauge |
| Unistrut Shear | Samples Required | Samples Required |
| Channel Shear | 2" to 6" Adj. | 2" to 6" Adj. |
| Rectangle Notcher | 3" x 5" x 3/8", 3" x 4" x 1/2" | 3" x 5" x 3/8", 3" x 4" x 1/2" |
| V Notcher | 3" x 3" x 3/8" / (90°) 6" x 6" x 5/16" | 3" x 3" x 3/8" / (90°) 6" x 6" x 5/16" |
| Pipe Notcher | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" |
| Notching in Leg of Channel | 6" to 10" | 6" to 10" |
| Brake - 12 inch | 65 T | 58,967.1 kg |
| Brake - 24 inch | 45 T | 40,823.4 kg |
| Open End Brake | Max. 1/4" x 6" Flat or Angle Iron | Max. 1/4" x 6" Flat or Angle Iron |
| Offset Die Holder | Max. 40 ton | Max. 40 ton |
| Picket Tool | 1/2", 3/4", 1", 16 gauge | 1/2", 3/4", 1", 16 gauge |
| Special Tooling | 4" Max. Dia. | 4" Max. Dia. |
| Throat Depth | 9" | 228.6 mm |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] | 3/4" Stroke [Punch Station] |
| Motor | 10 HP | 10 HP |
| Electrics | 220v, 1-Phase | 220v, 1-Phase |
| Hydraulics | 3,000/3,000 psi | 3,000/3,000 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 3,800 lb | 1,723.7 kg |
| Dimensions | L-65" x W-30" x H-72-1/8" | L-65" x W-30" x H-72-1/8" |
Optional Voltages:
013908: DO 70/110-24M - 10 hp 3 ph 208V
013910: DO 70/110-24M - 10 hp 3 ph 230V
013935: DO 70/110-24M - 10 hp 3 ph 460V
013920: DO 70/110-24M - 10 hp 1 ph, 220V
DO 70/110-24M - 3ph, 60hz Less Angle Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
Open End Brake
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48" Back Gauge
Laser Light
12" & 24" Brake (*Back Gauge sold separately.)
Rectangle Notcher
Channel Shear
Urethane Stripper
6" x 6" Die Holder
Offset Die Holder
Rod Shear
Unequal Leg Angle Blades
Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes
Unistrut Shear
Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
Open End Brake for Notcher End
24" x 5' Conveyor with Angle Iron Support attached to DO70/110
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Angle Iron Miter Guide
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Tool Table Extension includes Punch & Die Storage Drawer (65+Ton)
*Punches & Dies sold separately.
LED Light. Available on punch station and shear station.
