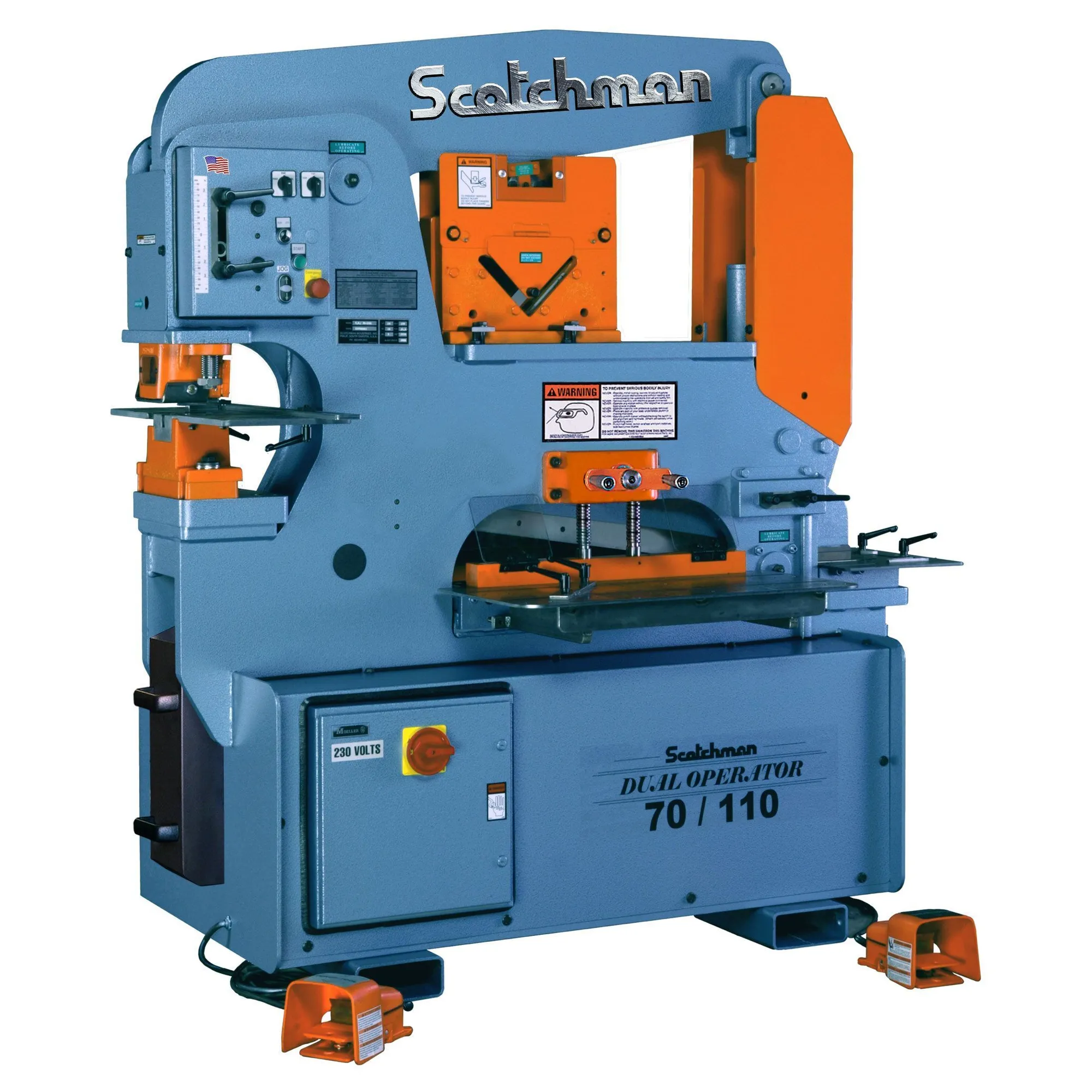

The Scotchman DO 70/110-24M dual operator has four built-in features including a 70-ton punch (1-1/16” in 3/4"), the largest capacity angle shear for a 70-ton on the market (6” x 6” x 1/2"), a 24” plate shear (1” x 6” up to 3/8” x 24”) and a rectangle notcher. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. Combining these features with the large tool table for quick change of optional tooling plus our best in the business, 3-year parts warranty makes the Scotchman DO 70/110-24M hydraulic ironworker an industry leader.
| Punch Tonnage | 70 T | 63,503 kg |
| Punch Max. Capacity | 1-1/8" in 3/4" | 1-1/8" in 3/4" |
| Flat Bar Shear | (Sabre Blade - Std) 1" x 6", 3/4" x 10", 1/2" x 14", 3/8" x 24" | (Sabre Blade - Std) 1" x 6", 3/4" x 10", 1/2" x 14", 3/8" x 24" |
| Flat Bar Shear - Tonnage | 110 T | 99,790.4 kg |
| Flat Bar Shear Length | 24" | 609.6 mm |
| Angle Shear 90° | 6" x 6" x 1/2" | 6" x 6" x 1/2" |
| Angle Shear 45° | (with Bar Shear) 3" x 3" x 3/8", 4" x 4" x 1/2" | (with Bar Shear) 3" x 3" x 3/8", 4" x 4" x 1/2" |
| Rod Shear - Round Rod (Max.) | 1/4" to 1-1/4", 9 Cav. | 1/4" to 1-1/4", 9 Cav. |
| Rod Shear - Square Rod (Max.) | 1/4" to 1", 1 Cav. | 1/4" to 1", 1 Cav. |
| Square Tube Shear | 1/2" to 2", 12 gauge | 1/2" to 2", 12 gauge |
| Unistrut Shear | Samples Required | Samples Required |
| Channel Shear | 2" to 6" Adj. | 2" to 6" Adj. |
| Rectangle Notcher | 3" x 5" x 3/8", 3" x 4" x 1/2" | 3" x 5" x 3/8", 3" x 4" x 1/2" |
| V Notcher | 3" x 3" x 3/8" / (90°) 6" x 6" x 5/16" | 3" x 3" x 3/8" / (90°) 6" x 6" x 5/16" |
| Pipe Notcher | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" |
| Notching in Leg of Channel | 6" to 10" | 6" to 10" |
| Brake - 12 inch | 65 T | 58,967.1 kg |
| Brake - 24 inch | 45 T | 40,823.4 kg |
| Open End Brake | Max. 1/4" x 6" Flat or Angle Iron | Max. 1/4" x 6" Flat or Angle Iron |
| Offset Die Holder | Max. 40 ton | Max. 40 ton |
| Picket Tool | 1/2", 3/4", 1", 16 gauge | 1/2", 3/4", 1", 16 gauge |
| Special Tooling | 4" Max. Dia. | 4" Max. Dia. |
| Throat Depth | 9" | 228.6 mm |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] | 3/4" Stroke [Punch Station] |
| Motor | 10 HP | 10 HP |
| Electrics | 460v, 3-Phase | 460v, 3-Phase |
| Hydraulics | 3,000/3,000 psi | 3,000/3,000 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 3,800 lb | 1,723.7 kg |
| Dimensions | L-65" x W-30" x H-72-1/8" | L-65" x W-30" x H-72-1/8" |
Optional Voltages:
013908: DO 70/110-24M - 10 hp 3 ph 208V
013910: DO 70/110-24M - 10 hp 3 ph 230V
013935: DO 70/110-24M - 10 hp 3 ph 460V
013920: DO 70/110-24M - 10 hp 1 ph, 220V
DO 70/110-24M - 3ph, 60hz Less Angle Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
