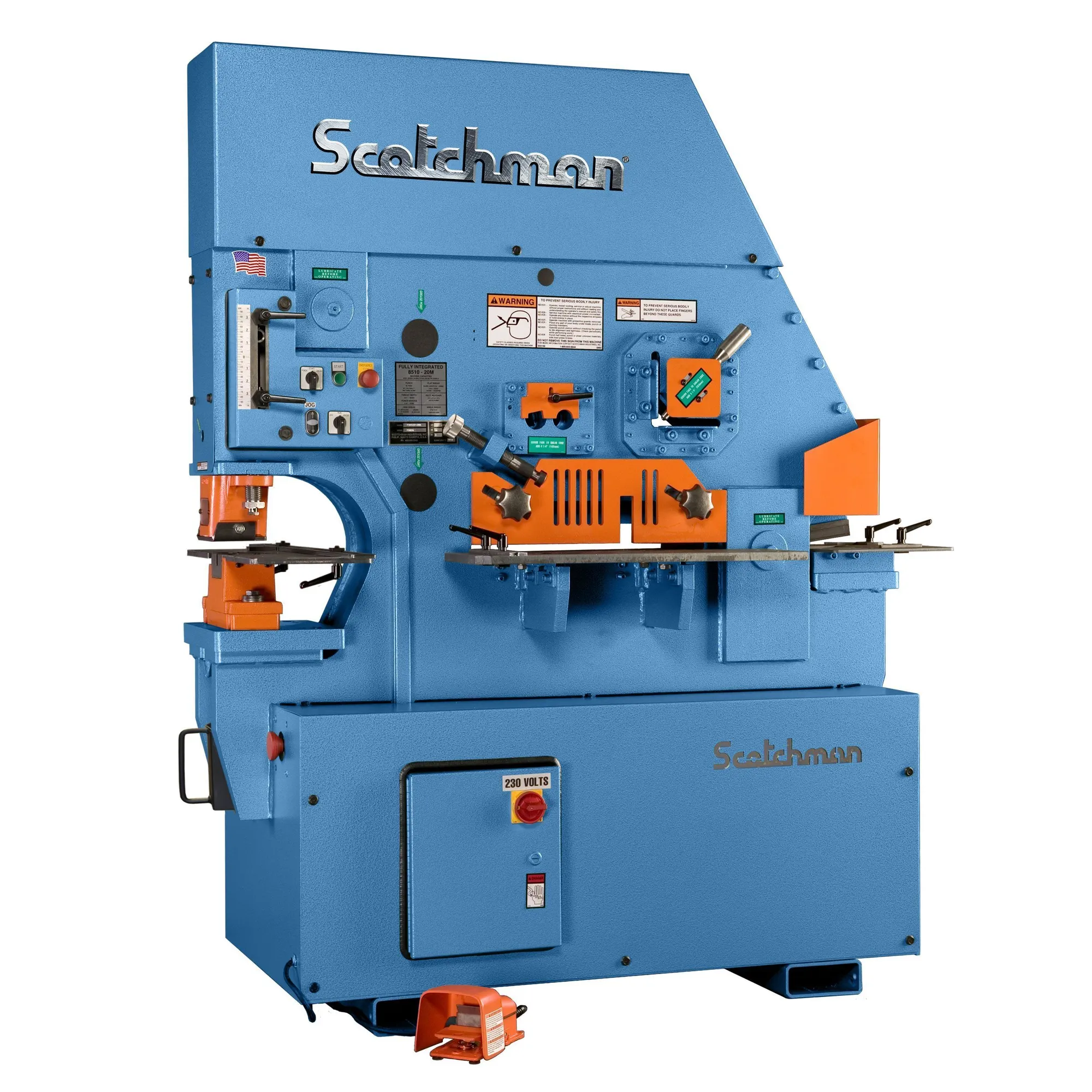

Scotchman Industries’ “Sleeping Giant” is our fully-integrated, FI 8510-20M hydraulic ironworker. This machine has five built-in work stations that include: 85 tons of punching capacity (1-1/16” in 1” 65,000 tensile mild steel), 20” wide flat bar shear (capable of shearing 1” x 12” and 3/4” x 20”), 6” x 6” x 1/2” crop off angle shear, round and square, solid rod shear and a 3” x 5” x 1/2” rectangle notcher. The FI 8510-20M hydraulic ironworker is 100% American-made and backed by Scotchman’s, best in the business, 3-year parts warranty.
| Punch Tonnage | 85 T | 77,110.8 kg |
| Punch Max. Capacity | 1-1/16" in 1" | 1-1/16" in 1" |
| Flat Bar Shear | 1" x 12", 3/4" x 20" | 1" x 12", 3/4" x 20" |
| Flat Bar Shear Length | 20" | 508 mm |
| Angle Shear 90° | 6" x 6" x 1/2" | 6" x 6" x 1/2" |
| Angle Shear 45° | 4" x 4" x 1/2" | 4" x 4" x 1/2" |
| Rod Shear - Round Rod (Max.) | 1-1/2" | 1-1/2" |
| Rod Shear - Square Rod (Max.) | 1-1/4" | 1-1/4" |
| Square Tube Shear | 1/2" to 2", 12 ga. | 1/2" to 2", 12 ga. |
| Strut Shear | Samples Required | Samples Required |
| Channel Shear | 2" to 6" Adj. | 2" to 6" Adj. |
| Rectangle Notcher | 3" x 5" x 1/2" | 3" x 5" x 1/2" |
| V Notcher | (90°) 3" x 3" x 1/2" / 6" x 6" x 5/16" | (90°) 3" x 3" x 1/2" / 6" x 6" x 5/16" |
| Pipe Notcher | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" |
| Brake - 12 inch | 85 T | 77,110.8 kg |
| Brake - 24 inch | 85 T | 77,110.8 kg |
| Open End Brake | Max. 1/4" x 5" Flat or Angle Iron | Max. 1/4" x 5" Flat or Angle Iron |
| Offset Die Holder | Max. 40 ton | Max. 40 ton |
| Picket Tool | 1/2", 3/4", 1", 16 gauge | 1/2", 3/4", 1", 16 gauge |
| Special Tooling | 4" Max. Dia. | 4" Max. Dia. |
| Throat Depth | 10" | 254 mm |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] | 3/4" Stroke [Punch Station] |
| Motor | 5 HP | 5 HP |
| Electrics | 460v, 3-Phase | 460v, 3-Phase |
| Hydraulics | 2,600 psi | 2,600 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 4,554 lb | 2,065.7 kg |
| Dimensions | L-67" x W-30" x H-77" | L-67" x W-30" x H-77" |
Optional Voltages:
015608: FI 8510-20M - 5 hp 3 ph 208V
015610: FI 8510-20M - 5 hp 3 ph 230v
015635: FI 8510-20M - 5 hp 3 ph 460V
015620: FI 8510-20M - 5 hp 1 ph, 220V
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional items - Call for price:
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48" Back Gauge
12" & 24" Brake (*Back Gauge sold separately.)
Urethane Stripper
6" x 6" Die Holder
Offset Die Holder
Rod Shear
Unequal Leg Angle Blades
Hydraulic Hold Down
Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes
Unistrut Shear
Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
24" x 5' Conveyor with Angle Iron Support attached to FI8510/20M
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
LED Light. Available on punch station and shear station.
