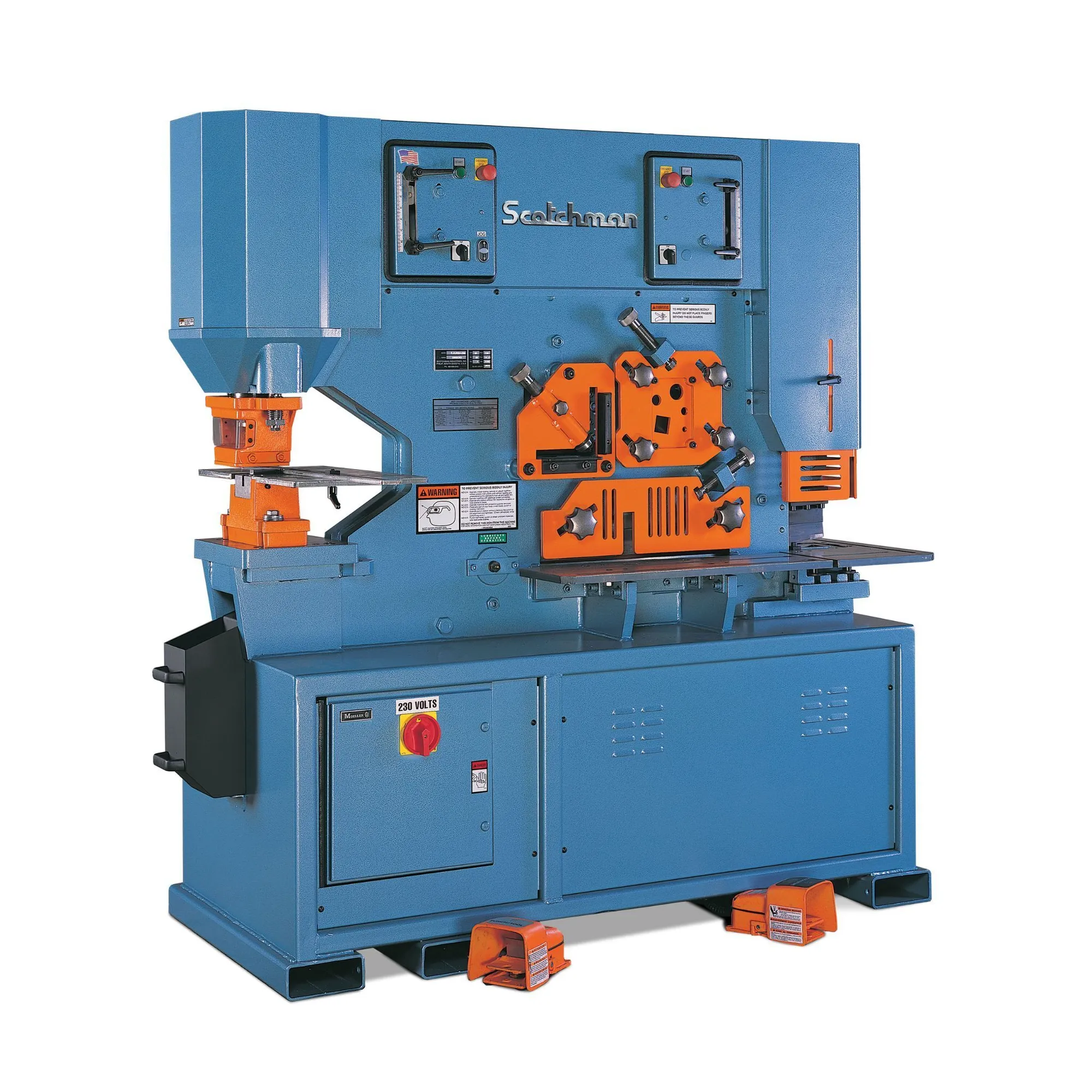

NEW SCOTCHMAN DO 8514-20M
Overview
The Scotchman DO8514-20M hydraulic ironworker is a fully-integrated ironworker machine with five built-in functions: 85-ton punch (1-1/16” in 1”), 6” x 6” x 1/2” crop off angle shear, round and square solid rod shear, 20” flat bar shear (that will shear a whopping 1” x 16” and 3/4” x 20”), plus a rectangle notcher.The most flexible feature this machine has is the rectangle notcher which can be removed and turned into several additional tools that include the following: an extra punch station, press brake, pipe notcher and/or a 3” x 3” V notcher. The DO 8514-20M hydraulic ironworker is 100% American-made and backed by Scotchman’s best in the business 3-year parts warranty.
Specs
Optional Voltages:
025908: DO 8514-20M - 10 hp 3 ph, 208V
025910: DO 8514-20M - 10 hp 3 ph, 230V
025935: DO 8514-20M - 10 hp 3 ph, 460V
025920: DO 8514-20M - 10 hp 1 ph, 220V
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Equipped With
Optional Items - Call for price:
Open End Brake
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48" Back Gauge
12" & 24" Brake (*Back Gauge sold separately.)
Urethane Stripper
6" x 6" Die Holder
Offset Die Holder
Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes
Channel Shear Blades
Optional Punch for Notcher End
Unistrut Shear
Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
Open End Brake for Notcher End
24" x 5' Conveyor with Angle Iron Support attached to FI8510/20M
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
LED Light. Available on punch station and shear station.
