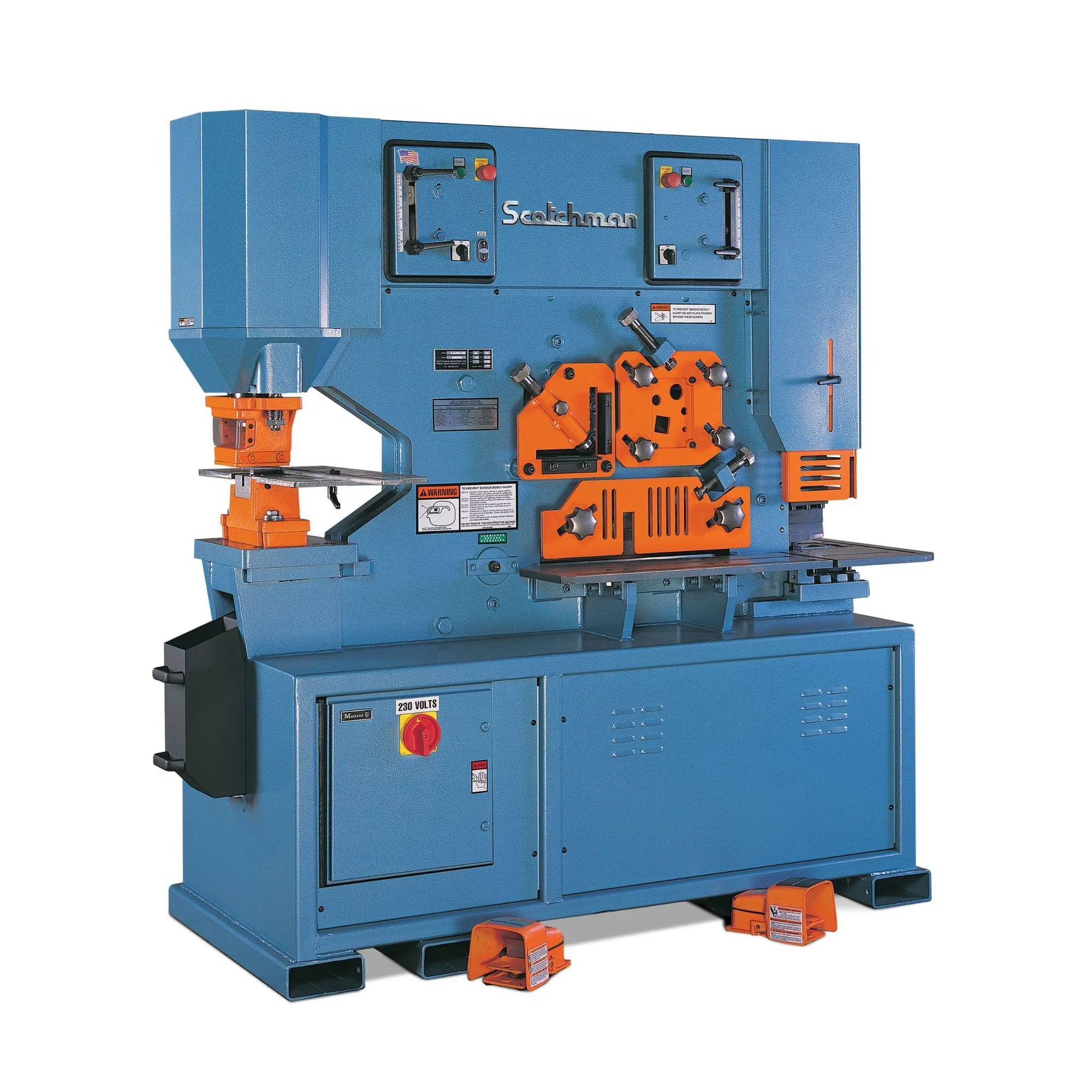

The Scotchman DO8514-20M hydraulic ironworker is a fully-integrated ironworker machine with five built-in functions: 85-ton punch (1-1/16” in 1”), 6” x 6” x 1/2” crop off angle shear, round and square solid rod shear, 20” flat bar shear (that will shear a whopping 1” x 16” and 3/4” x 20”), plus a rectangle notcher.The most flexible feature this machine has is the rectangle notcher which can be removed and turned into several additional tools that include the following: an extra punch station, press brake, pipe notcher and/or a 3” x 3” V notcher. The DO 8514-20M hydraulic ironworker is 100% American-made and backed by Scotchman’s best in the business 3-year parts warranty.
| Punch Tonnage | 85 T | 77,110.8 kg |
| Punch Max. Capacity | 1-1/16" in 1" | 1-1/16" in 1" |
| Punch Attachment (Notcher Station) | Throat Depth w/Punch Attachment: 50 ton, 1-1/4" in 1/2", 4-7/16" | Throat Depth w/Punch Attachment: 50 ton, 1-1/4" in 1/2", 4-7/16" |
| Flat Bar Shear | 1" x 16", 3/4" x 20" | 1" x 16", 3/4" x 20" |
| Flat Bar Shear Length | 20" | 508 mm |
| Angle Shear 90° | 6" x 6" x 1/2" | 6" x 6" x 1/2" |
| Angle Shear 45° | (with Bar Shear) 4" x 4" x 1/2" | (with Bar Shear) 4" x 4" x 1/2" |
| Rod Shear - Round Rod (Max.) | 1/2", 3/4", 1", 1-1/2" | 1/2", 3/4", 1", 1-1/2" |
| Rod Shear - Square Rod (Max.) | 1-1/2" | 1-1/2" |
| Square Tube Shear | 1/2" to 2", 12 gauge | 1/2" to 2", 12 gauge |
| Strut Shear | Samples Required | Samples Required |
| Channel Shear | 2" to 6" | 2" to 6" |
| Rectangle Notcher | 2" x 4" x 1/2" | 2" x 4" x 1/2" |
| V Notcher | 90° (Punch Station): 6" x 6" x 5/16" / 90° (Notcher Station): 3" x 3" x 1/2" | 90° (Punch Station): 6" x 6" x 5/16" / 90° (Notcher Station): 3" x 3" x 1/2" |
| Pipe Notcher | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" |
| Brake - 12 inch | 85 T | 77,110.8 kg |
| Brake - 24 inch | 85 T | 77,110.8 kg |
| Open End Brake | 5" x 5/8" | 5" x 5/8" |
| Offset Die Holder | Max. 40 ton | Max. 40 ton |
| Special Tooling | 4" Max. Dia. | 4" Max. Dia. |
| Throat Depth | 14" | 355.6 mm |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] | 3/4" Stroke [Punch Station] |
| Motor | 10 HP | 10 HP |
| Electrics | 230v, 3-Phase | 230v, 3-Phase |
| Hydraulics | 3,350/3,800 psi | 3,350/3,800 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 5,504 lb | 2,496.6 kg |
| Dimensions | L-70" x W-30" x H-77" | L-70" x W-30" x H-77" |
Optional Voltages:
025908: DO 8514-20M - 10 hp 3 ph, 208V
025910: DO 8514-20M - 10 hp 3 ph, 230V
025935: DO 8514-20M - 10 hp 3 ph, 460V
025920: DO 8514-20M - 10 hp 1 ph, 220V
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
Open End Brake
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48" Back Gauge
12" & 24" Brake (*Back Gauge sold separately.)
Urethane Stripper
6" x 6" Die Holder
Offset Die Holder
Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes
Channel Shear Blades
Optional Punch for Notcher End
Unistrut Shear
Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
Open End Brake for Notcher End
24" x 5' Conveyor with Angle Iron Support attached to FI8510/20M
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
LED Light. Available on punch station and shear station.
