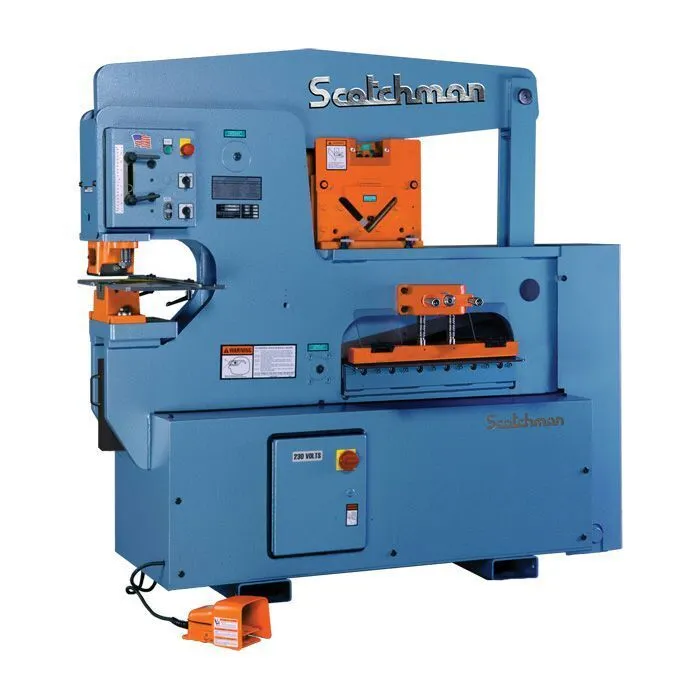

The Scotchman 9012-24M has a 90-ton Punch Station capable of punching a 1-1/16” hole in 1” thick, 65,000 tensile mild steel. The Flat Bar Shear is 24” wide and is supplied with bar shear blades that can be rotated four times for maximum blade life. The Angle Shear capacity on this machine is 6” x 6” x 1/2”; and like all Scotchman angles shears, it is designed to give a distortion free cut.
| Punch Tonnage | 90 T | 81,646.7 kg |
| Punch Max. Capacity | 1-1/8" in 1" | 1-1/8" in 1" |
| Flat Bar Shear | 1" x 8", 3/4" x 12", 1/2" x 16", 1/4" x 24" | 1" x 8", 3/4" x 12", 1/2" x 16", 1/4" x 24" |
| Flat Bar Shear Length | 24" | 609.6 mm |
| Angle Shear 90° | 6" x 6" x 1/2" | 6" x 6" x 1/2" |
| Angle Shear 45° | (with Bar Shear) 3" x 3" x 3/8", 4" x 4" x 1/2" | (with Bar Shear) 3" x 3" x 3/8", 4" x 4" x 1/2" |
| Rod Shear - Round Rod (Max.) | 1/4" to 1-1/4", 9 Cav. | 1/4" to 1-1/4", 9 Cav. |
| Rod Shear - Square Rod (Max.) | 1/4" to 1", 1 Cav. | 1/4" to 1", 1 Cav. |
| Square Tube Shear | 1/2" to 2", 12 ga. | 1/2" to 2", 12 ga. |
| Unistrut Shear | Samples Required | Samples Required |
| Channel Shear | 2" to 6" Adj. | 2" to 6" Adj. |
| Rectangle Notcher | 2" x 2-1/2" x 3/8" | 2" x 2-1/2" x 3/8" |
| V Notcher | 6" x 6" x 5/16" (90°) | 6" x 6" x 5/16" (90°) |
| Pipe Notcher | Schedule 40 I.D.: 3/4" 1" 1-1/4" 1-1/2" 2" | Schedule 40 I.D.: 3/4" 1" 1-1/4" 1-1/2" 2" |
| Brake - 12 inch | 50 T | 45,359.3 kg |
| Brake - 24 inch | 40 T | 36,287.4 kg |
| Open End Brake | Max. 1/4" x 5" Flat or Angle Iron | Max. 1/4" x 5" Flat or Angle Iron |
| Offset Die Holder | Max. 40 ton | Max. 40 ton |
| Picket Tool | 1/2", 3/4", 1", 16 ga. | 1/2", 3/4", 1", 16 ga. |
| Special Tooling | 4" Max. Dia. | 4" Max. Dia. |
| Saber Blade | 1/2" x 22", 3/8" x 24" | 1/2" x 22", 3/8" x 24" |
| Throat Depth | 12" | 304.8 mm |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] | 3/4" Stroke [Punch Station] |
| Motor | 5 HP | 5 HP |
| Electrics | 220v, 1-Phase | 220v, 1-Phase |
| Hydraulics | 2,600 psi | 2,600 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 4,204 lb | 1,906.9 kg |
| Dimensions | L-76" x W-26" x H-70" | L-76" x W-26" x H-70" |
Optional Voltages:
030008: 9012-24M - 5 hp 3 ph, 208V
030010: 9012-24M - 5 hp 3 ph, 230V
030035: 9012-24M - 5 hp 3 ph, 460V
030020: 9012-24M - 5 hp 1ph , 220V
9012-24M - 3ph, 60hz Less Angle Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
Open End Brake
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48" Back Gauge
Laser Light
12" & 24" Brake (*Back Gauge sold separately.)
Rectangle Notcher
Channel Shear
Urethane Stripper
6" x 6" Die Holder
Offset Die Holder
Rod Shear
Unequal Leg Angle Blades
Hydraulic Hold Down
Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes
Unistrut Shear
Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
24" x 5' Conveyor with Angle Iron Support attached to DO70/110
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Angle Iron Miter Guide
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Double Tube Punch. Custom built double tube punch.
Tool Table Extension includes Punch & Die Storage Drawer (65+Ton)
*Punches & Dies sold separately.
LED Light. Available on punch station and shear station.
