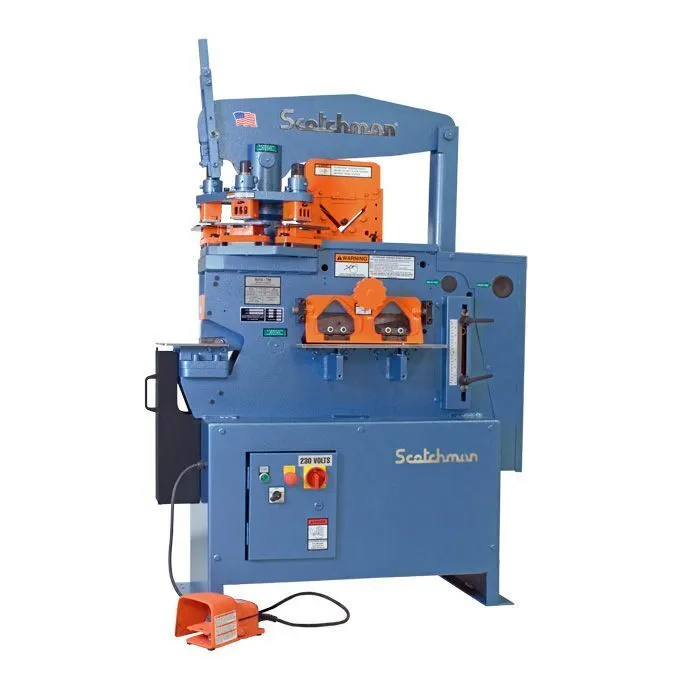

The 5014-ET from Scotchman Industries is the world’s first and only 50-ton hydraulic ironworker with a 3-station turret. This hydraulic ironworker features 50 tons of pressure and has the ability to punch a 13/16″ hole in a 3/4″ plate and comes standard with an angle shear, 14” flat bar shear, and rectangle notcher. The 5014-ET ironworker is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.
| Punch Tonnage | 50 T | 45,359.3 kg |
| Punch Max. Capacity | 1-1/4" in 1/2", 13/16" in 3/4" | 1-1/4" in 1/2", 13/16" in 3/4" |
| Flat Bar Shear | 3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14" | 3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14" |
| Flat Bar Shear Length | 14" | 355.6 mm |
| Angle Shear 90° | 4" x 4" x 3/8" | 4" x 4" x 3/8" |
| Angle Shear 45° | 2" x 2" x 3/8" | 2" x 2" x 3/8" |
| Rod Shear - Round Rod (Max.) | 1/4" to 1", 5 Cavity, 7/16", 9/16" 5/8", 3/4", 1" | 1/4" to 1", 5 Cavity, 7/16", 9/16" 5/8", 3/4", 1" |
| Rod Shear - Square Rod (Max.) | 1/4" to 3/4", 1 Cavity, 3/4" | 1/4" to 3/4", 1 Cavity, 3/4" |
| Square Tube Shear | 1/2" to 1", 12 ga. | 1/2" to 1", 12 ga. |
| Unistrut Shear | Samples Required | Samples Required |
| Rectangle Notcher | 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" x 3/8" | 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" x 3/8" |
| V Notcher | 6" x 6" x 1/8", 3" x 3" x 1/4" (90°) | 6" x 6" x 1/8", 3" x 3" x 1/4" (90°) |
| Pipe Notcher | 3/4", 1", 1-1/4", 1-1/2", 2" | 3/4", 1", 1-1/4", 1-1/2", 2" |
| Brake - 8 inch | 25 T | 22,679.6 kg |
| Brake - 12 inch | 25 T | 22,679.6 kg |
| Open End Brake | Max. 1/4" x 3" Flat or Angle Iron | Max. 1/4" x 3" Flat or Angle Iron |
| Picket Tool | 1/2", 3/4", 1", 16 gauge | 1/2", 3/4", 1", 16 gauge |
| Special Tooling | 2-1/4" Max. Dia. | 2-1/4" Max. Dia. |
| Saber Blade | Optional: 1/2" x 10", 3/8" x 12" | Optional: 1/2" x 10", 3/8" x 12" |
| Throat Depth | 4" | 101.6 mm |
| Strokes Per Minute in Light Material | [Punch Station] 1/4" stroke | [Punch Station] 1/4" stroke |
| Strokes Per Minute in Heavy Material | [Punch Station] 3/4" stroke | [Punch Station] 3/4" stroke |
| Electrics | 3-Phase, 60hz | 3-Phase, 60hz |
| Hydraulics | 2350 psi | 2350 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 1,580 lb | 716.7 kg |
| Dimensions | L-48" x W-23" x H-70" | L-48" x W-23" x H-70" |
Optional Voltages:
348022: 5014-ET - 3 hp 3 ph, 208V
348024: 5014-ET - 3 hp 3 ph, 230V
348027: 5014-ET - 3 hp 3 ph, 460V
348025: 5014-ET - 5 hp 1ph , 220V
5014-ET - 3ph, 60hz Less Angle Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
