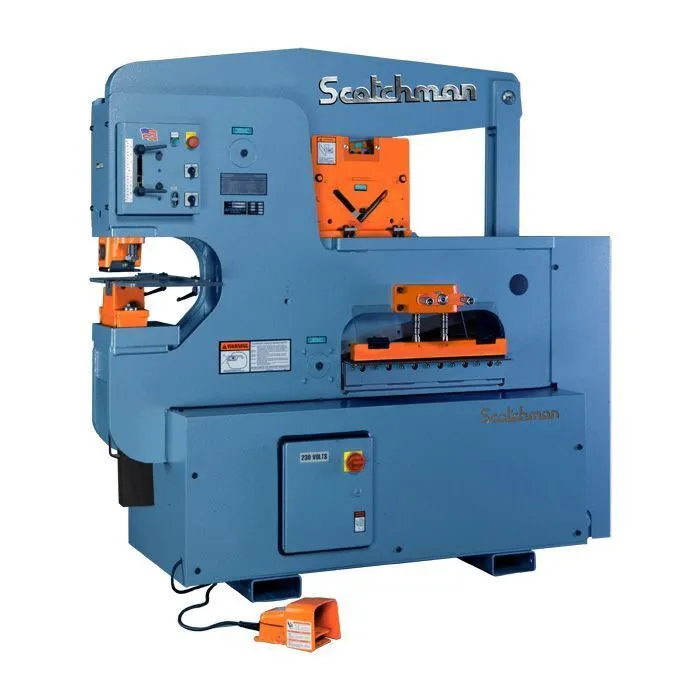

The 120 Ton Scotchman 12012-24M hydraulic ironworker can punch a 1-1/2” hole through 1” plate, its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear. The tool table design is a bonus feature that allows the operator to quickly and easily mount optional tooling making this ironworker adaptable to your specific job. The Scotchman 12012-24M is American-made and backed by our best-in-the-business 3-year parts warranty.
| Punch Tonnage | 120 T | 108,862.3 kg |
| Punch Max. Capacity | 1-1/2" in 1" | 1-1/2" in 1" |
| Flat Bar Shear | 1" x 12", 3/4" x 20", 1/2" x 24" | 1" x 12", 3/4" x 20", 1/2" x 24" |
| Flat Bar Shear Length | 24" | 609.6 mm |
| Angle Shear 90° | 6 x 6 x 1/2 in. | 6 x 6 x 1/2 in. |
| Angle Shear 45° | with Bar Shear: 3" x 3" x 3/8", 4" x 4" x 1/2" | with Bar Shear: 3" x 3" x 3/8", 4" x 4" x 1/2" |
| Rod Shear - Round Rod (Max.) | 1/4" to 1-1/4", 9 Cav. | 1/4" to 1-1/4", 9 Cav. |
| Rod Shear - Square Rod (Max.) | 1/4" to 1", 1 Cav. | 1/4" to 1", 1 Cav. |
| Square Tube Shear | 1/2" to 2", 12 ga. | 1/2" to 2", 12 ga. |
| Unistrut Shear | Samples Required | Samples Required |
| Channel Shear | 2" to 6" Adj. | 2" to 6" Adj. |
| Rectangle Notcher | 2 x 2-1/2 x 3/8 in. | 2 x 2-1/2 x 3/8 in. |
| V Notcher | 6" x 6" x 5/16" | 6" x 6" x 5/16" |
| Pipe Notcher | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" |
| Brake - 12 inch | 83 T | 75,296.4 kg |
| Brake - 24 inch | 65 T | 58,967.1 kg |
| Open End Brake | Max. 1/4" x 5" Flat or Angle Iron | Max. 1/4" x 5" Flat or Angle Iron |
| Offset Die Holder | Max. 40 ton | Max. 40 ton |
| Picket Tool | 1/2" 3/4" 1", 16 ga. | 1/2" 3/4" 1", 16 ga. |
| Special Tooling | 4" Max. Dia. | 4" Max. Dia. |
| Throat Depth | 12" | 304.8 mm |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] | 3/4" Stroke [Punch Station] |
| Motor | 5 HP | 5 HP |
| Electrics | 230v, 3-Phase | 230v, 3-Phase |
| Hydraulic Pump Size (GPM) | 2,600 psi | 2,600 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 5,204 lb | 2,360.5 kg |
| Dimensions | L-77" x W-28" x H-73" | L-77" x W-28" x H-73" |
Optional Voltages:
080708: 12012-24M - 5 hp 3 ph 208V
080710: 12012-24M - 5 hp 3 ph 230V
080735: 12012-24M - 5 hp 3 ph 460V
080720: 12012-24M - 5 hp 1 ph 220V
12012-24M - 3ph, 60hz Less Angle Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
