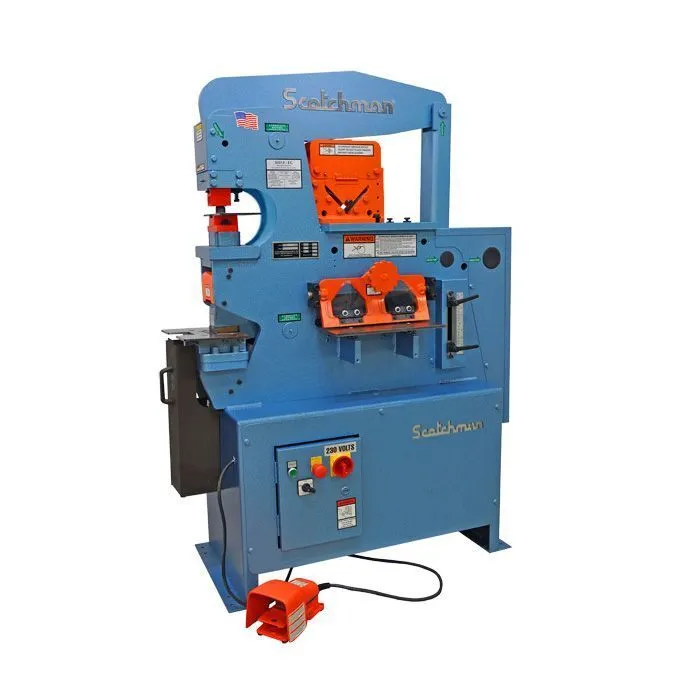

This SCOTCHMAN Hydraulic Ironworker 50514-EC is 220v, 1 phase, 5hp and equipped with FREE Punch and Die Package.The versatile 50514-EC hydraulic ironworker from Scotchman Industries is now better than ever with the addition of a 5th work station. The 50514-EC is an all-around workhorse and comes standard with a 50-ton punch capable of producing a 13/16” hole in 3/4” material, a 4” x 4”x 3/8” angle shear, a 14” flat bar shear, a built-in rectangle notcher, and a fifth station capable of housing an optional pipe notcher. Proudly made in the USA.
| Punch Tonnage | 50 T | 45,359.3 kg |
| Punch Max. Capacity | 1-1/4" in 1/2", 13/16" in 3/4" | 1-1/4" in 1/2", 13/16" in 3/4" |
| Flat Bar Shear | 3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14" | 3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14" |
| Flat Bar Shear Length | 14" | 355.6 mm |
| Angle Shear 90° | 4 x 4 x 3/8 in. | 4 x 4 x 3/8 in. |
| Angle Shear 45° | 2 x 2 x 3/8 in. | 2 x 2 x 3/8 in. |
| Rod Shear - Round Rod (Max.) | 1/4" to 1", 5 Cavity, 7/16", 9/16", 5/8", 3/4", 1" | 1/4" to 1", 5 Cavity, 7/16", 9/16", 5/8", 3/4", 1" |
| Rod Shear - Square Rod (Max.) | 1/4" to 3/4", 1 Cavity, 3/4" | 1/4" to 3/4", 1 Cavity, 3/4" |
| Square Tube Shear | 1/2" to 1", 12 ga. | 1/2" to 1", 12 ga. |
| Unistrut Shear | Samples Required | Samples Required |
| Rectangle Notcher | 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" X 3/8" | 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" X 3/8" |
| V Notcher | 6" x 6" x 1/8", 3" x 3" X 1/4" (90°) | 6" x 6" x 1/8", 3" x 3" X 1/4" (90°) |
| Pipe Notcher | 3/4", 1" 1-1/4" 1-1/2", 2" (Schedule 40 I.D.) | 3/4", 1" 1-1/4" 1-1/2", 2" (Schedule 40 I.D.) |
| Brake - 8 inch | 30 T | 27,215.6 kg |
| Brake - 12 inch | 25 T | 22,679.6 kg |
| Open End Brake | Max. 1/4" x 3" Flat or Angle Iron | Max. 1/4" x 3" Flat or Angle Iron |
| Picket Tool | 1/2", 3/4", 1", 16 Gauge | 1/2", 3/4", 1", 16 Gauge |
| Special Tooling | 2-1/4" Max. Dia. | 2-1/4" Max. Dia. |
| Saber Blade | 1/2" x 10", 3/8" x 12" * | 1/2" x 10", 3/8" x 12" * |
| Throat Depth | 6" | 152.4 mm |
| Strokes Per Minute in Light Material | 1/4" stroke [Punch Station] | 1/4" stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" stroke [Punch Station] | 3/4" stroke [Punch Station] |
| Motor | 5 HP | 5 HP |
| Electrics | 220v, 1-Phase | 220v, 1-Phase |
| Hydraulics | 2350 psi | 2350 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 1,515 lb | 687.2 kg |
| Dimensions | L-47 x W-29 x H-59 in. | L-47 x W-29 x H-59 in. |
* Optional
Optional Models:
560052: 50514-EC - 3 hp 3 ph, 208V
560054: 50514-EC - 3 hp 3 ph, 230V
560057: 50514-EC - 3 hp 3 ph, 460V
560055: 50514-EC - 5 hp 1ph , 220V
3ph, 60hz Less Angel Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
6" Brake
8" Brake
12" Brake
Open End Brake
Pipe Notcher
90 degree V-Notcher
Rod Shear
Tube Shear
Picket Tool
Punch Gauging Table with Fence & Scale
48" Back Gauge
Shear Table with Miter Fence
4" Angle Miter Guide
Laser Light
Brake Table with Scale and Squaring Arm, 12" Brake Only
Brake Length Gauge with Scale (sold separately) - 8" & 12" Brakes
Unistrut Shear
14" x 5' Conveyor with Angle Iron Support attached to 5014-TM
Multi-Loc Punch Gauging Table 40" or 90" Extensions Available
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Tool Table Extension includes Punch & Die Drawer (50-ton)
*Punches & Dies sold separately.
Weld Coupon Bender
LED Light
Snap Ring Removal Tool
Jog Control
