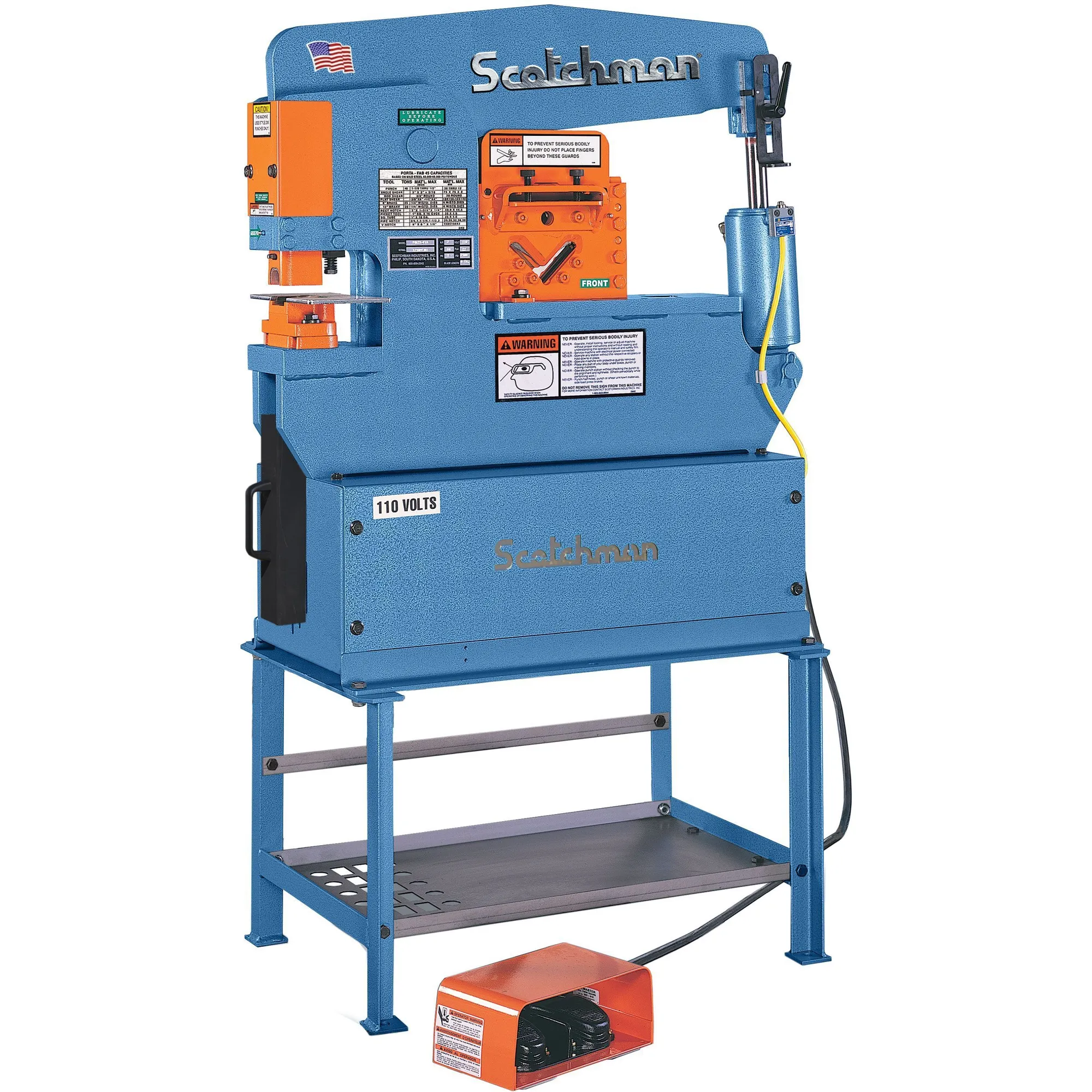

The Scotchman Porta Fab 45 hydraulic ironworker is portable, versatile, and designed for in-plant or on-the-job operation and uses 110-volt power for added convenience.The PF45 features a 45-ton punching capacity and can punch 1-1/8" through 1/2" material. This machine comes standard with a 3-in-1 combination tool consisting of a 3/8" x 6" flat bar shear, 3/4" rod shear, and a 3" x 3" x 5/16" angle shear.This is an American-made ironworker.
| Punch Max. Capacity | 45 Ton, 1-1/8" in 1/2" | 45 Ton, 1-1/8" in 1/2" |
| Flat Bar Shear | 1/2" x 4", 3/8" x 6" | 1/2" x 4", 3/8" x 6" |
| Flat Bar Shear Length | 6" | 152.4 mm |
| Angle Shear 90° | 3 x 3 x 5/16 in. | 3 x 3 x 5/16 in. |
| Angle Shear 45° | 2 x 2 x 1/4 in. | 2 x 2 x 1/4 in. |
| Rod Shear - Round Rod (Max.) | 1/4" to 1", 5 Cav. (7/16", 9/16" , 5/8", 3/4", 1") | 1/4" to 1", 5 Cav. (7/16", 9/16" , 5/8", 3/4", 1") |
| Rod Shear - Square Rod (Max.) | 1/4" to 3/4", 1 Cav. | 1/4" to 3/4", 1 Cav. |
| Round Rod | 3/4 in. | 3/4 in. |
| Square Tube Shear | 1/2" to 1", 12 ga. | 1/2" to 1", 12 ga. |
| Strut Shear | Samples Required | Samples Required |
| Rectangle Notcher | 2 x 1-3/4 x 1/4 in. | 2 x 1-3/4 x 1/4 in. |
| V Notcher | 6 x 6 x 1/8 in. (90°) | 6 x 6 x 1/8 in. (90°) |
| Pipe Notcher | 3/4", 1", 1-1/4", 1-1/2", 2" (Schedule 40) | 3/4", 1", 1-1/4", 1-1/2", 2" (Schedule 40) |
| Brake - 8 inch | 25 T | 22,679.6 kg |
| Brake - 12 inch | 20 T | 18,143.7 kg |
| Open End Brake | Max. 1/4" x 3" Flat or Angle Iron | Max. 1/4" x 3" Flat or Angle Iron |
| Picket Tool | 1/2", 3/4", 1", 16 ga. | 1/2", 3/4", 1", 16 ga. |
| Special Tooling | 2-1/4" Max. Dia. | 2-1/4" Max. Dia. |
| Throat Depth | 4.25" | 107.95 mm |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] | 3/4" Stroke [Punch Station] |
| Motor | 2 HP | 2 HP |
| Electrics | 1-Phase, 110v (220v - Optional) | 1-Phase, 110v (220v - Optional) |
| Hydraulics | 2500 psi | 2500 psi |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Dimensions | 17.63 x 35.75 x 38.75 in. | 17.63 x 35.75 x 38.75 in. |
| Weight | 724 lbs. | 724 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
