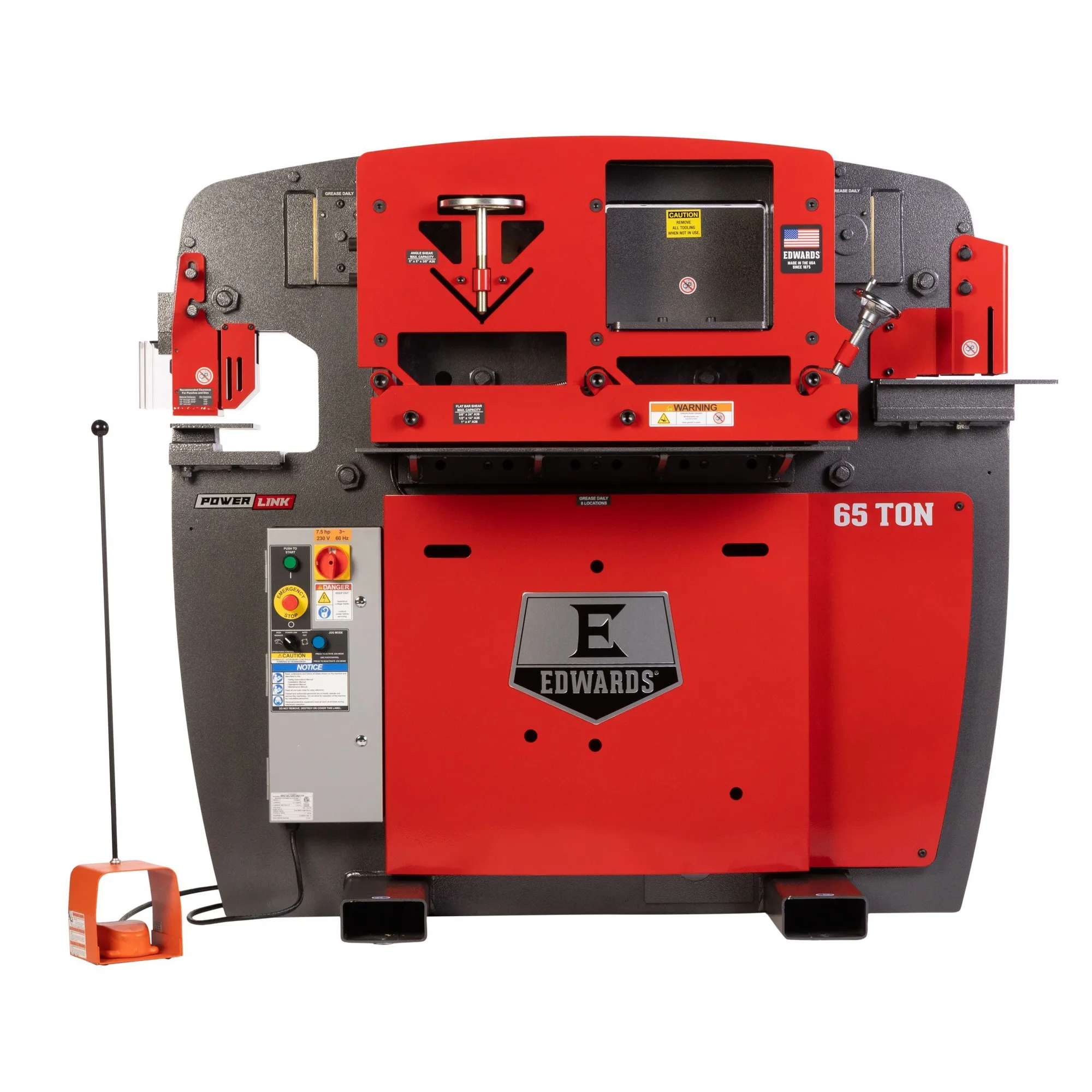

The five workstations of the Edwards 65 Ton JAWS Ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs. Standard features include a Punch Assembly with Pedestal Die Table, 24" wide Flat Bar Shear, Angle Shear, Coper Notcher and a universal open tooling station designed for optional Tooling Accessories.
| Punch Tonnage | 65 T | 58,967.1 kg |
| Punch Max. Capacity | 1-1/16 in. Dia. in 3/4 in. A36 | 1-1/16 in. Dia. in 3/4 in. A36 |
| Punch - Work Height | 36.563" | 928.69 mm |
| Punch - Throat Depth | 9.75" | 247.65 mm |
| Punch - Open Height | 8.75 | 8.75 |
| Punch - Shut Height | 6-15/16 in. | 6-15/16 in. |
| Punch - Stroke | 1-13/16 in. | 1-13/16 in. |
| Flat Bar Shear | Max. Width: 3/8 x 24, 1/2 x 14, 1 x 4 in. | Max. Width: 3/8 x 24, 1/2 x 14, 1 x 4 in. |
| Flat Bar Shear - Max. Round Capacity | 1 in. | 1 in. |
| Flat Bar Shear - Max. Square Capacity | 1 in. | 1 in. |
| Flat Bar Shear - Work Height | 34-1/2 in. | 34-1/2 in. |
| Open Cavity - Height | 8.75" | 222.25 mm |
| Open Cavity - Width | 12" | 304.8 mm |
| Open Cavity - Work Height | 43" | 1,092.2 mm |
| Angle Shear - Maximum Capacity | Max. Size: 5 x 5 x 3/8 in. | Max. Size: 5 x 5 x 3/8 in. |
| Angle Shear - Work Height | 43-1/2 in. | 43-1/2 in. |
| Coper Notcher - Max. Capacity | 2-1/2 x 5 x 3/8 in. | 2-1/2 x 5 x 3/8 in. |
| Coper Notcher - Work Height | 39-1/2 in. | 39-1/2 in. |
| Motor | 7.5 HP | 7.5 HP |
| Electrics | 575v, 3-Phase | 575v, 3-Phase |
| Hydraulic Pump Size (GPM) | 10-1/2 - 2 stage | 10-1/2 - 2 stage |
| Oil Capacity/Reservoir | 17 gal | 64.4 L |
| Cylinder | 3-1/2 ram | 3-1/2 ram |
| Valve Pressure | 3500 psi | |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 4,750 lb | 2,154.6 kg |
| Dimensions | H 57 x W 62-1/8 x D 45 in. | H 57 x W 62-1/8 x D 45 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Models:
ED9-IW65-3P230-A: 65 Ton Ironworker 3 Phase, 230 Volt with PowerLink
ED9-IW65-3P208-A: 65 Ton Ironworker 3 Phase, 208 Volt with PowerLink
ED9-IW65-1P230-A: 65 Ton Ironworker 1 Phase, 230 Volt with PowerLink
ED9-IW65-3P460-A: 65 Ton Ironworker 3 Phase, 460 Volt with PowerLink
ED9-IW65-3P575-A: 65 Ton Ironworker 3 Phase, 575 Volt with PowerLink
Optional Items - Call for price:
Optional Attachments:
ED9-PRB12: Press Brake Tooling 12" Press Brake
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller
